Power Steering Gear Box: Components

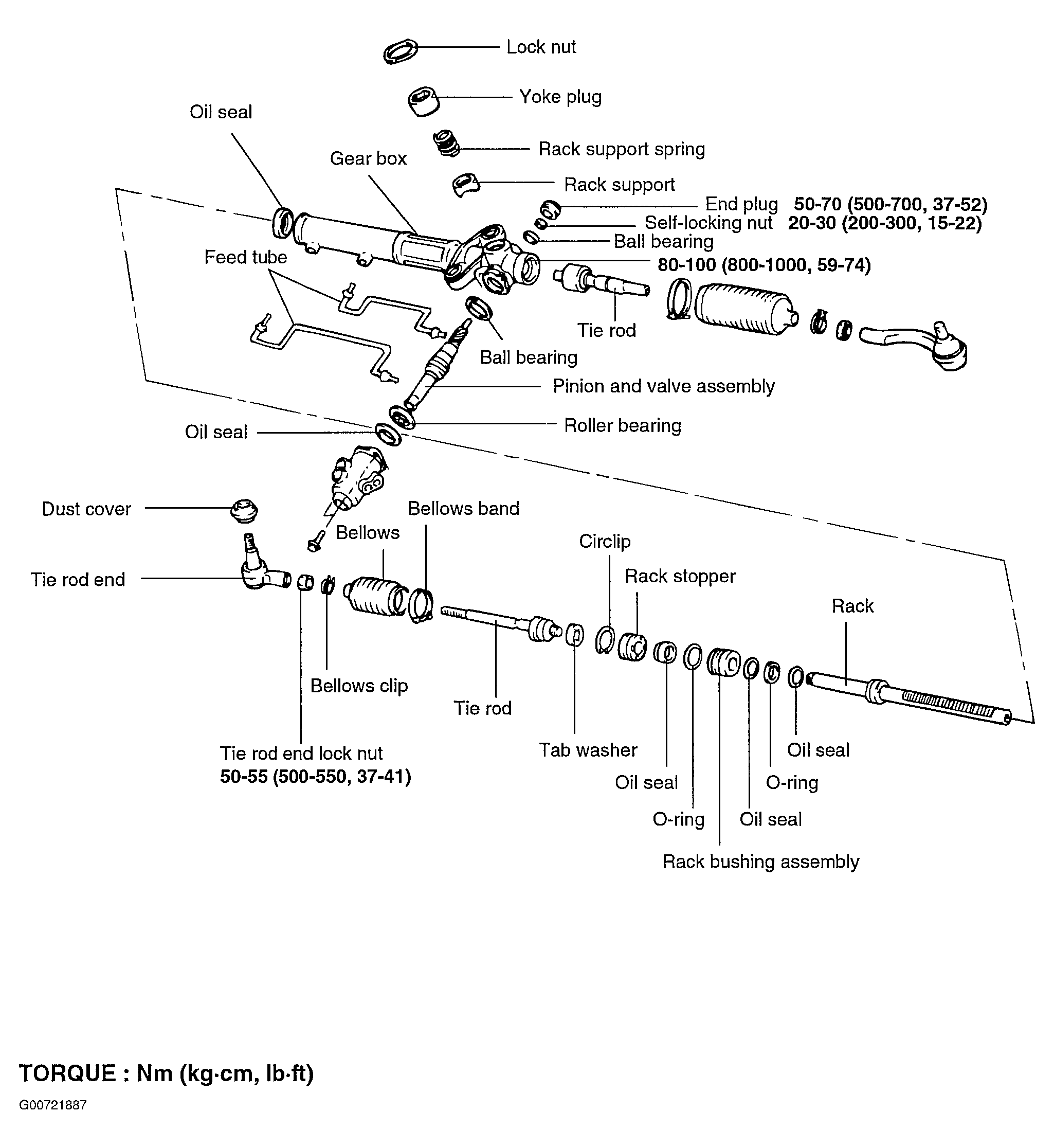

Fig 1: Identifying Power Steering Gear Box Components

G00721887

Courtesy of HYUNDAI MOTOR CO.
