Trunk Lid Release Solenoid Connector End View

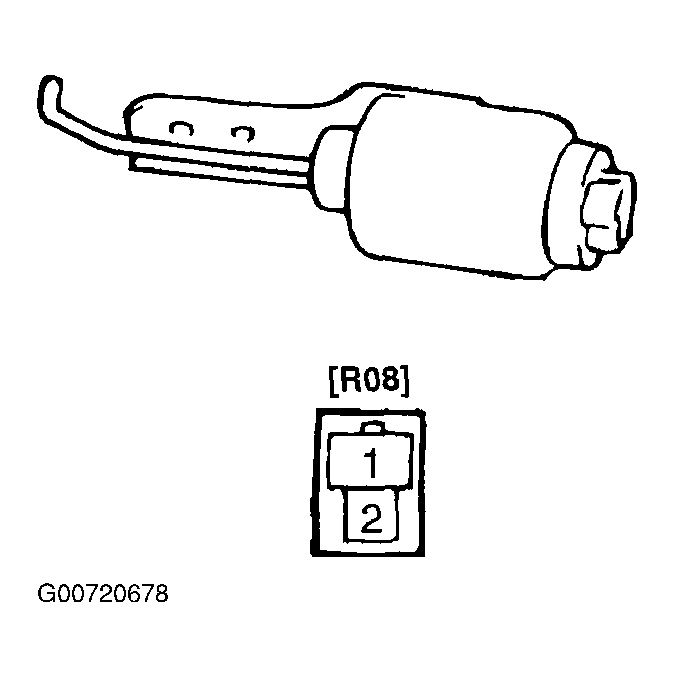

Fig 1: Trunk Lid Release Solenoid Connector End View

G00720678

Courtesy of HYUNDAI MOTOR AMERICA
