Inspection Procedure For Trouble Symptoms
>>
Inspection Procedure 4
Inspection Procedure 4

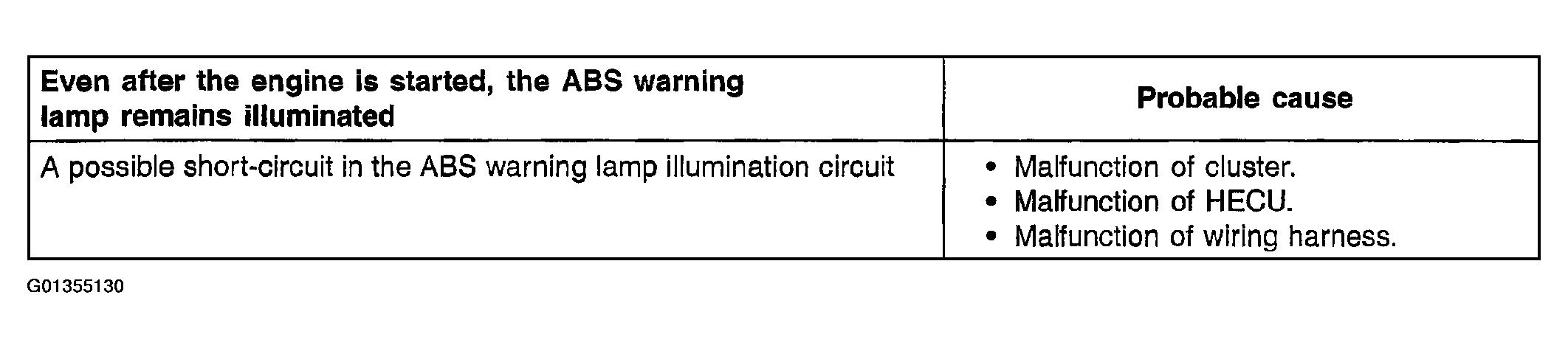

Fig 1: Inspection Procedure 4 Table
Courtesy of HYUNDAI MOTOR CO.
NOTE:
This trouble symptom is limited to cases where communication with the Hi-Scan (Pro) is possible (HECU power supply is normal) and DTC is normal.

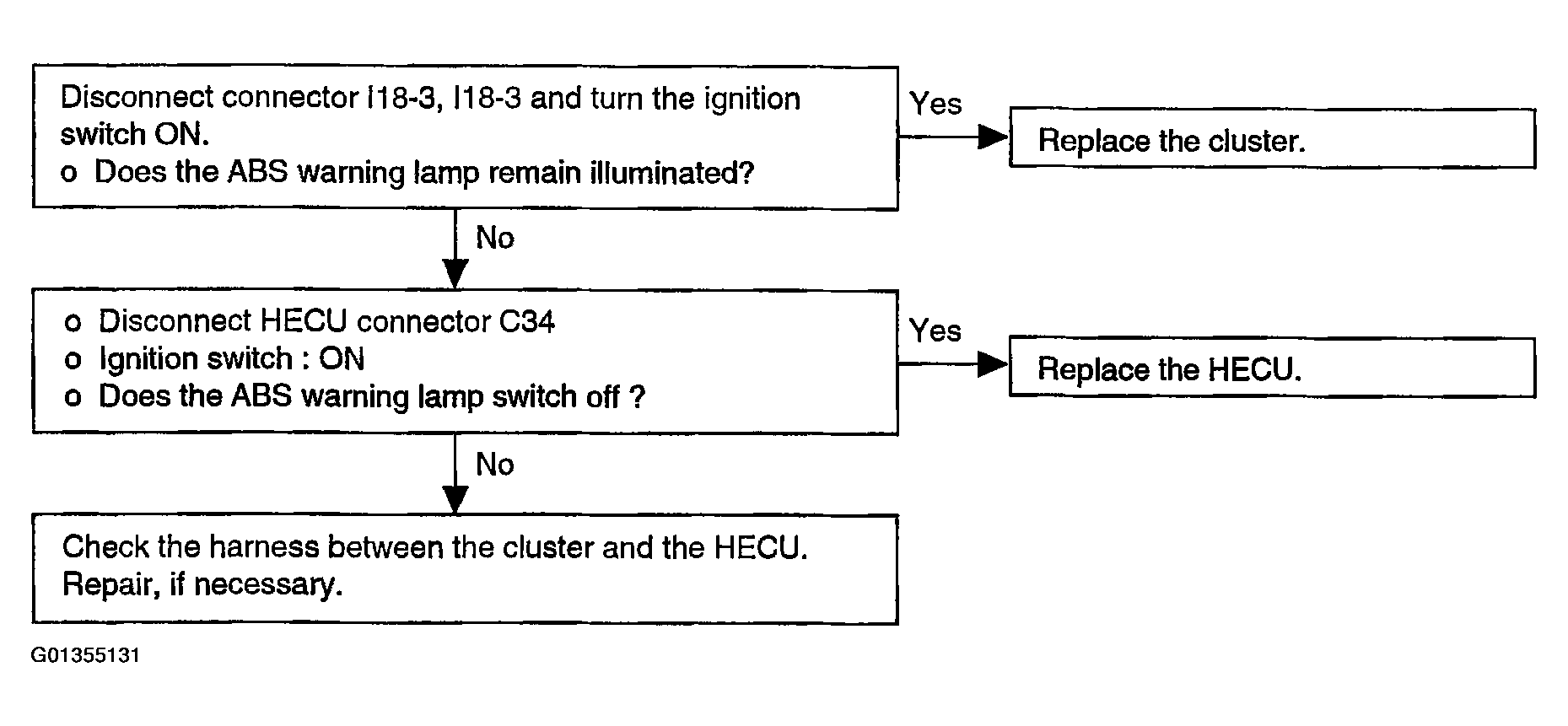

Fig 2: Inspection Procedure 4 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
