Mist Switch [M01-2]

NOTE: For M01-2 connector terminal identification, see Figure .

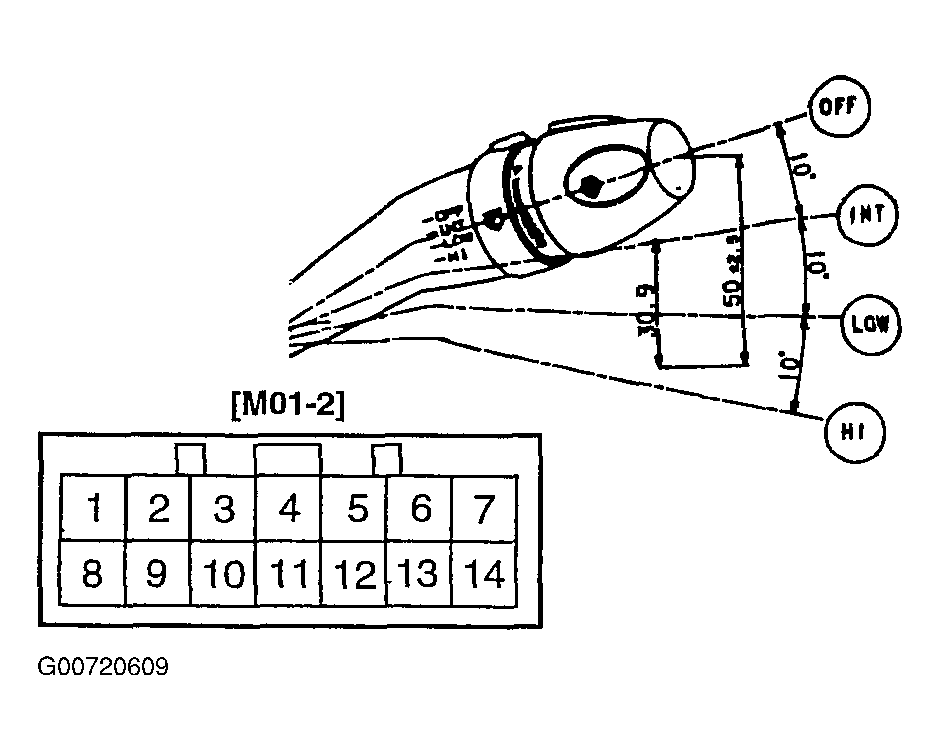

Fig 1: Identifying Mist Switch Positions
G00720611Courtesy of HYUNDAI MOTOR CO.
Fig 2: Mist Switch Connector M01-2 Terminal Continuity Table
G00720612Courtesy of HYUNDAI MOTOR CO.
