Keyless Entry System Troubleshooting

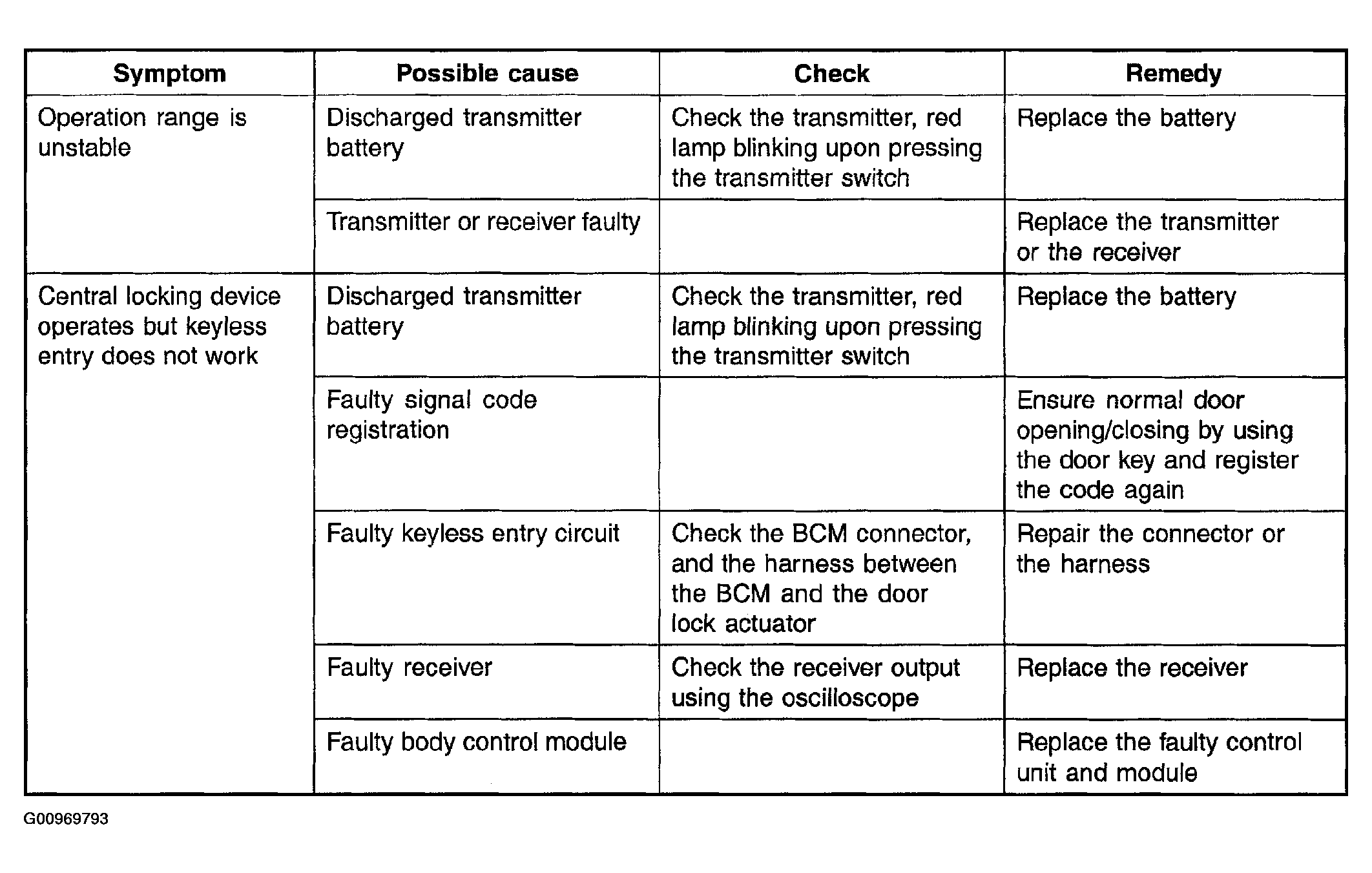

Fig 1: Keyless Entry System Symptom & Possible Cause Table

Courtesy of HYUNDAI MOTOR CO.

NOTE: If central lock and keyless entry do not operate simultaneously, systems other than the keyless entry may be considered faulty. Then check related systems.
