Inspect Circuits For Daytime Running Light System

  1. Disconnect the wire connector to DRL module from engine compartment.

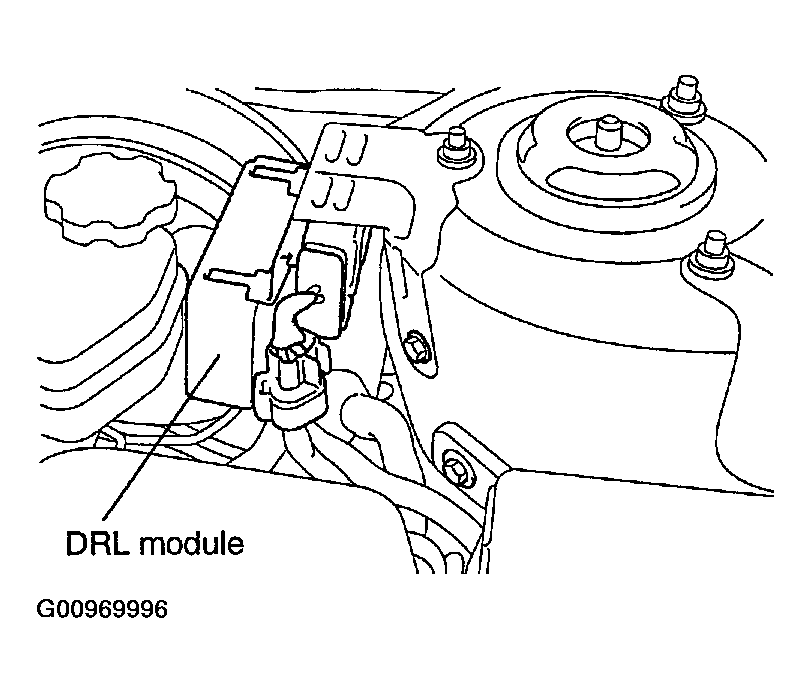

    Fig 1: Identifying DRL Module
    G00969996Courtesy of HYUNDAI MOTOR CO.
  2. Inspect the connector on wire harness side as shown.
    Fig 2: Identifying DRL Module Connector Terminals
    G00969997Courtesy of HYUNDAI MOTOR CO.

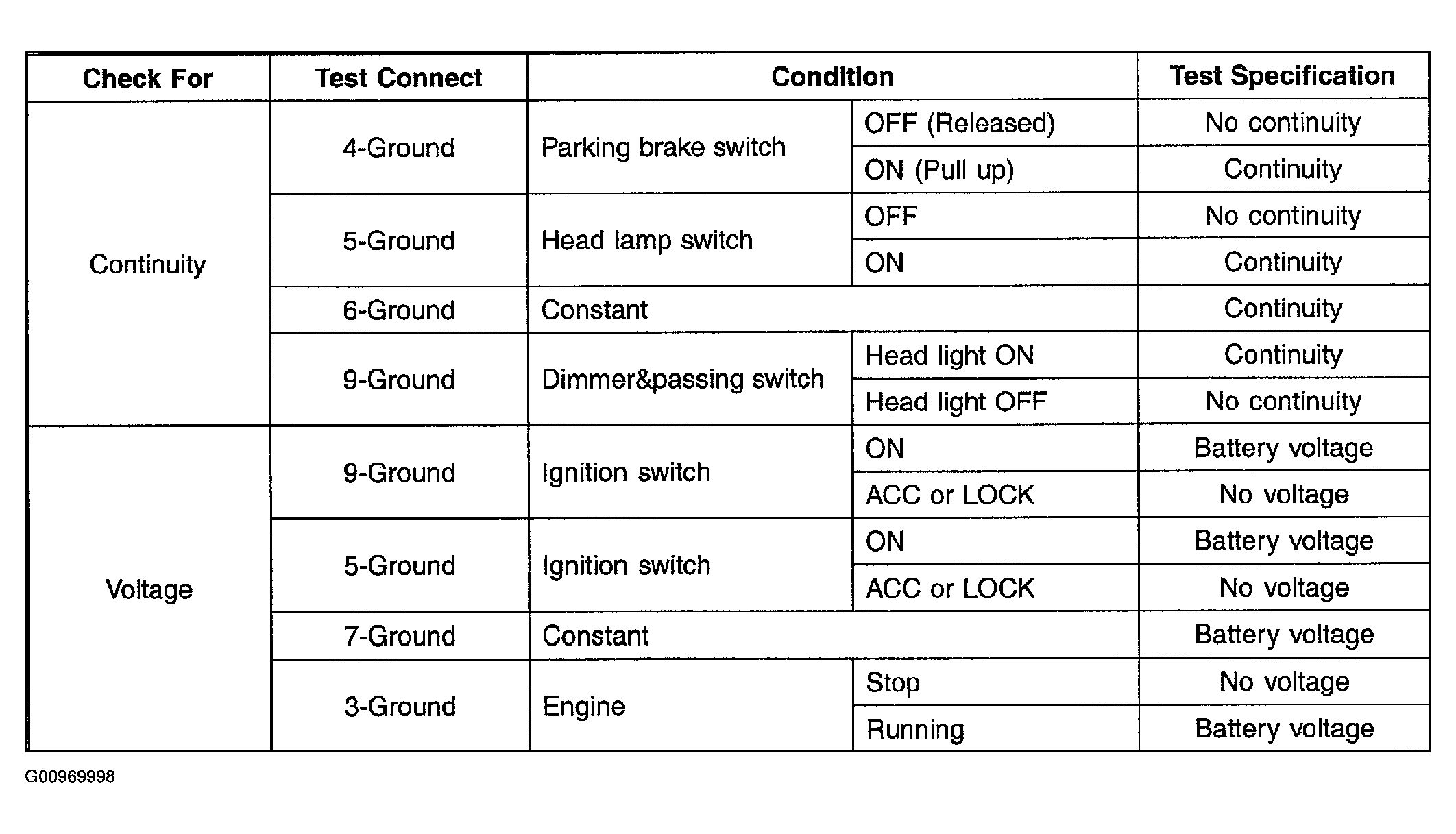

    Fig 3: Continuity & Voltage Inspection Table
    G00969998Courtesy of HYUNDAI MOTOR CO.
  3. If circuit is not as specified, refer to HEADLIGHTS and inspect for short circuit.
