Troubleshooting (A/T) (F4A42 Model)

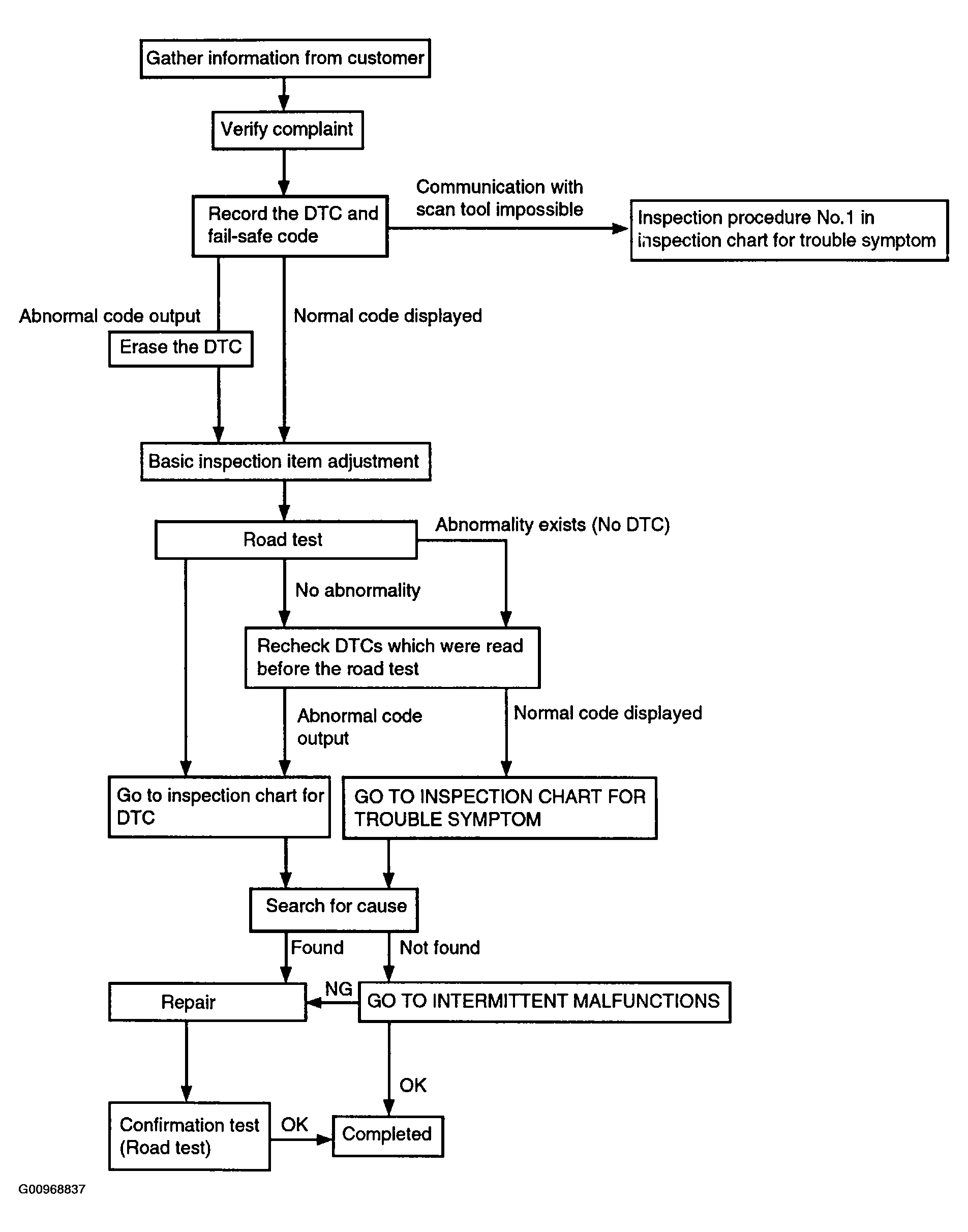

Fig 1: Troubleshooting Flow Chart

G00968837

Courtesy of HYUNDAI MOTOR CO.
