Inspection Process For Trouble Symptoms
>>
Inspection Procedure 4
Inspection Procedure 4

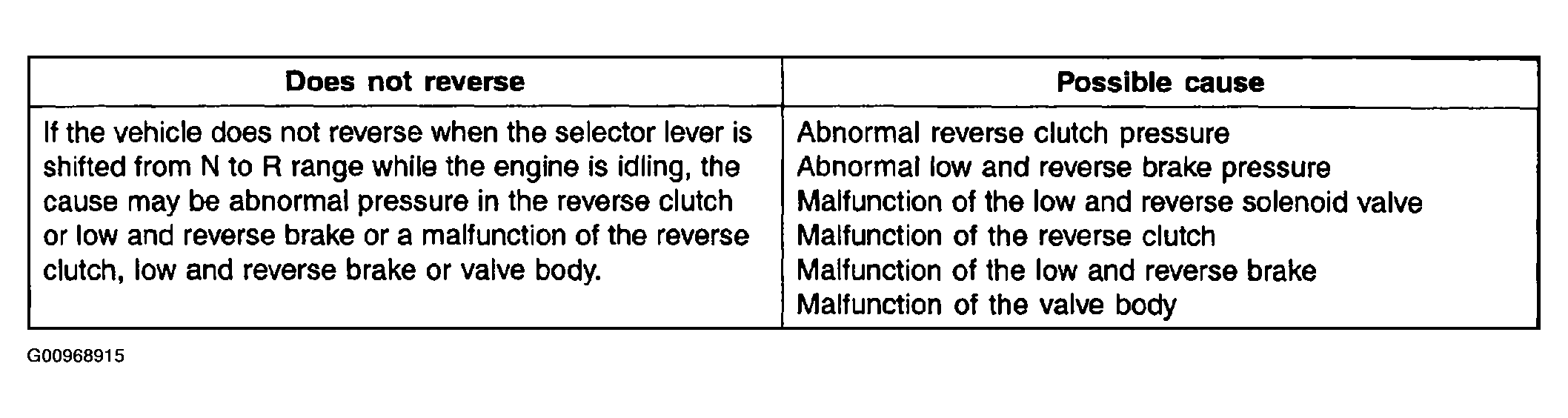

Fig 1: Vehicle Will Not Reverse Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

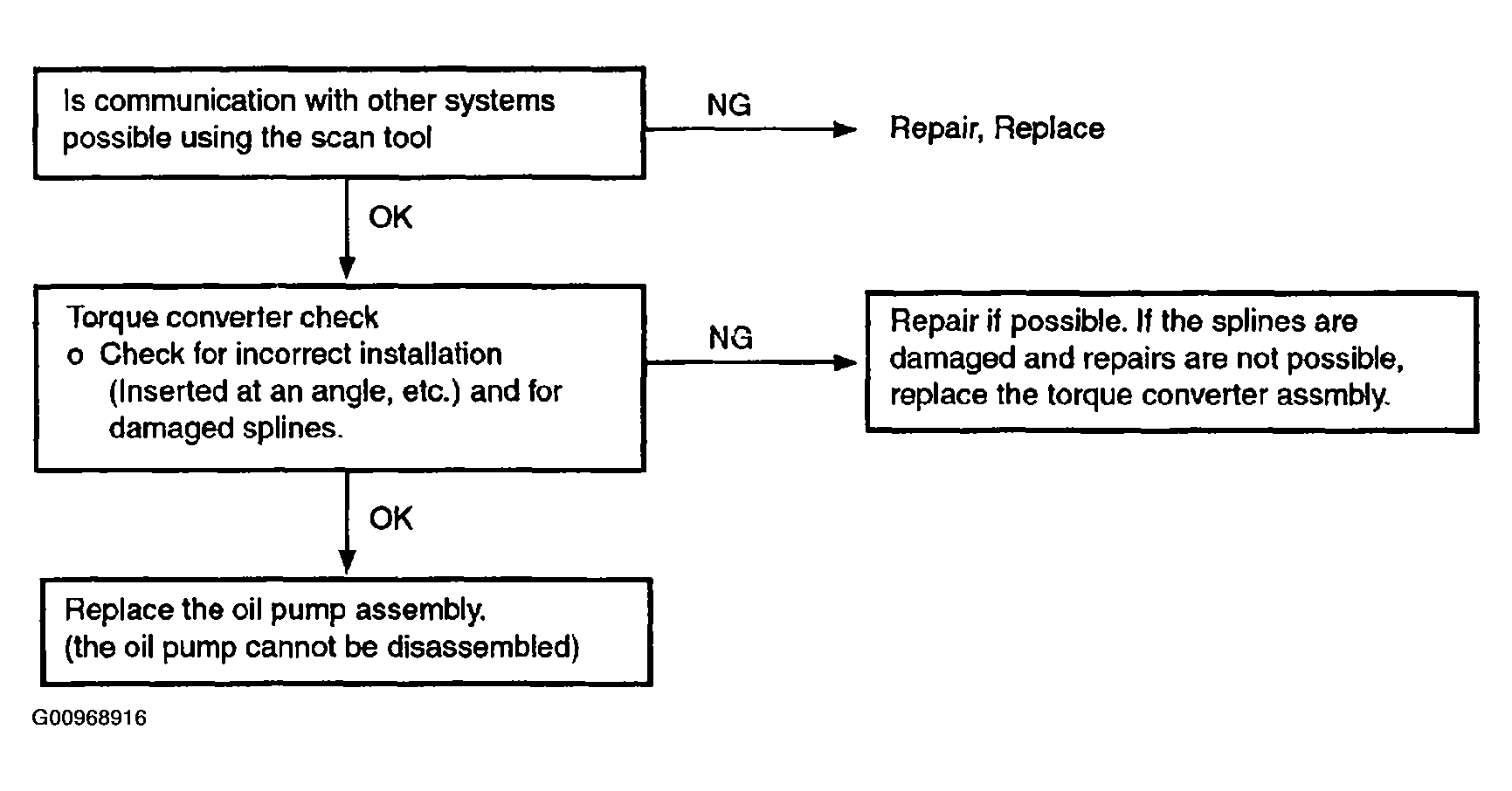

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
