DTC P0712 & P0713: Oil Temperature Sensor System

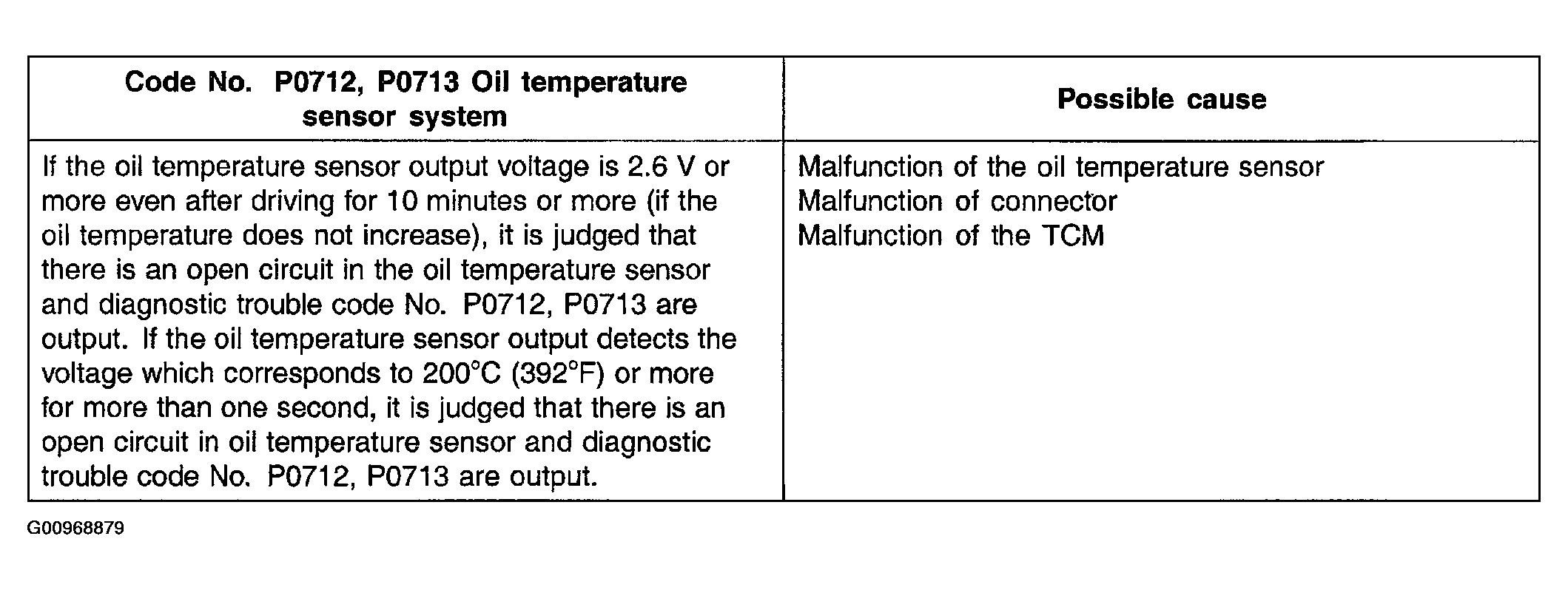

Fig 1: DTC P0712 & P0713 Detecting Conditions & Probable Causes
G00968879Courtesy of HYUNDAI MOTOR CO.

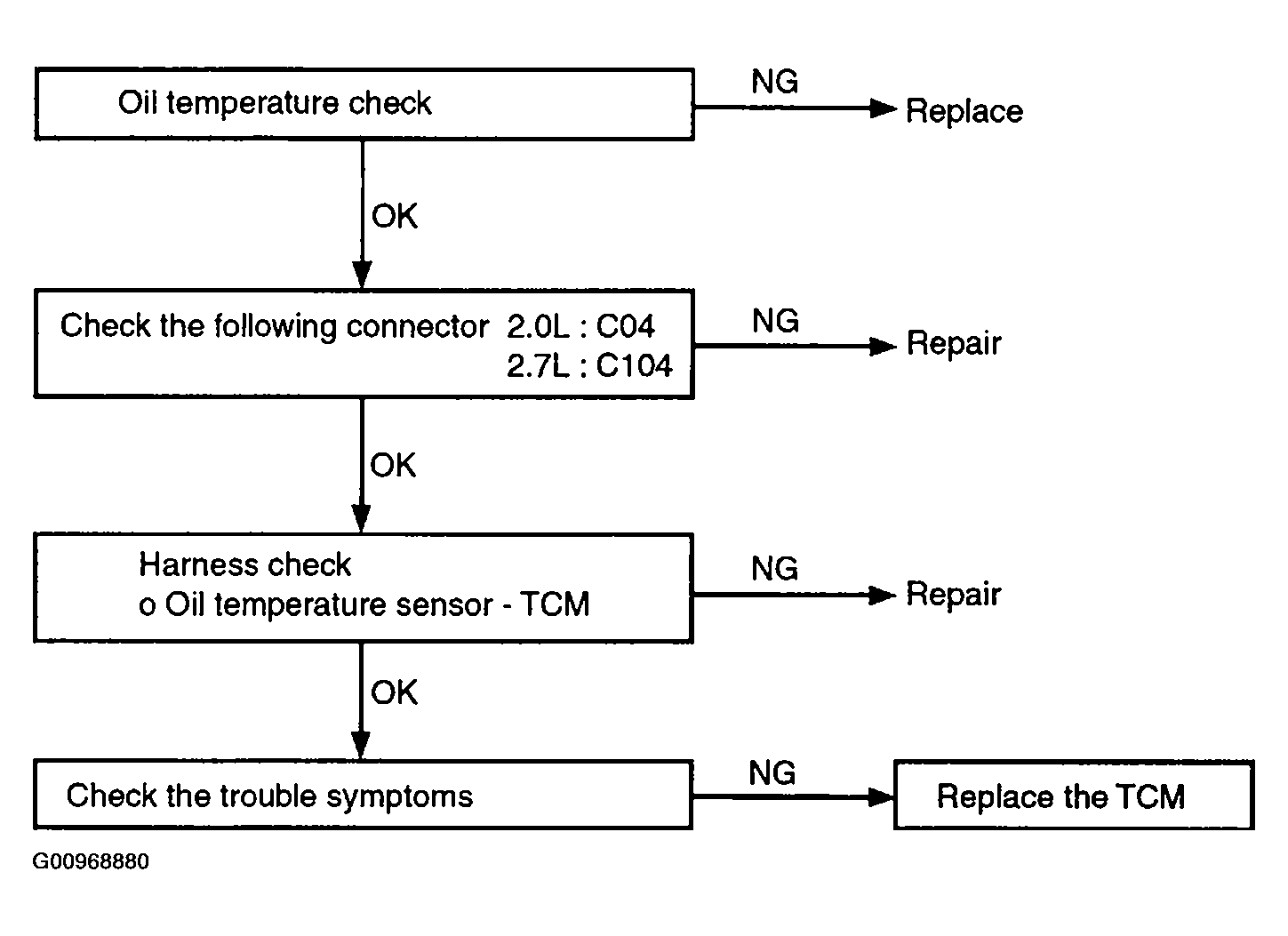

Fig 2: DTC P0712 & P0713 Diagnostic Flow Chart
G00968880Courtesy of HYUNDAI MOTOR CO.

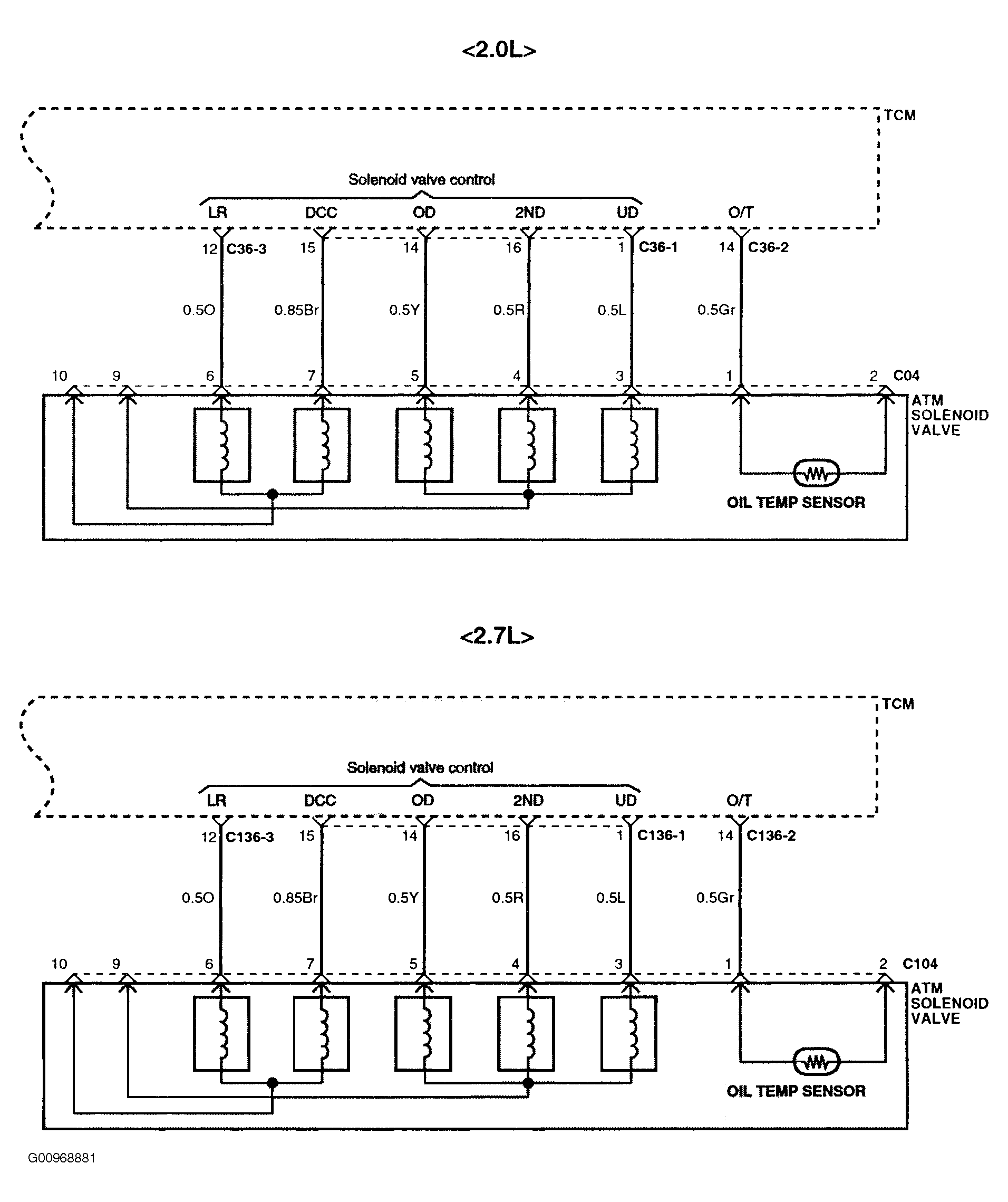

Fig 3: Oil Temperature Sensor Circuit
G00968881Courtesy of HYUNDAI MOTOR CO.
