Front Hub/Knuckle: Notes

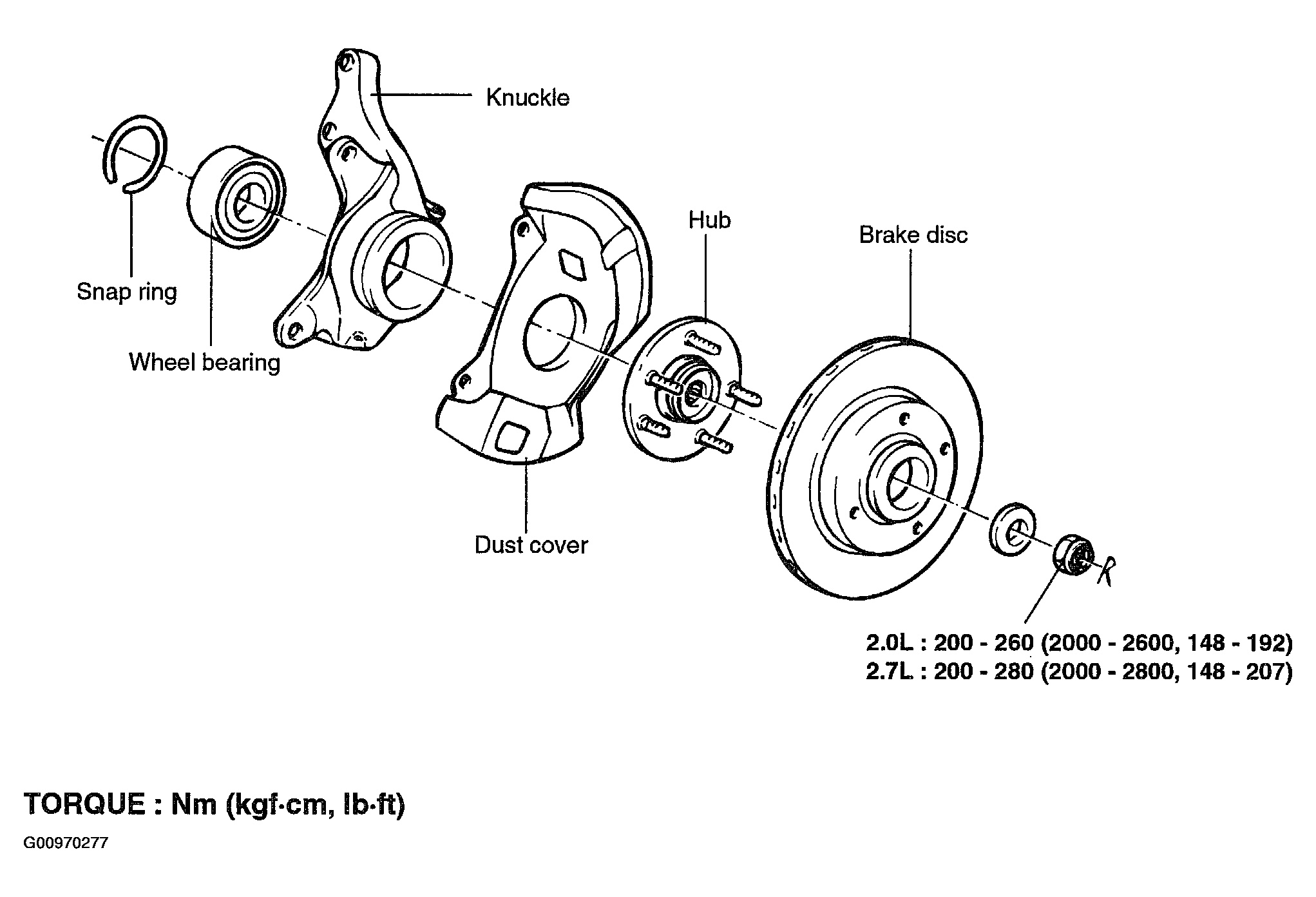

Fig 1: Front Hub/Knuckle Components

G00970277

Courtesy of HYUNDAI MOTOR CO.
