Control Unit Pin Configuration (Automatic)

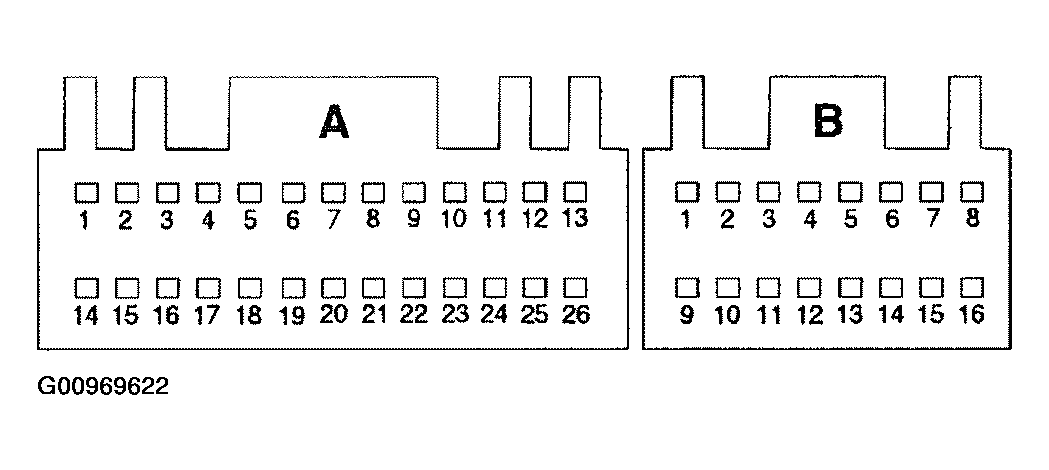

Fig 1: Control Unit Pin Configuration (1 Of 2)

G00969622

Courtesy of HYUNDAI MOTOR CO.

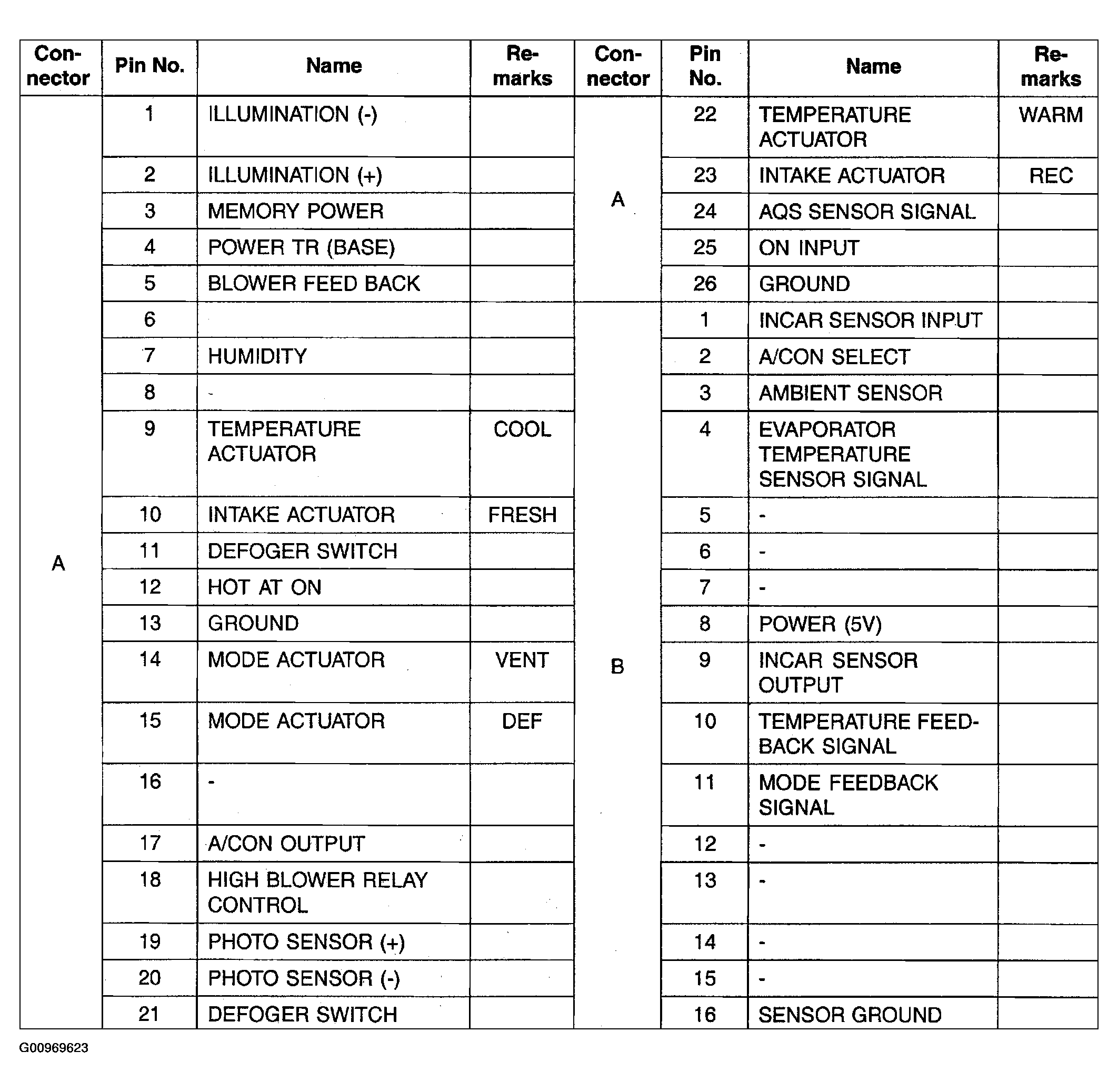

Fig 2: Control Unit Pin Configuration (2 Of 2)

G00969623

Courtesy of HYUNDAI MOTOR CO.
