Operation Check

Check that the lights operate according to the following timing chart.

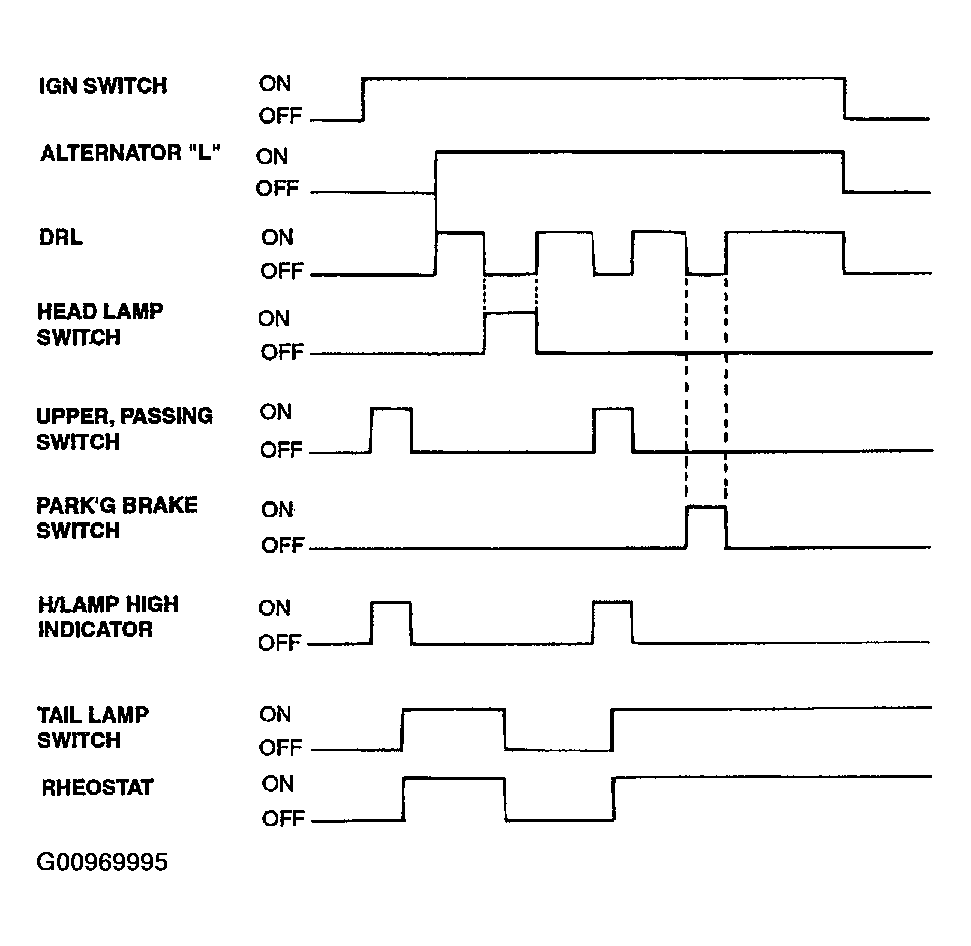

Fig 1: Daytime Running Lights Operational Check Chart

G00969995

Courtesy of HYUNDAI MOTOR CO.
