Auto Lights Control System: Inspection: Notes

  1. Detach the auto light sensor in the upper crash pad.

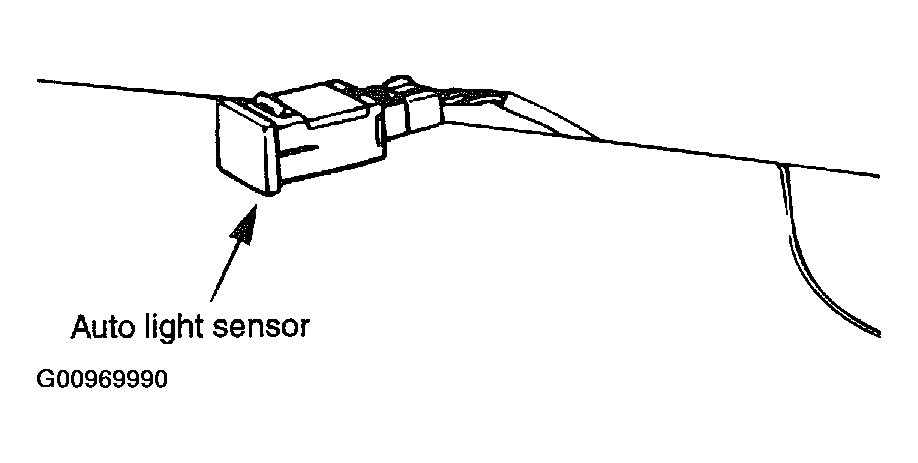

    Fig 1: Detaching Auto Light Sensor
    G00969990Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between terminal 2(+) and terminal 1 (-).
    Fig 2: Identifying Auto Light Sensor Connector Terminals
    G00969991Courtesy of HYUNDAI MOTOR CO.
  3. Check the continuity between the terminals while operating the switch.
