DTC P0715: Input Shaft Speed Sensor System

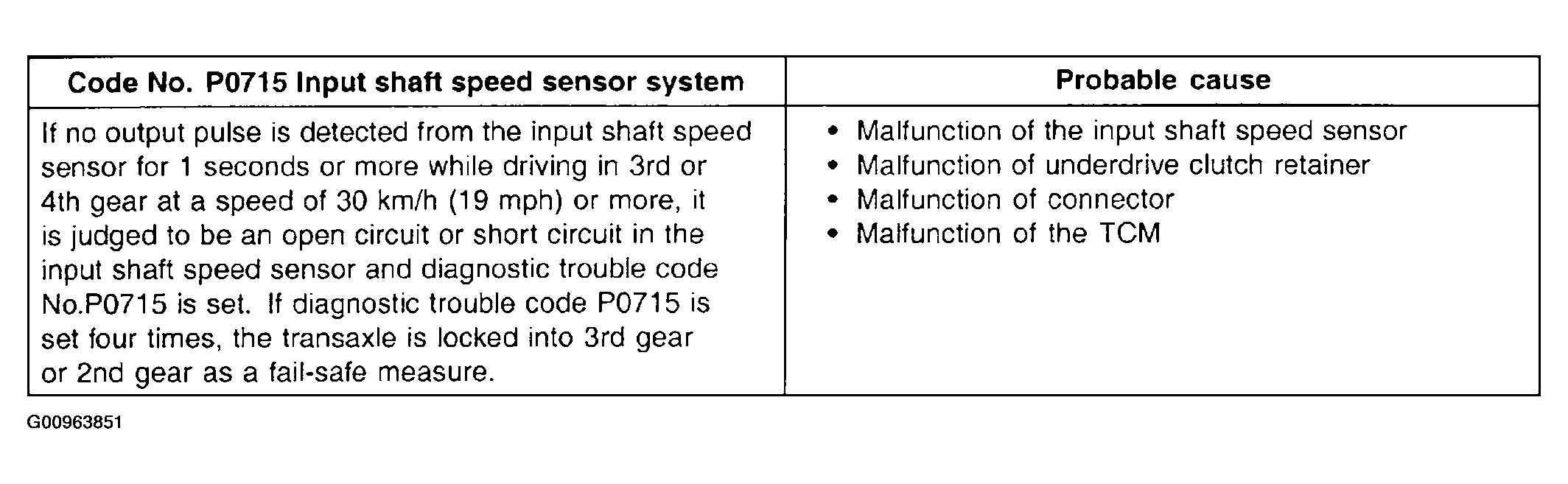

Fig 1: DTC P0715 Probable Cause Table

G00963851

Courtesy of HYUNDAI MOTOR CO.

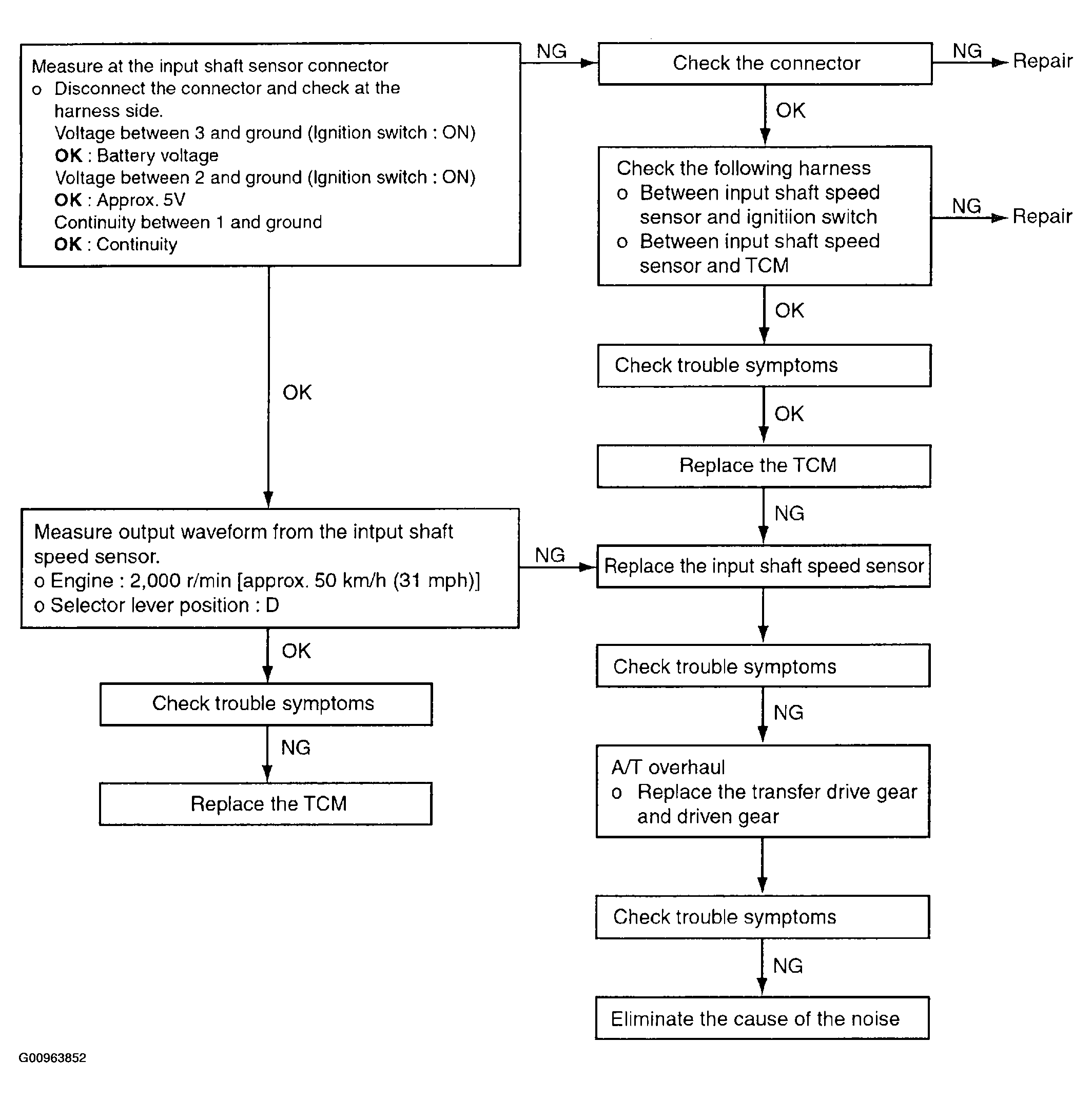

Fig 2: DTC P0715 Diagnostic Flow Chart

G00963852

Courtesy of HYUNDAI MOTOR CO.
