Standard Flow Of Diagnostic Troubleshooting: Notes

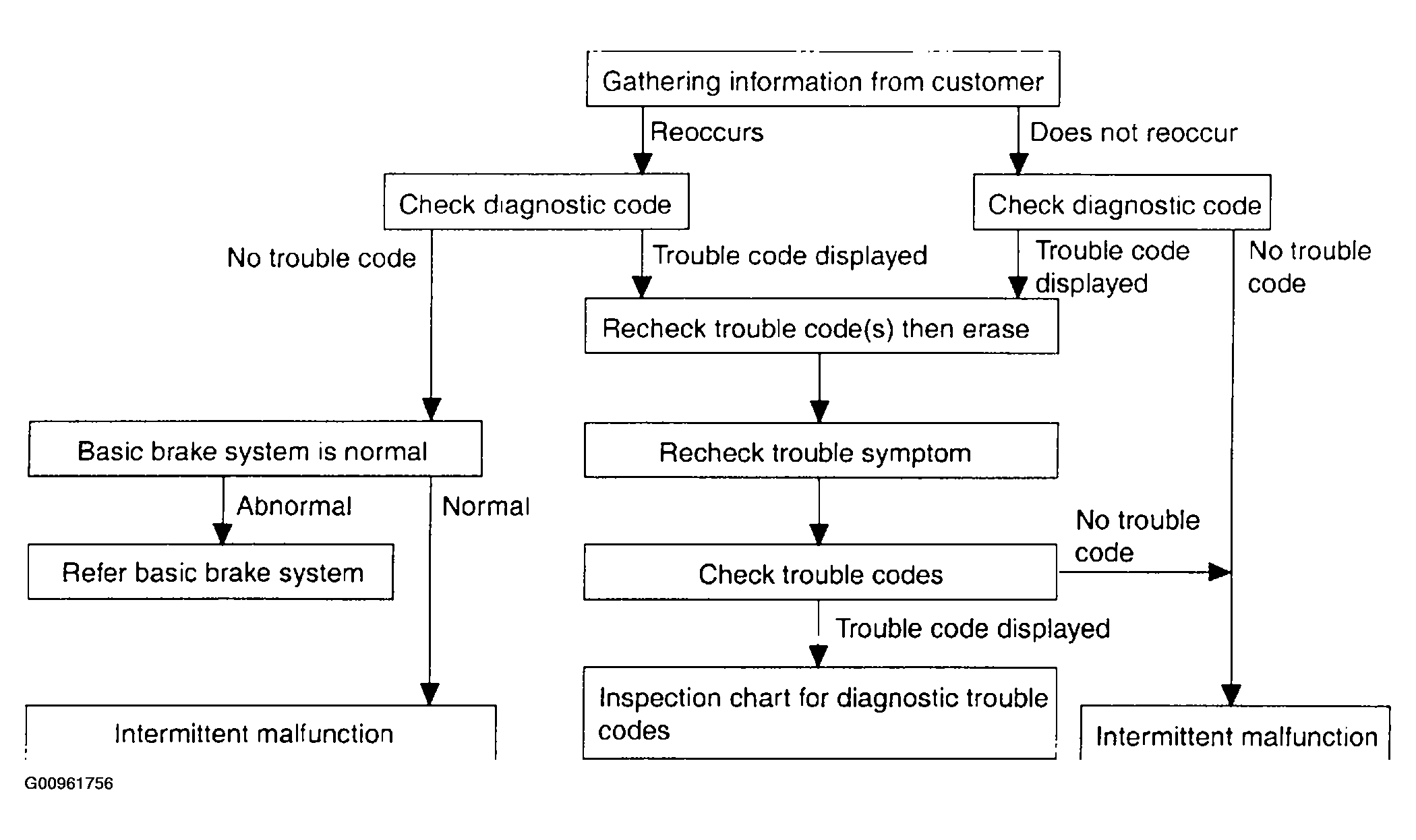

Fig 1: Standard Flow Of Diagnostic Troubleshooting

G00961756

Courtesy of HYUNDAI MOTOR CO.
