Home >> Hyundai >> 2003 >> Santa Fe Base, Standard >> Repair and Diagnosis >> Steering >> Mechanical Power Steering System >> General >> Service Standard

Service Standard

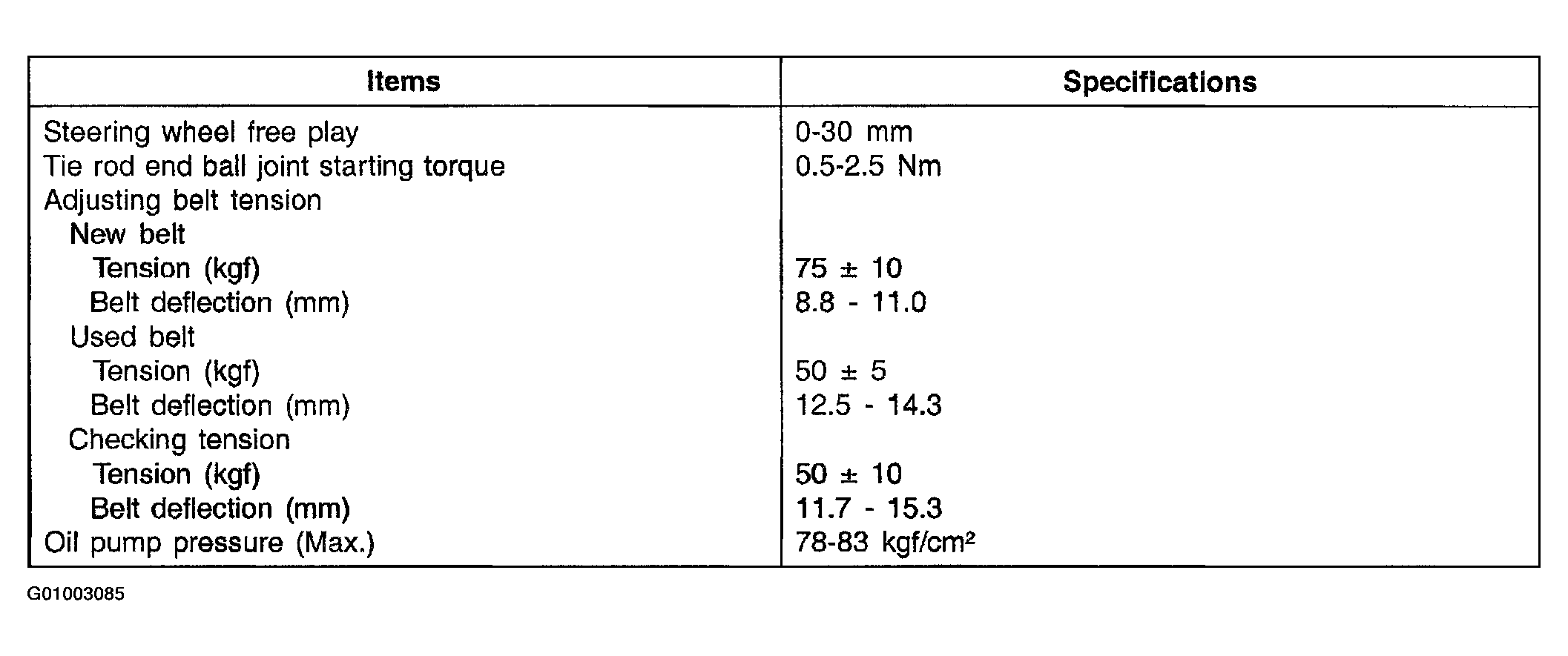

Fig 1: Service Standard Table

G01003085

Courtesy of HYUNDAI MOTOR CO.
