Automatic Transaxle System
>>
Inspection Process For Diagnostic Trouble Codes
>>
DTC P0725: Crankshaft Position Sensor System
DTC P0725: Crankshaft Position Sensor System
WARNING:
This page is about a different variant/trim than selected.

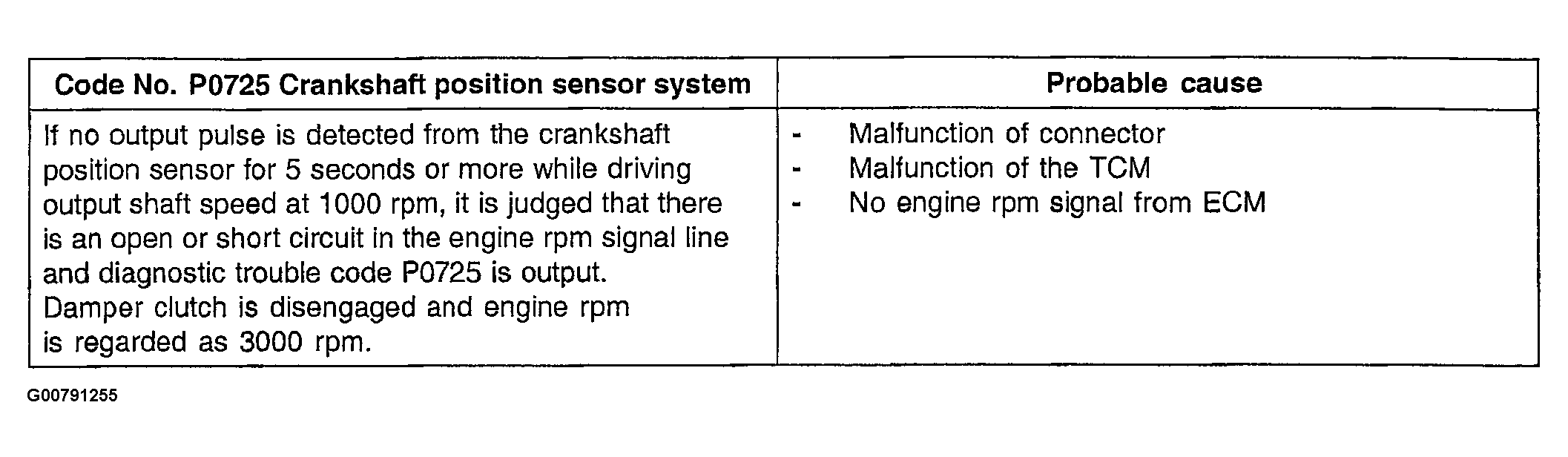

Fig 1: DTC P0725: Crankshaft Position Sensor System Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Fig 2: DTC P0725: Crankshaft Position Sensor System Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
