Transfer Drive Gear

WARNING: This page is about a different variant/trim than selected.

With the transfer drive gear, increased tooth height and a higher contact ratio have reduced gear noise.

Also, the bearing that supports the drive gear is a preloaded type that eliminates rattle, and the rigidity of the gear mounting has been increased by bolting the bearing directly onto the case.

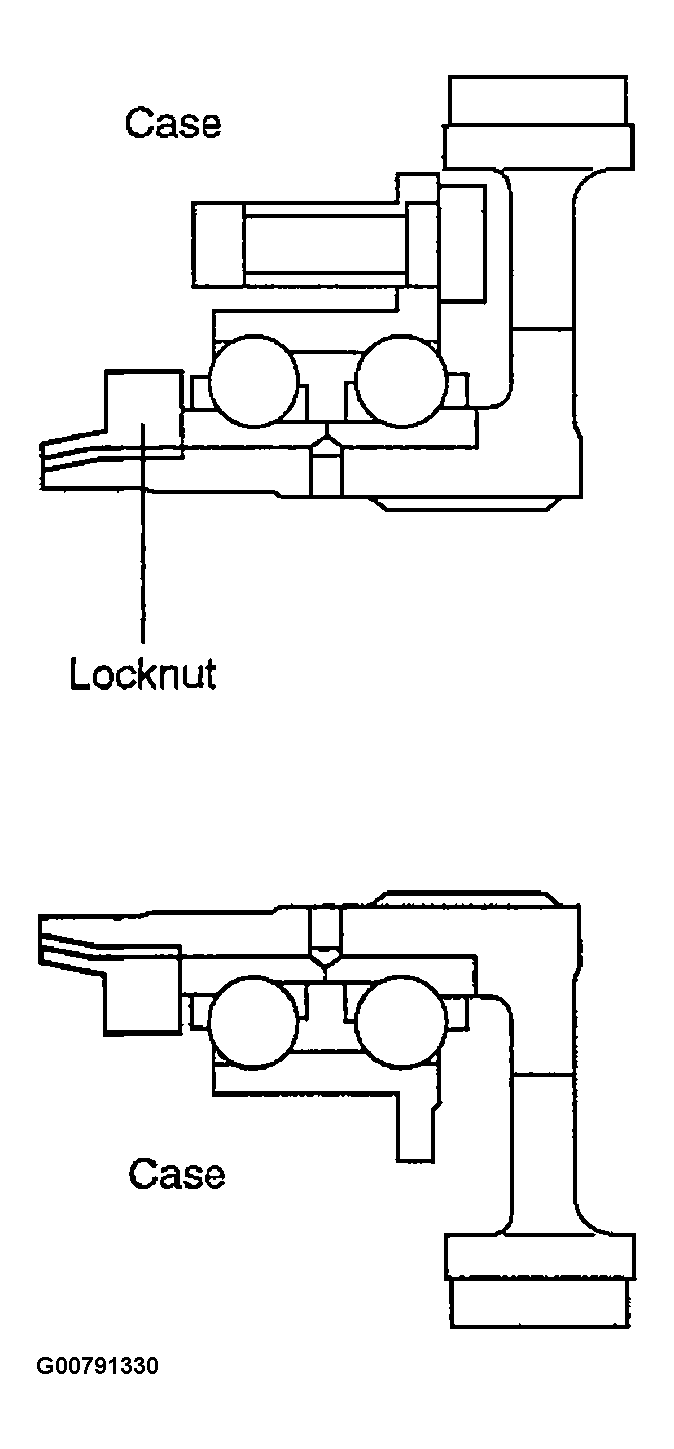

Fig 1: Identifying Transfer Drive Gear Components
G00791330Courtesy of HYUNDAI MOTOR CO.
