Timing Belt: Components

WARNING: This page is about a different variant/trim than selected.

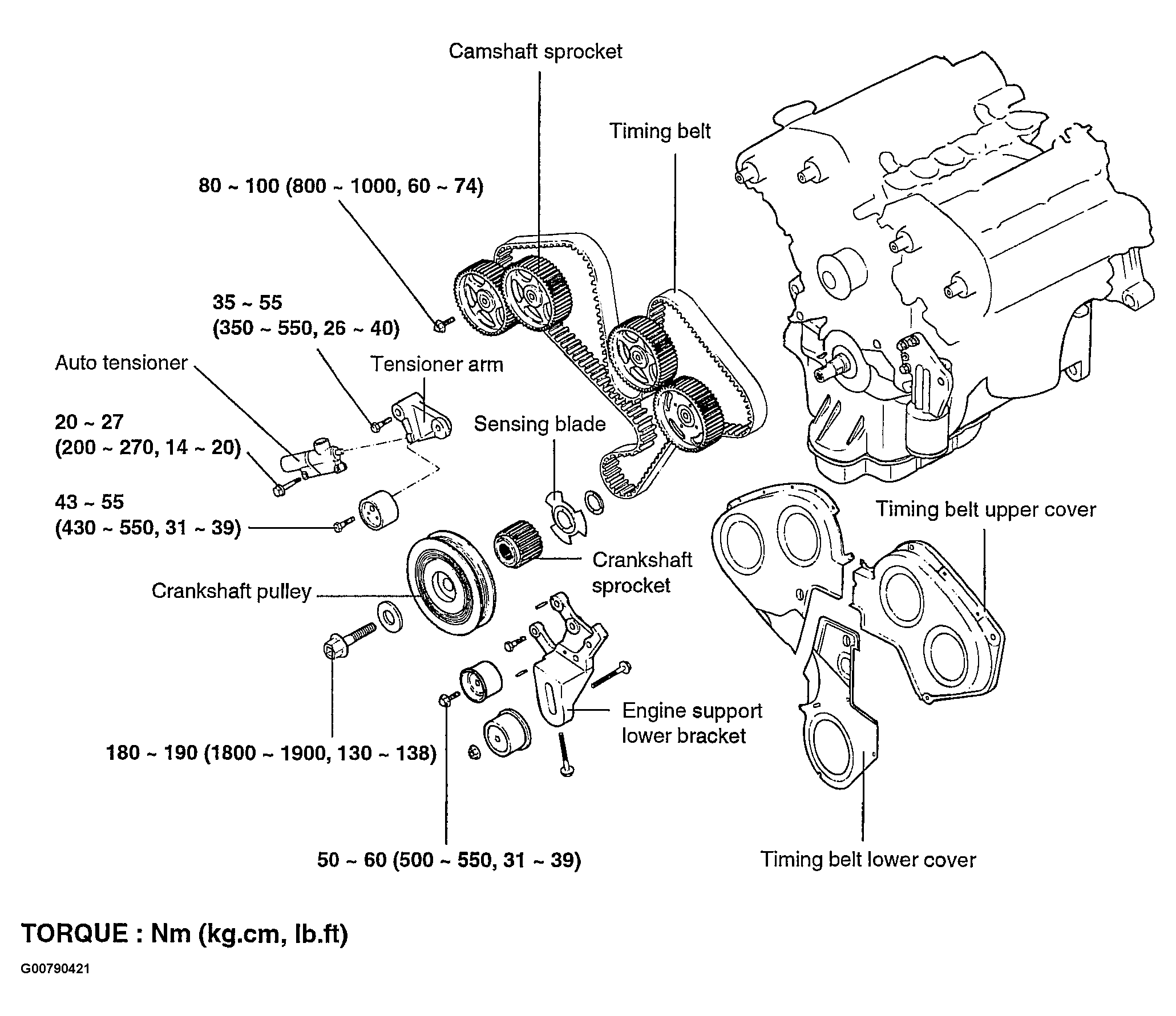

Fig 1: Timing System Components (1 Of 2)
G00790421Courtesy of HYUNDAI MOTOR CO.

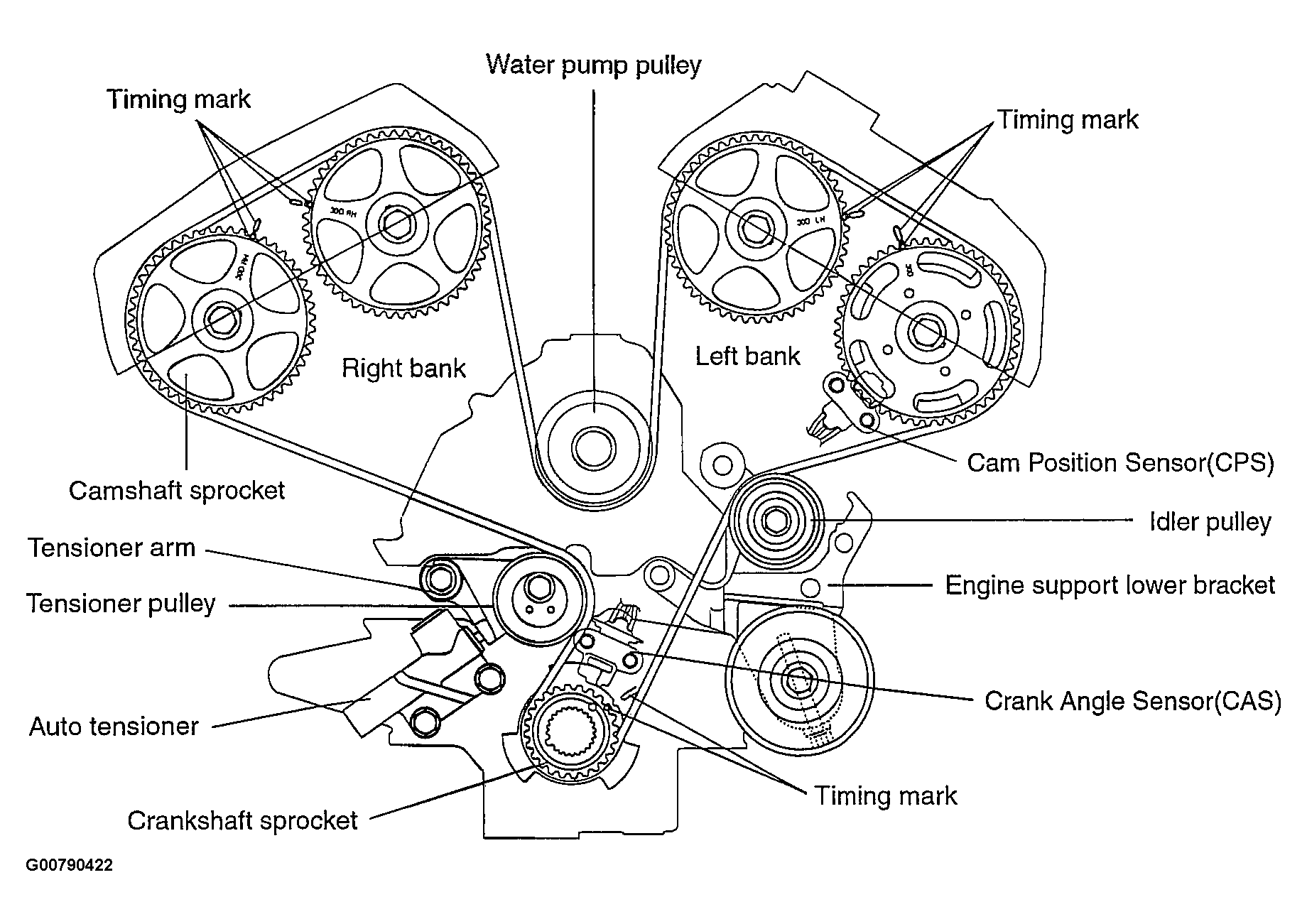

Fig 2: Timing System Components (2 Of 2)
G00790422Courtesy of HYUNDAI MOTOR CO.
