Intake Manifold: Installation

Install the intake manifold and delivery pipe reversing the order of the removal procedure.

Tightening torque

Intake manifold :

12 - 15 Nm (120 - 150 kg.cm, 9 - 11 lb.ft)

Surge tank stay :

15 - 20 Nm (150 - 200 kg.cm, 11 - 14 lb.ft)

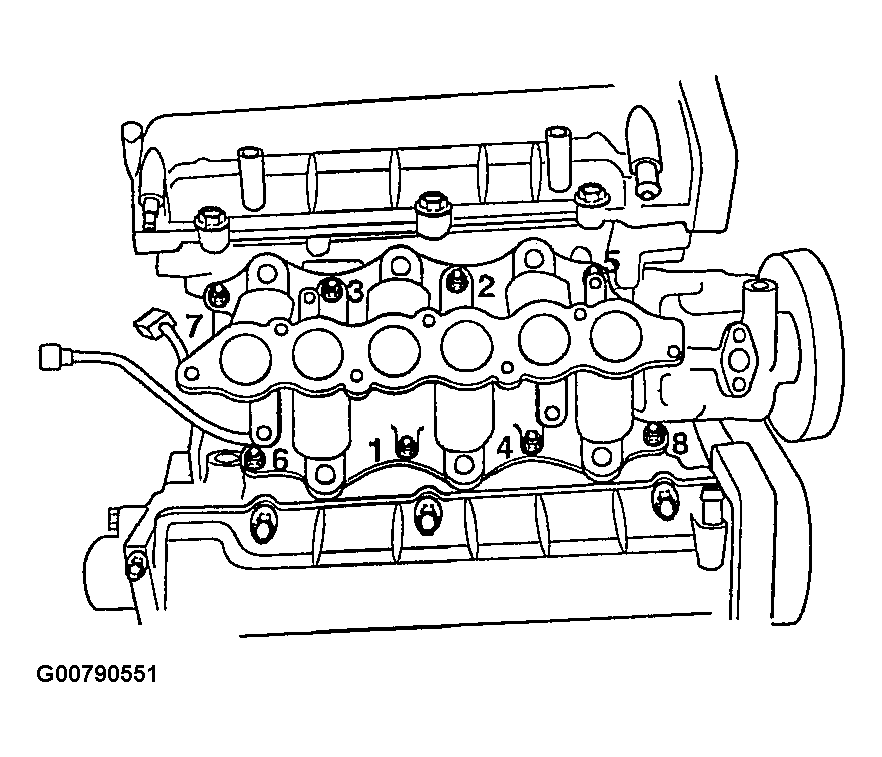

Fig 1: Intake Manifold Bolt Tightening Sequence

Courtesy of HYUNDAI MOTOR CO.

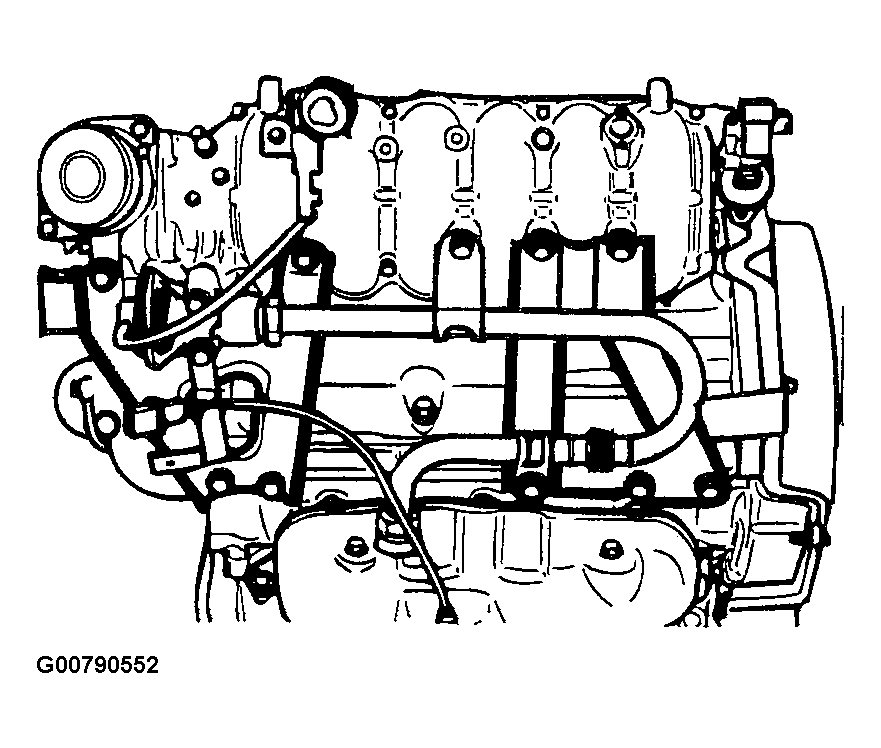

Fig 2: View Of Surge Tank

Courtesy of HYUNDAI MOTOR CO.
