Intake Manifold: Components

WARNING: This page is about a different variant/trim than selected.

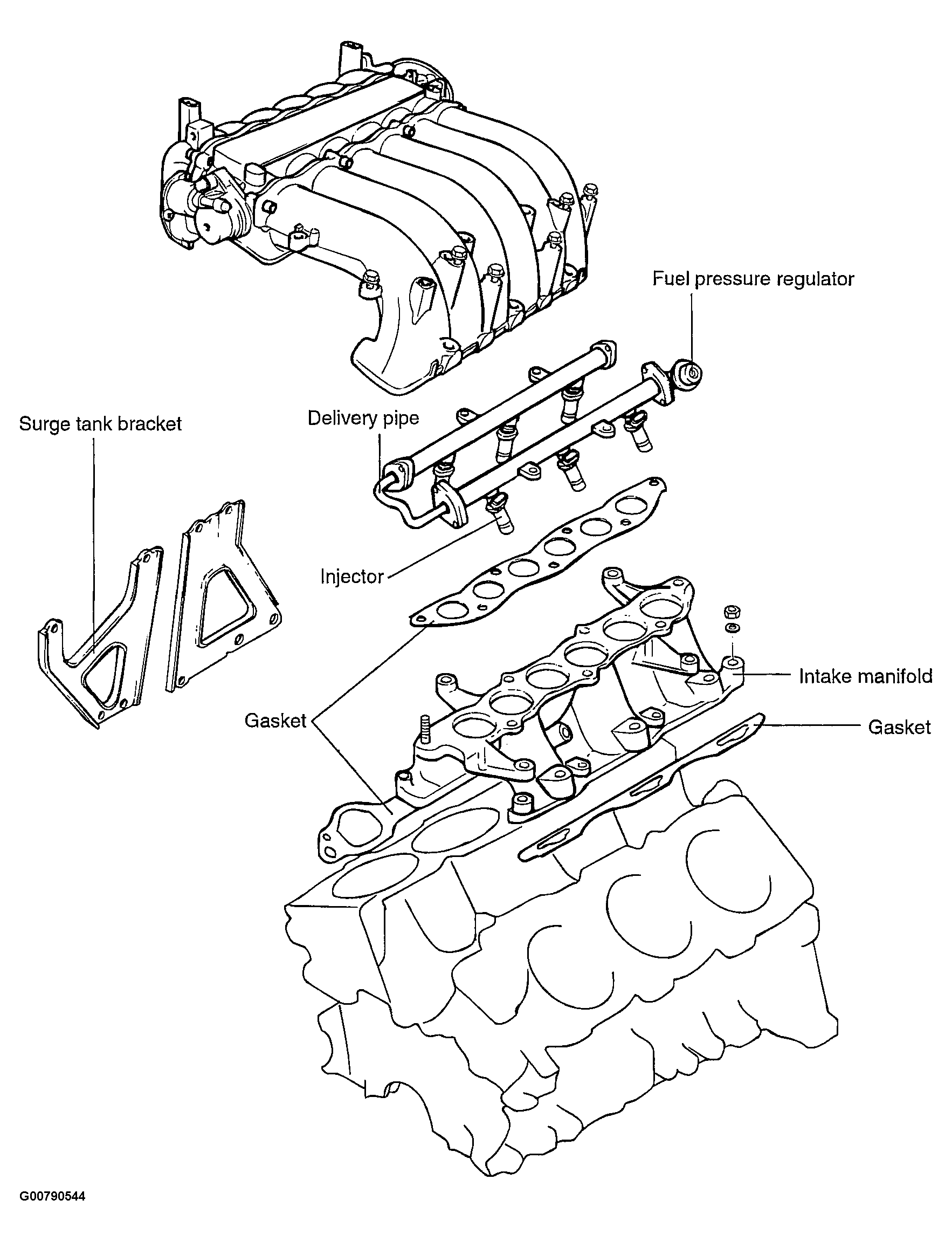

Fig 1: Intake Manifold Components

G00790544

Courtesy of HYUNDAI MOTOR CO.
