System Inspection

Check cooling system coolant level and fill if low.
Ignition "ON" & Engine "OFF".
Perform Actuation test for Radiator fan with scan tool.

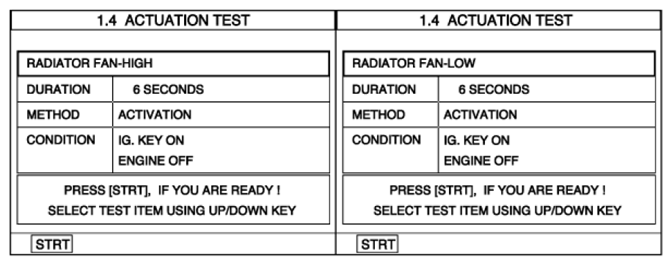

Fig 1: Scantool Display - Radiator Fan Actuation Test
Has a problem been found?
YES
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
