How To Read Self-Diagnostic Code

  1. After the display panel flickers three times every 0.5 second, the corresponding error code flickers on the setup temperature display panel every 0.5 second and will show two figures.
  2. If error code is more than two, each code flickers 2 times in sequence.

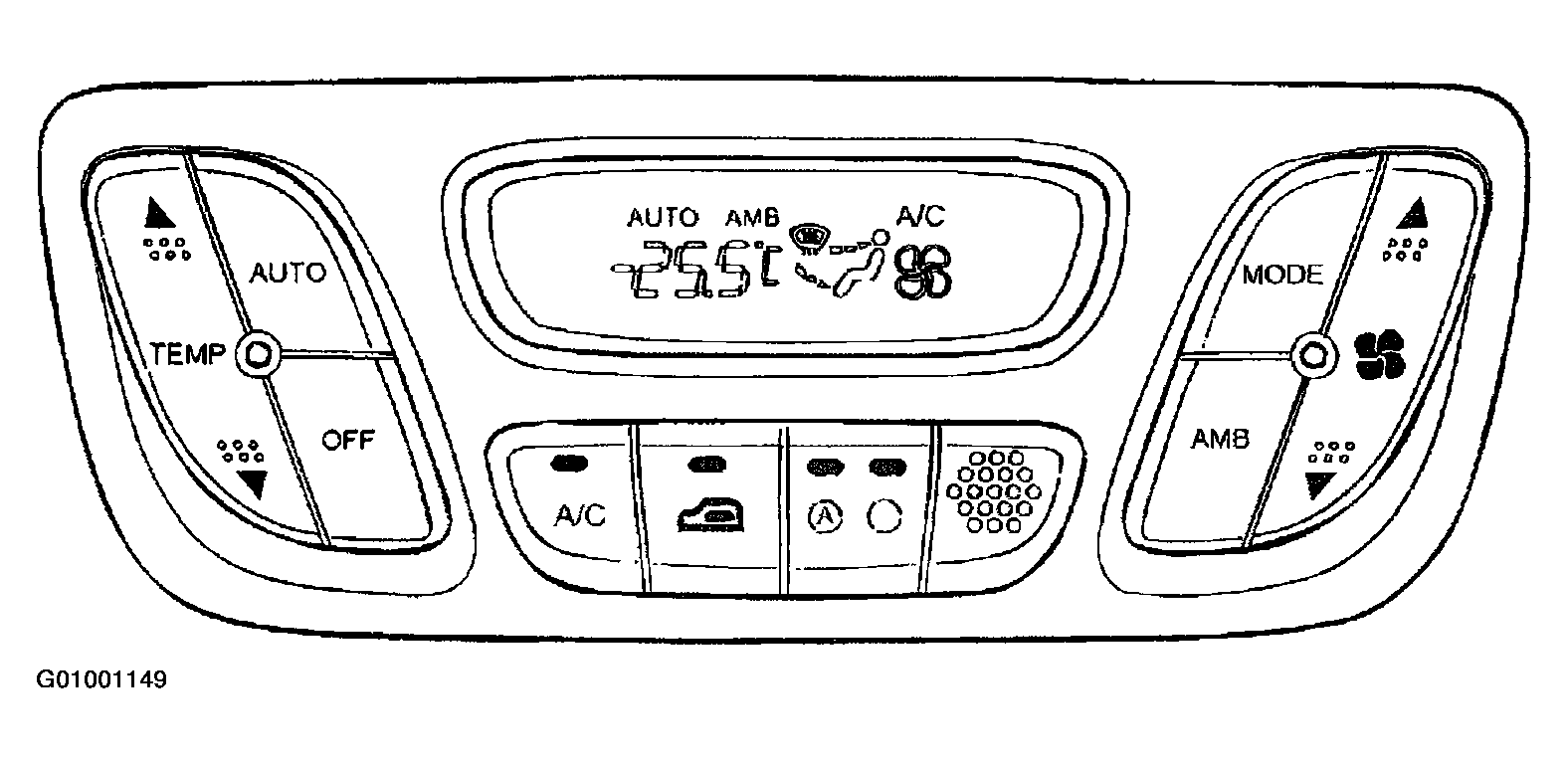

    Fig 1: View Of Control Panel
    G01001149Courtesy of HYUNDAI MOTOR CO.
