Inspect Circuits For Daytime Running Light System

  1. Disconnect the wire connector to DRL module from engine compartment.
  2. Inspect the connector on wire harness side as shown.
    Fig 1: Identifying DRL Module Connector Terminals
    G01000937Courtesy of HYUNDAI MOTOR CO.

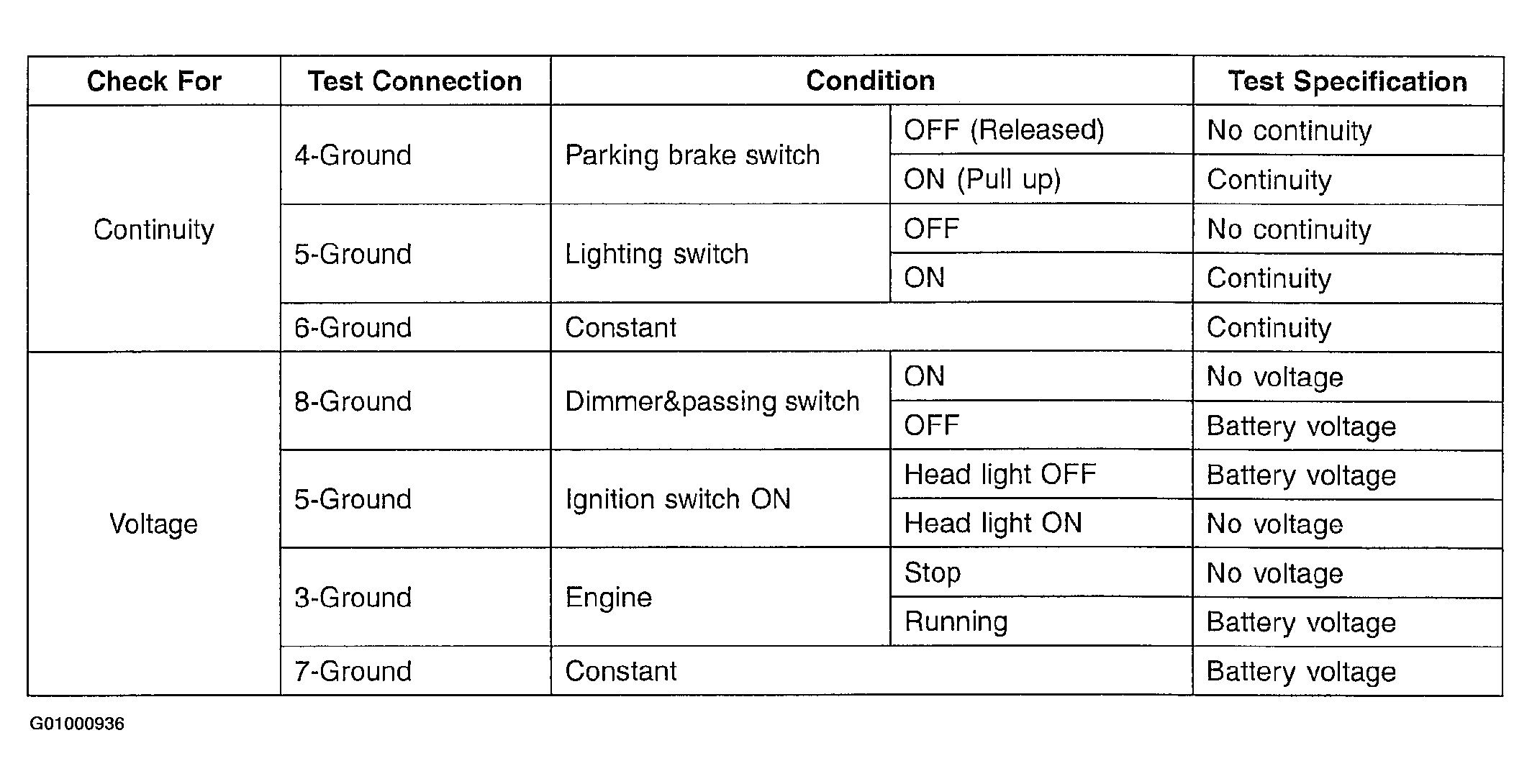

    Fig 2: Daytime Running Light Test Specification Table
    G01000936Courtesy of HYUNDAI MOTOR CO.
  3. If circuit is not as specified, refer HEADLIGHTS and inspect for short circuits.
