DTC P0720: Output Shaft Sensor System
DTC P0720: Output Shaft Sensor System
WARNING:
This page is about a different variant/trim than selected.

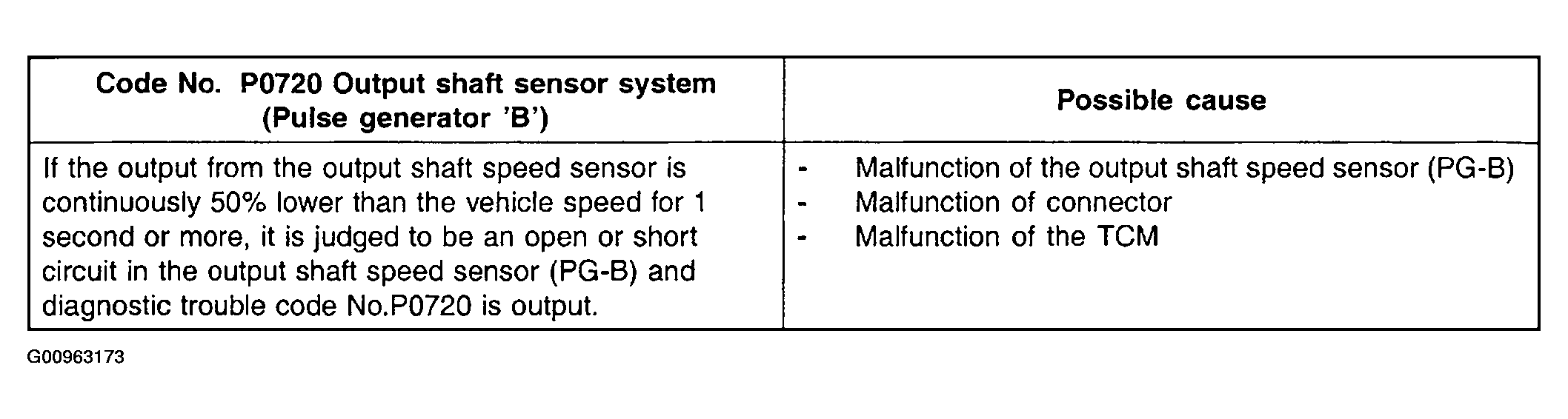

Fig 1: DTC P0720 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

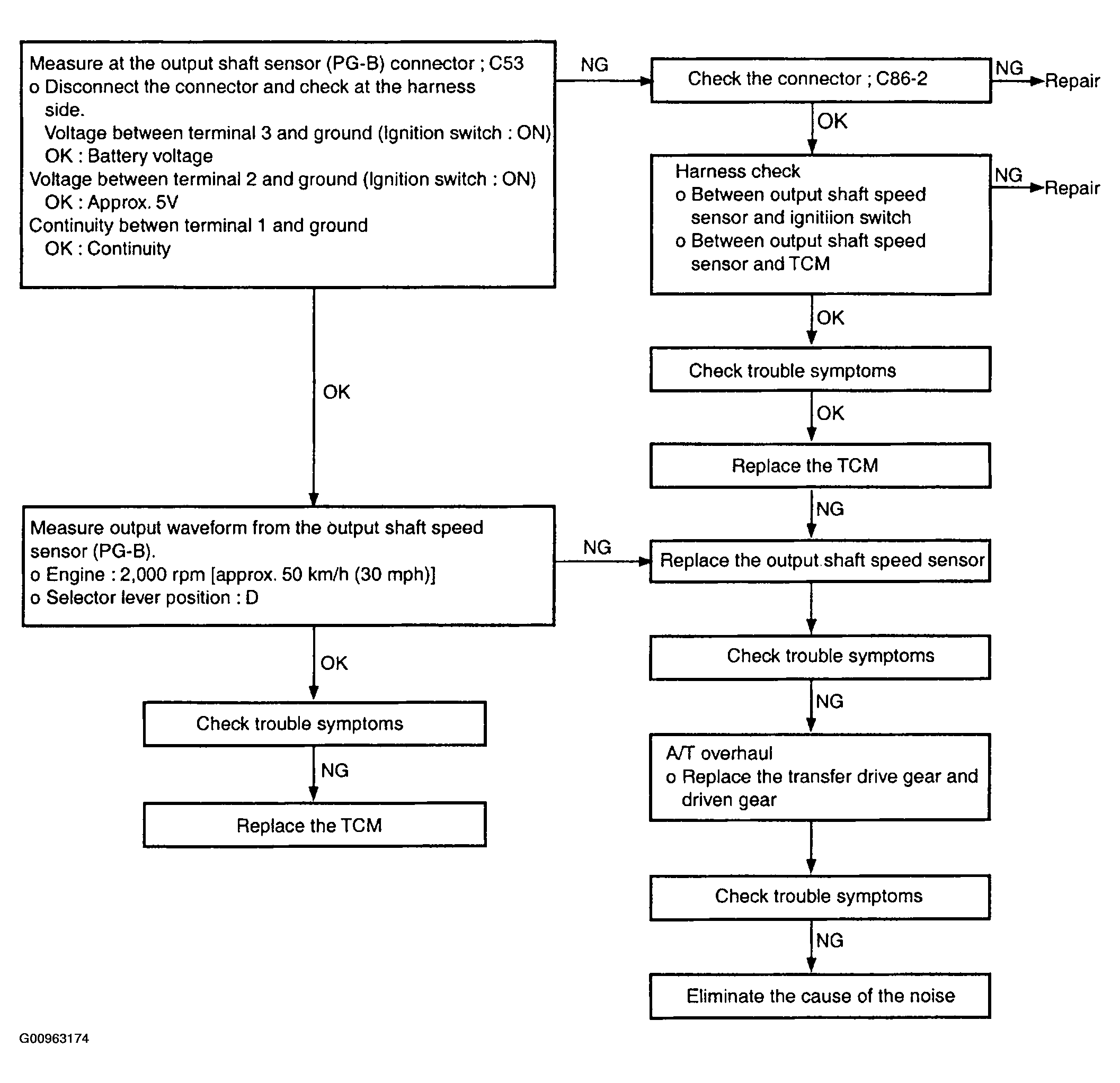

Fig 2: DTC P0720 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
