Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
Inspection Chart For Trouble Symptoms
WARNING:
This page is about a different variant/trim than selected.

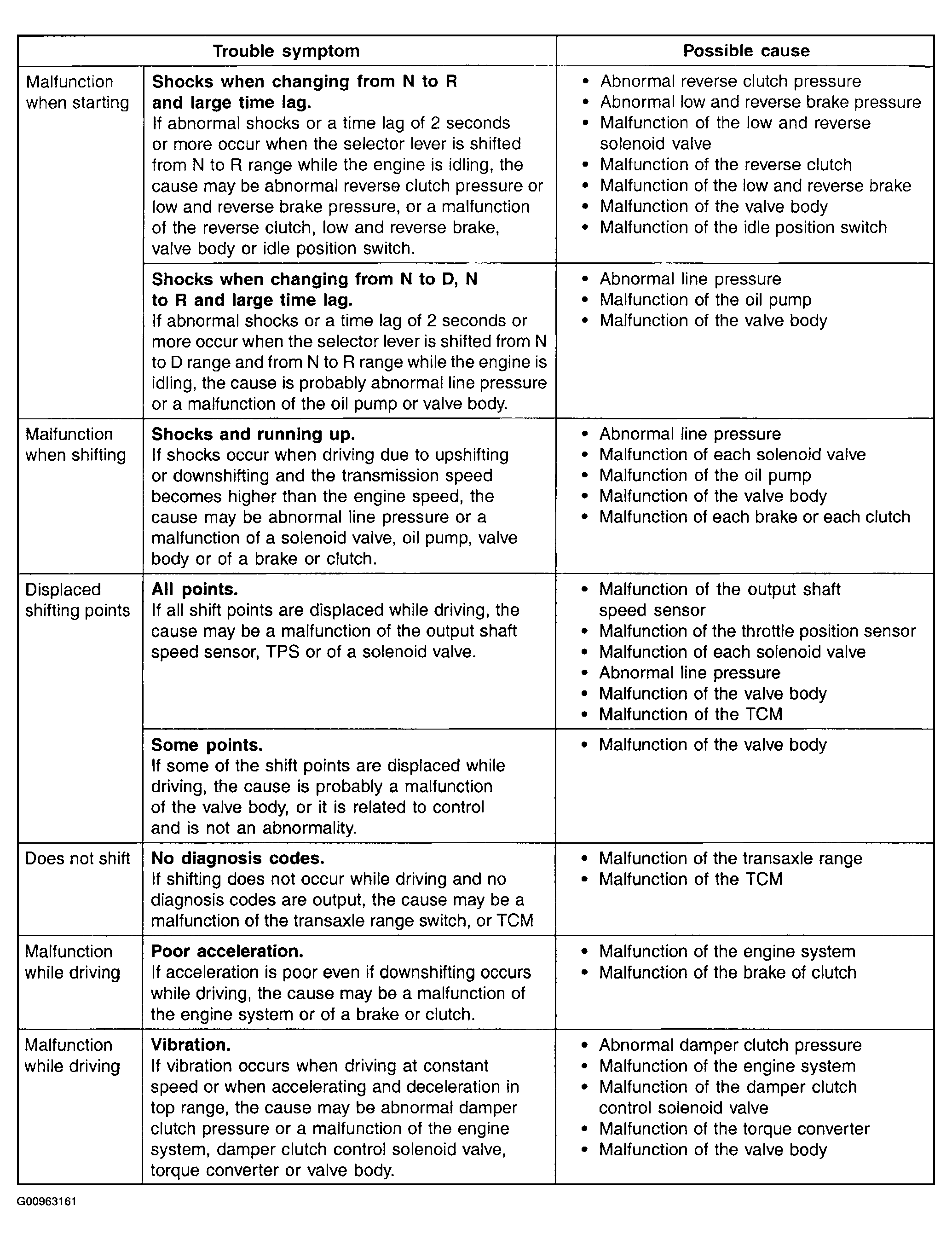

Fig 1: Inspection Chart For Trouble Symptoms (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

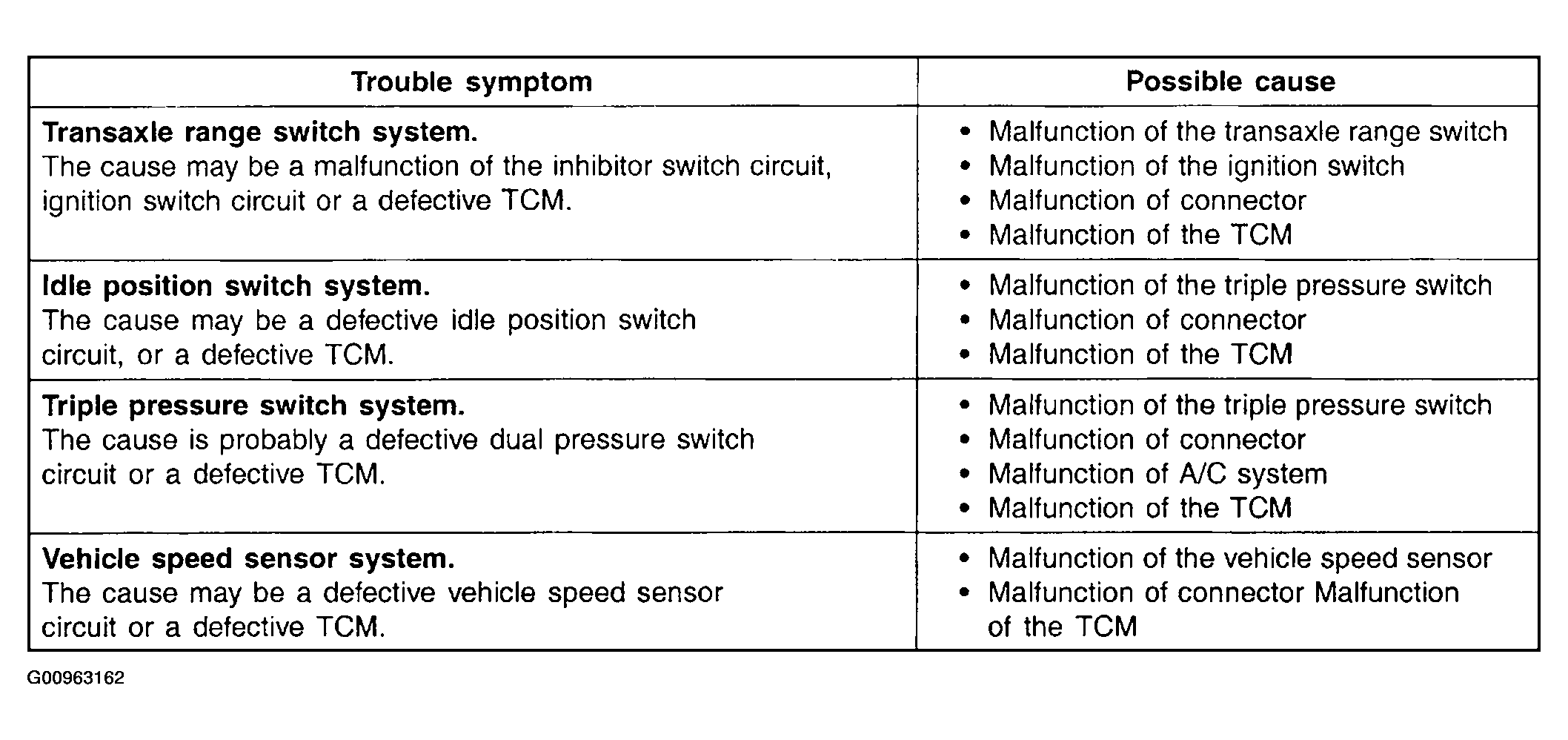

Fig 2: Inspection Chart For Trouble Symptoms (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

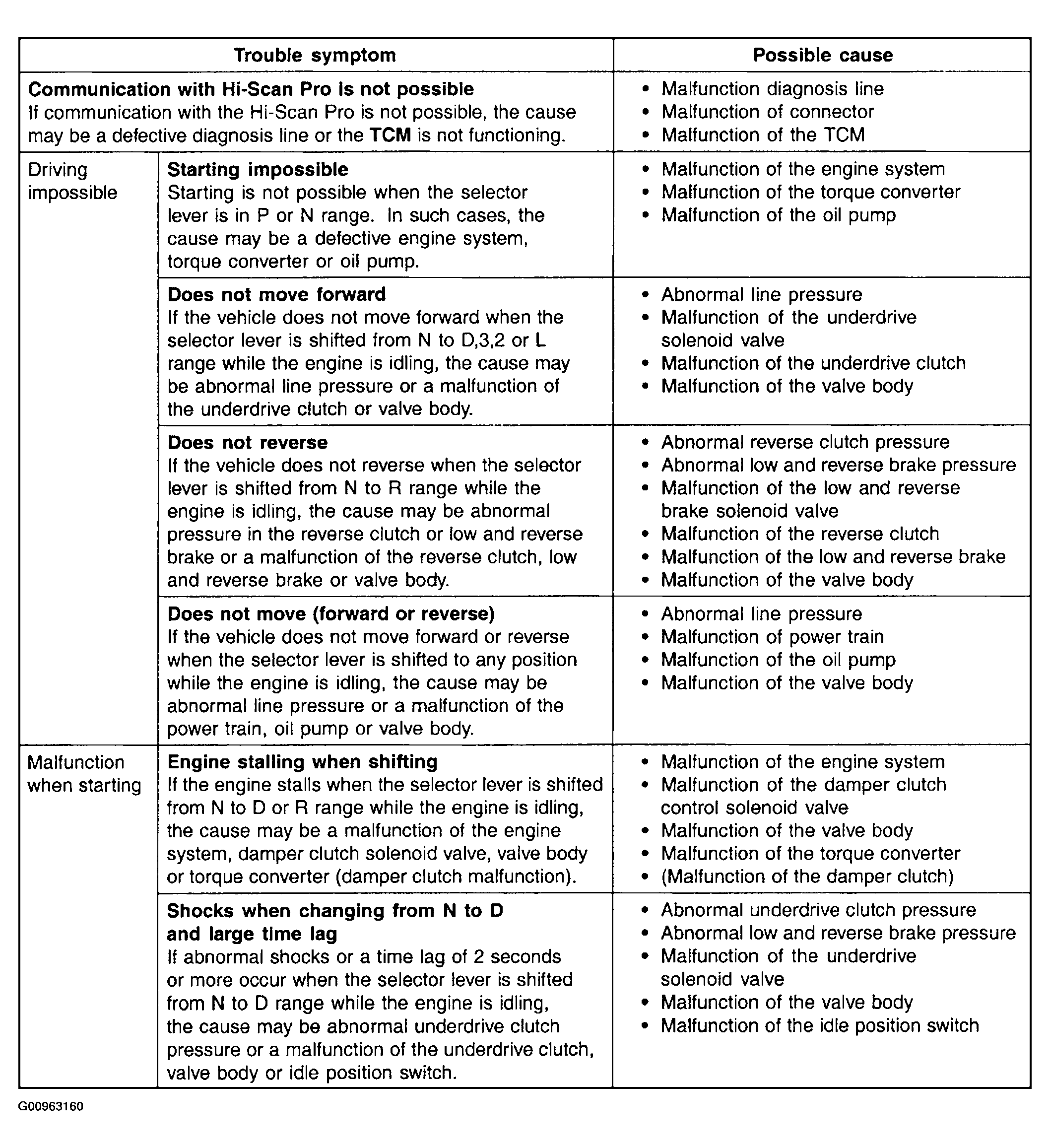

Fig 3: Inspection Chart For Trouble Symptoms (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
