Automatic Transaxle System
>>
Automatic Transaxle Hydraulic Circuit
>>
First
Automatic Transaxle Hydraulic Circuit: First
WARNING:
This page is about a different variant/trim than selected.

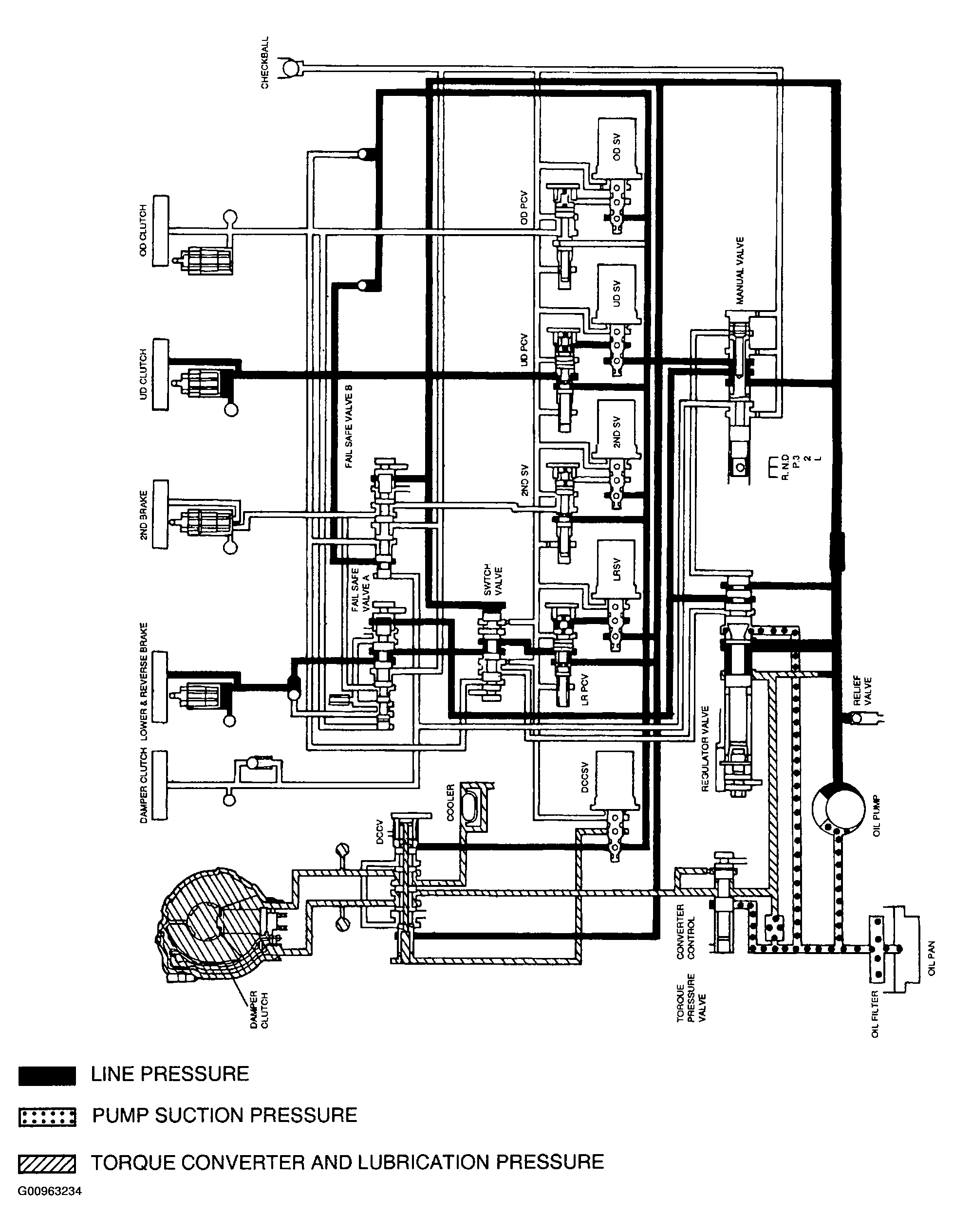

Fig 1: Identifying Hydraulic Circuit In First Gear
Courtesy of HYUNDAI MOTOR CO.
