External Wiring Diagram (TCS)

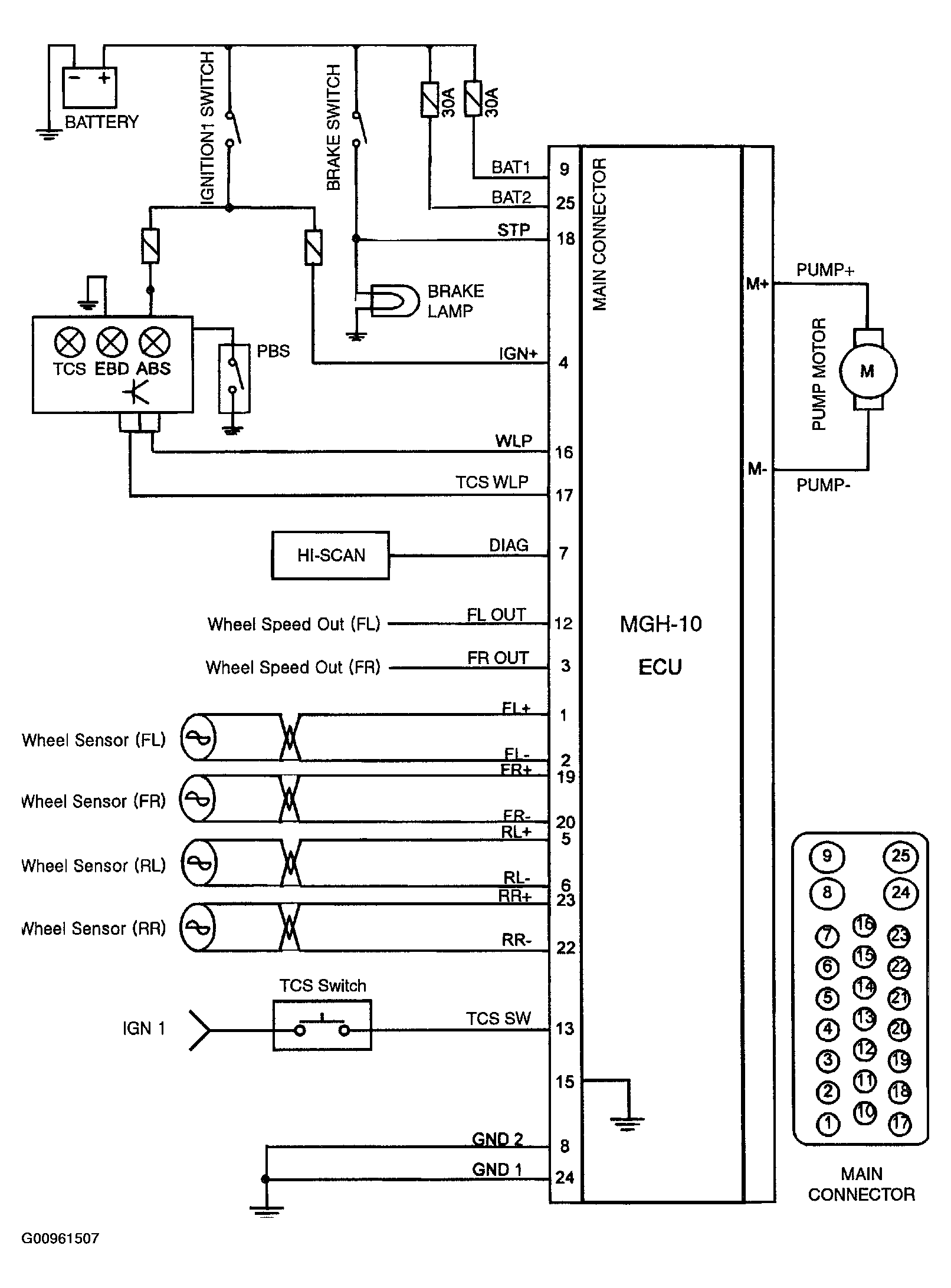

Fig 1: TCS External Wiring Diagram

G00961507

Courtesy of HYUNDAI MOTOR CO.
