With Air Bag

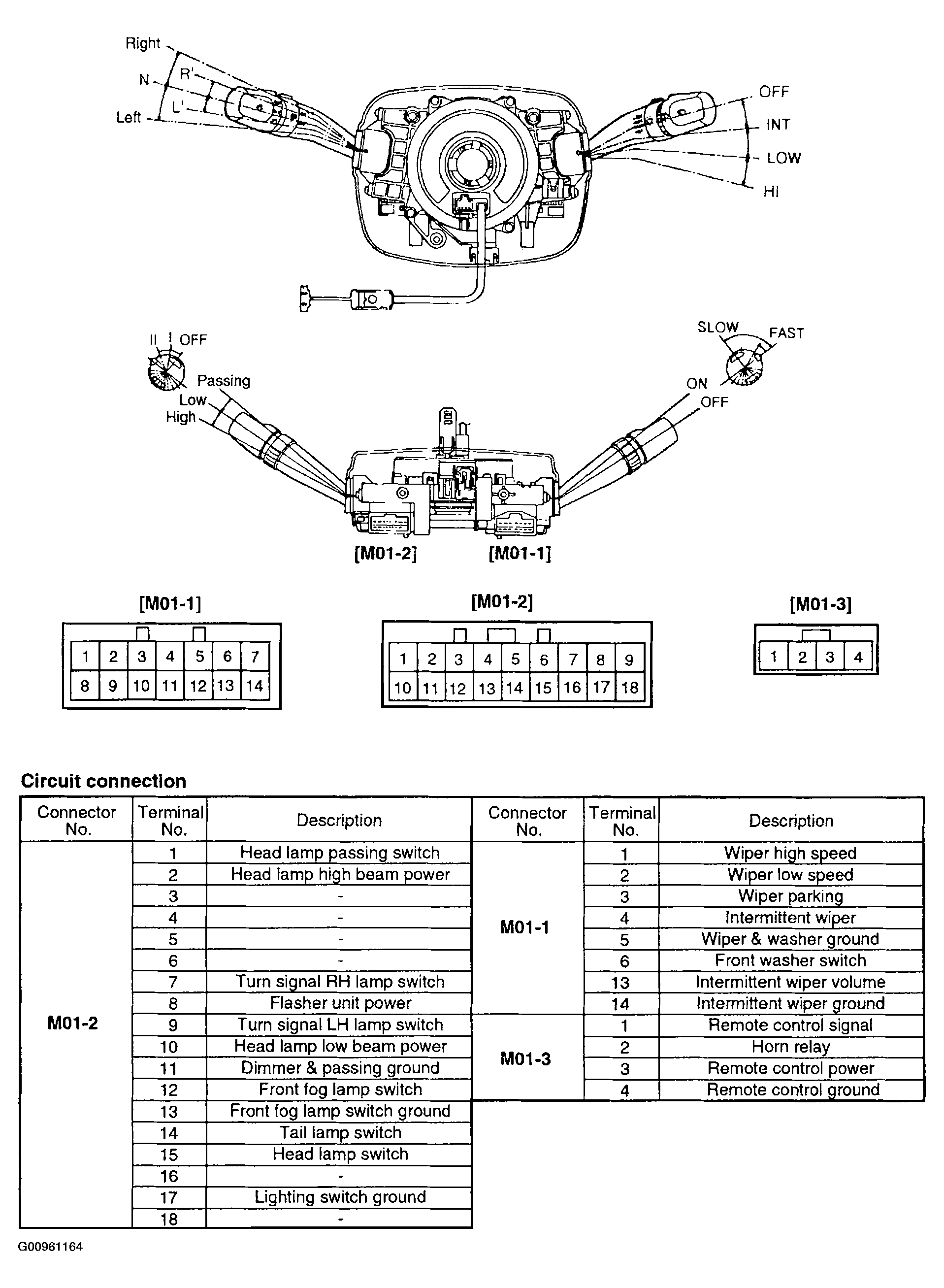

Fig 1: Multifunction Switch Components With Air Bag

G00961164

Courtesy of HYUNDAI MOTOR CO.
