Specifications (A/T)

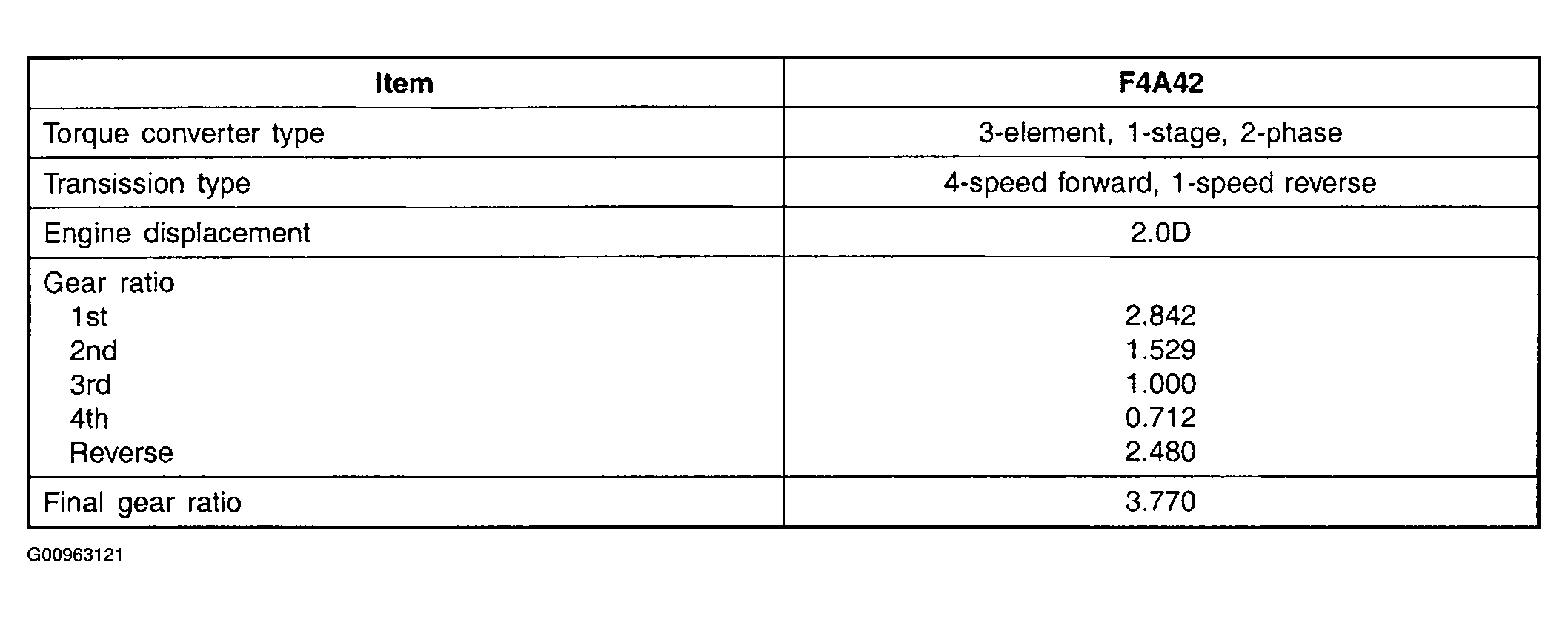

Fig 1: General Automatic Transaxle Specification Table

G00963121

Courtesy of HYUNDAI MOTOR CO.
