Inspection Procedure 8

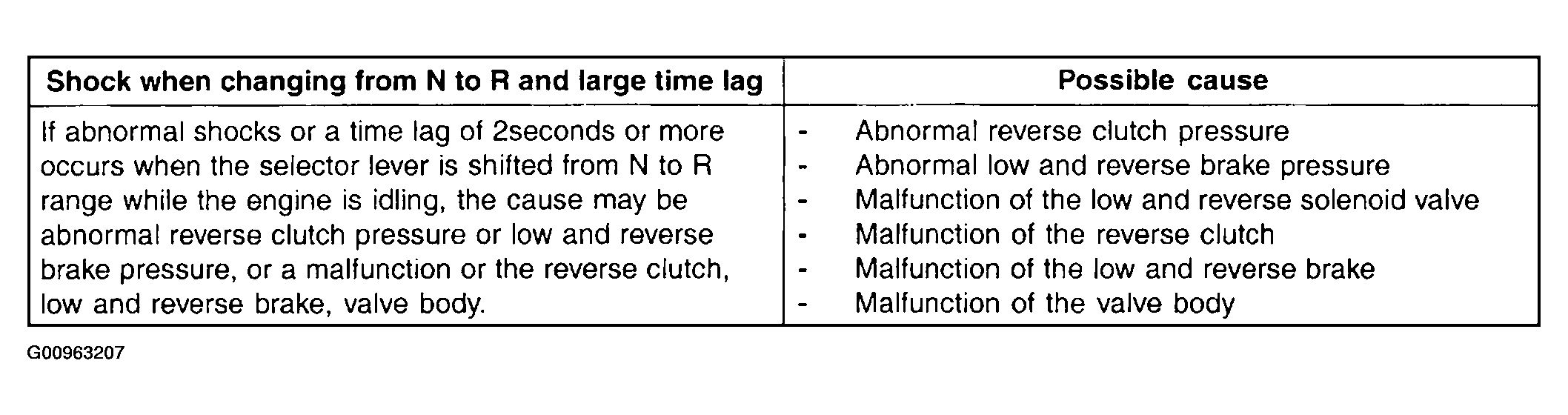

Fig 1: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Possible Causes Table
G00963207Courtesy of HYUNDAI MOTOR CO.

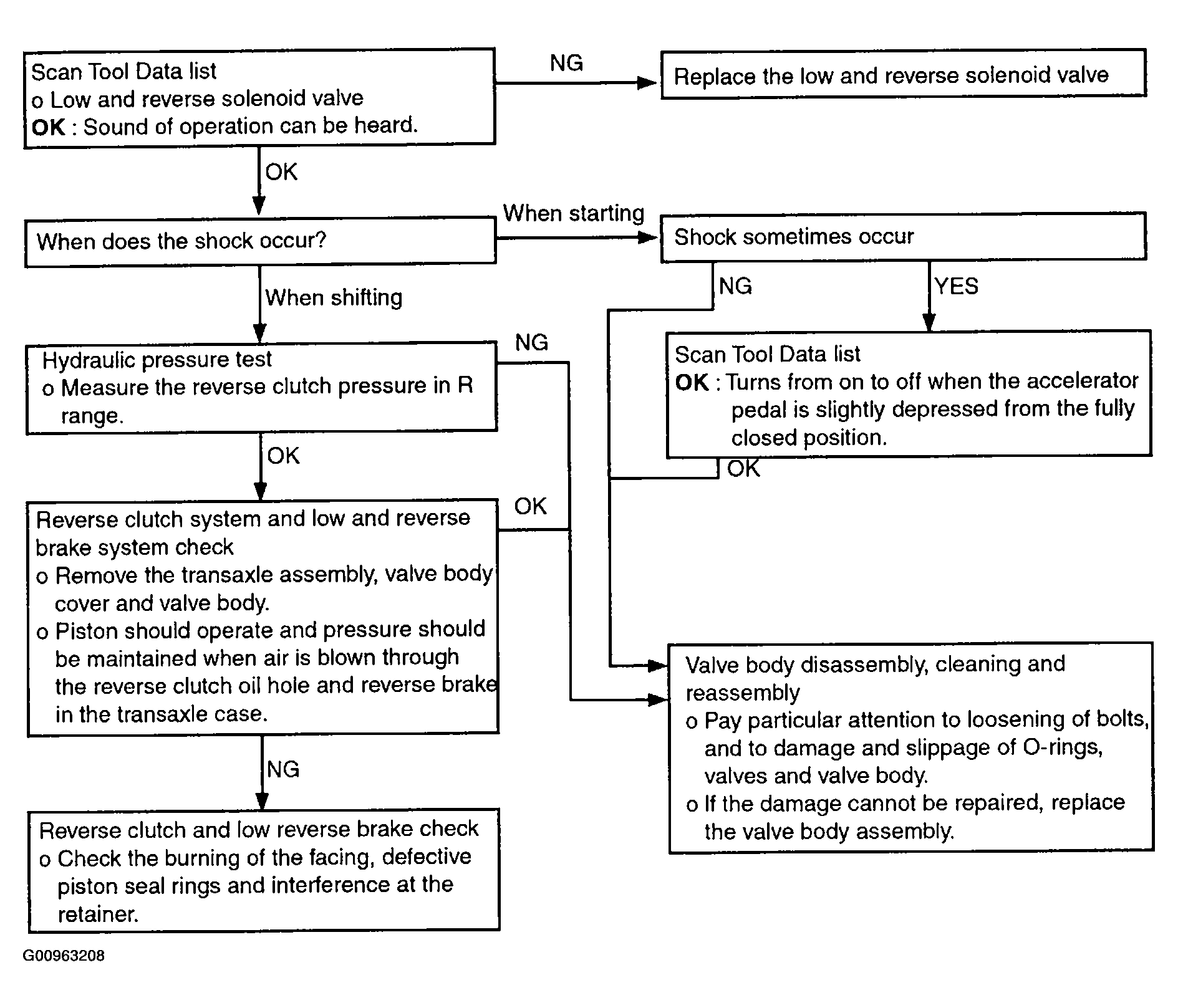

Fig 2: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Diagnostic Flow Chart
G00963208Courtesy of HYUNDAI MOTOR CO.
