Inspection Procedure 4

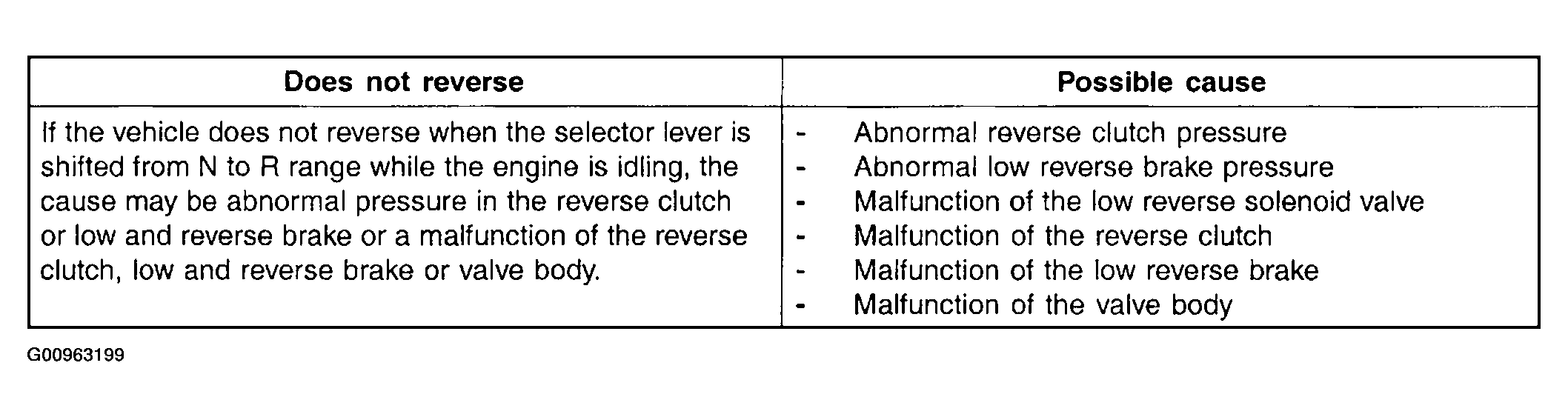

Fig 1: Vehicle Will Not Reverse Possible Causes Table

G00963199

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart

G00963200

Courtesy of HYUNDAI MOTOR CO.
