Power Steering Oil Pump: Components

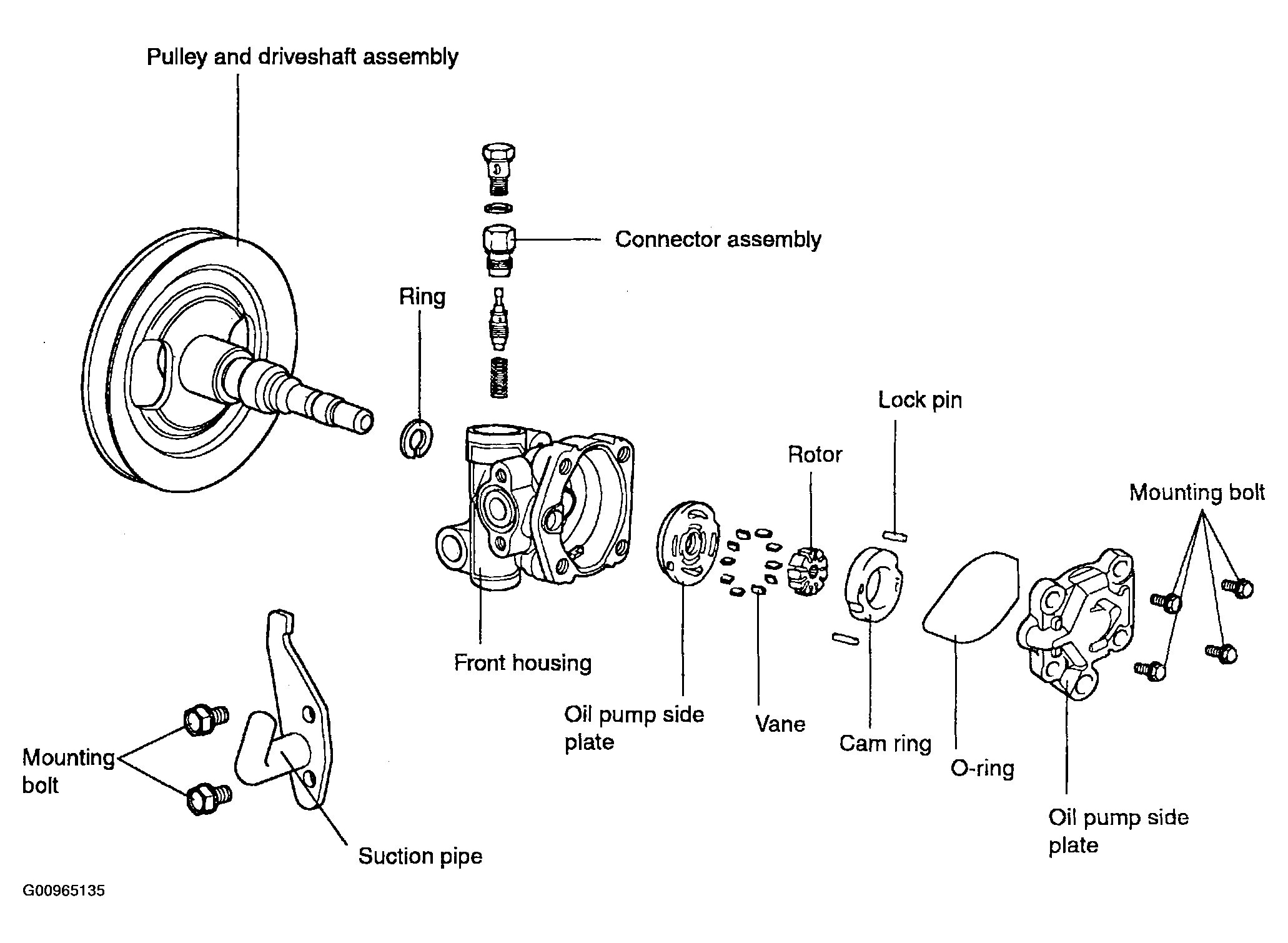

Fig 1: Power Steering Oil Pump Components

G00965135

Courtesy of HYUNDAI MOTOR CO.
