Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
DTC P0760: Shift Control Solenoid Valve C
>>
Troubleshooting Flow
Troubleshooting Flow
WARNING:
This page is about a different variant/trim than selected.

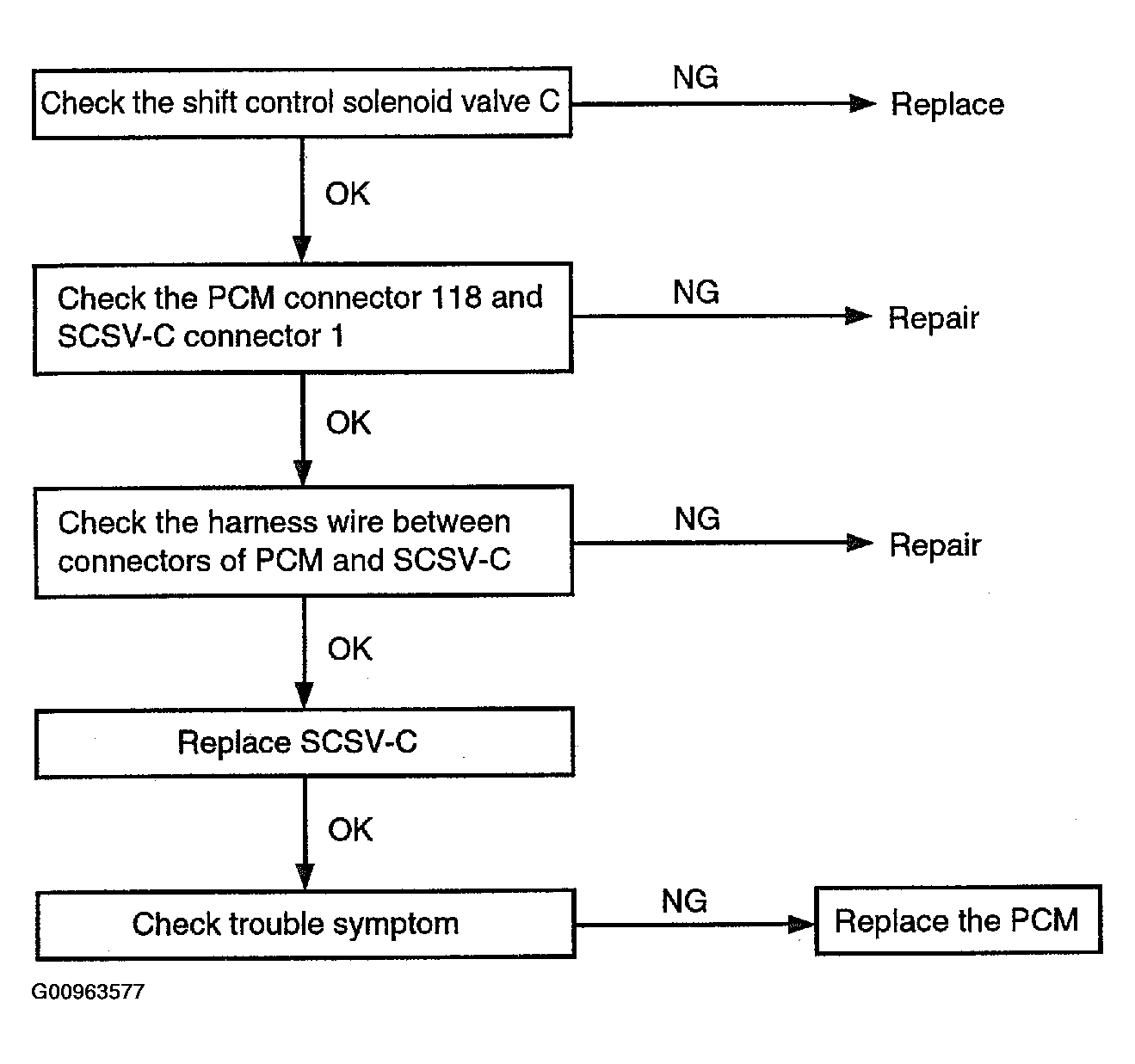

Fig 1: DTC P0760 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
