Compressor Configuration

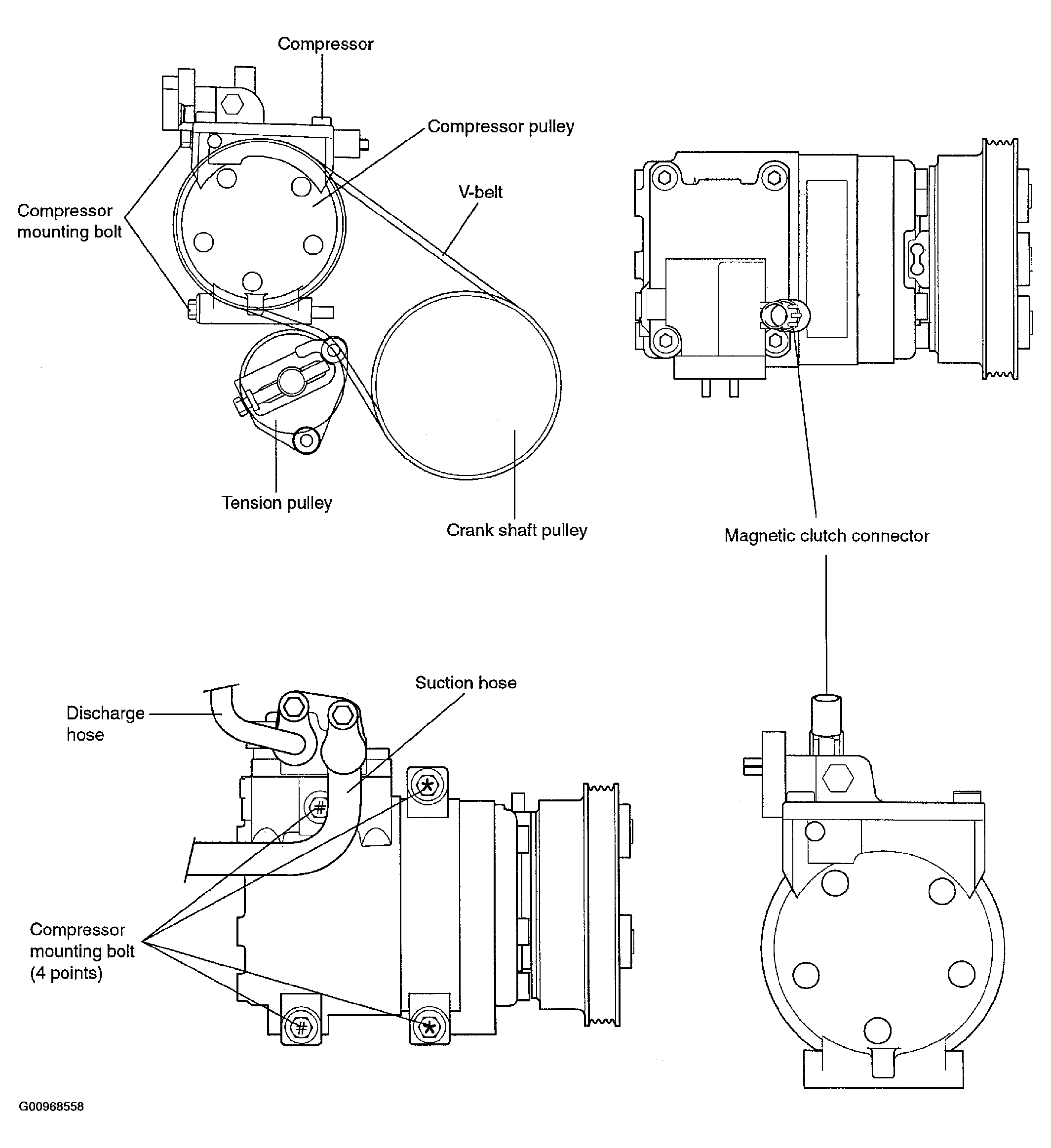

Fig 1: Compressor Configuration

G00968558

Courtesy of HYUNDAI MOTOR CO.

CAUTION: '*' Marked bolt should be tightened first.
