Home >> Hyundai >> 2003 >> Accent Base >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Lubrication System >> 1.6L 4-Cylinder Engine >> Engine Block >> Engine Mounts >> Components

Engine Mounts: Components

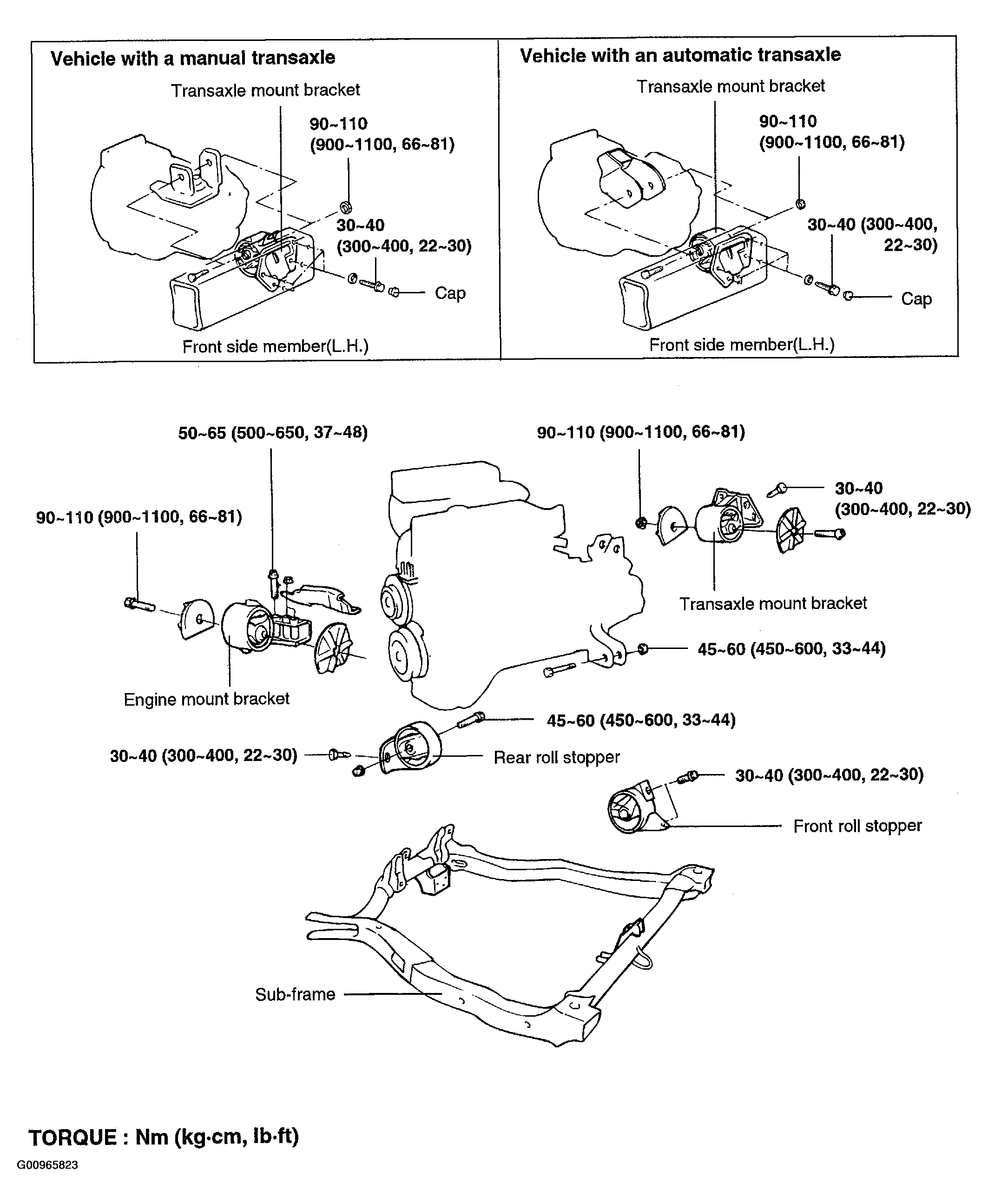

Fig 1: Engine Mount Components

G00965823

Courtesy of HYUNDAI MOTOR CO.
