Tail Lamp Auto Cut

Use illustration for timing wave form pattern. See Fig 1 .

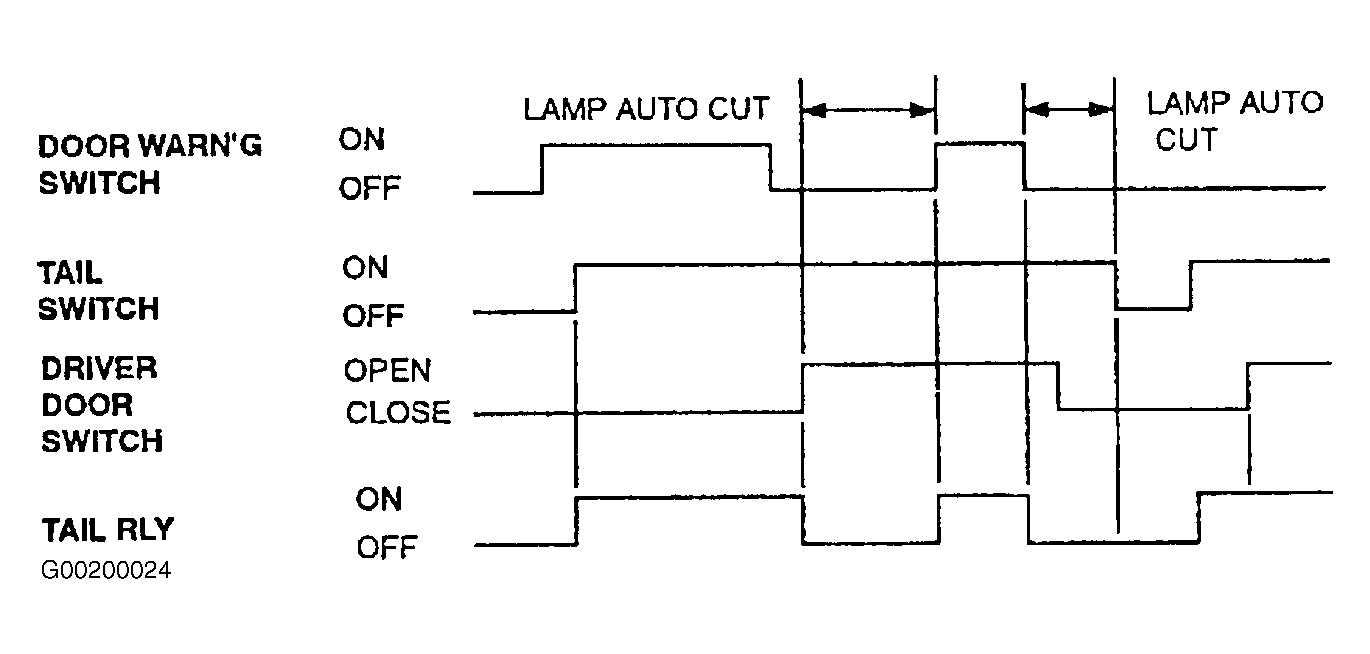

Fig 1: Checking Tail Lamp Auto Cut

G00200024

Courtesy of HYUNDAI MOTOR CO.
