Inspection Procedures For Diagnostic Trouble Codes
>>
DTC P1723: A/T Control Relay System
DTC P1723: A/T Control Relay System

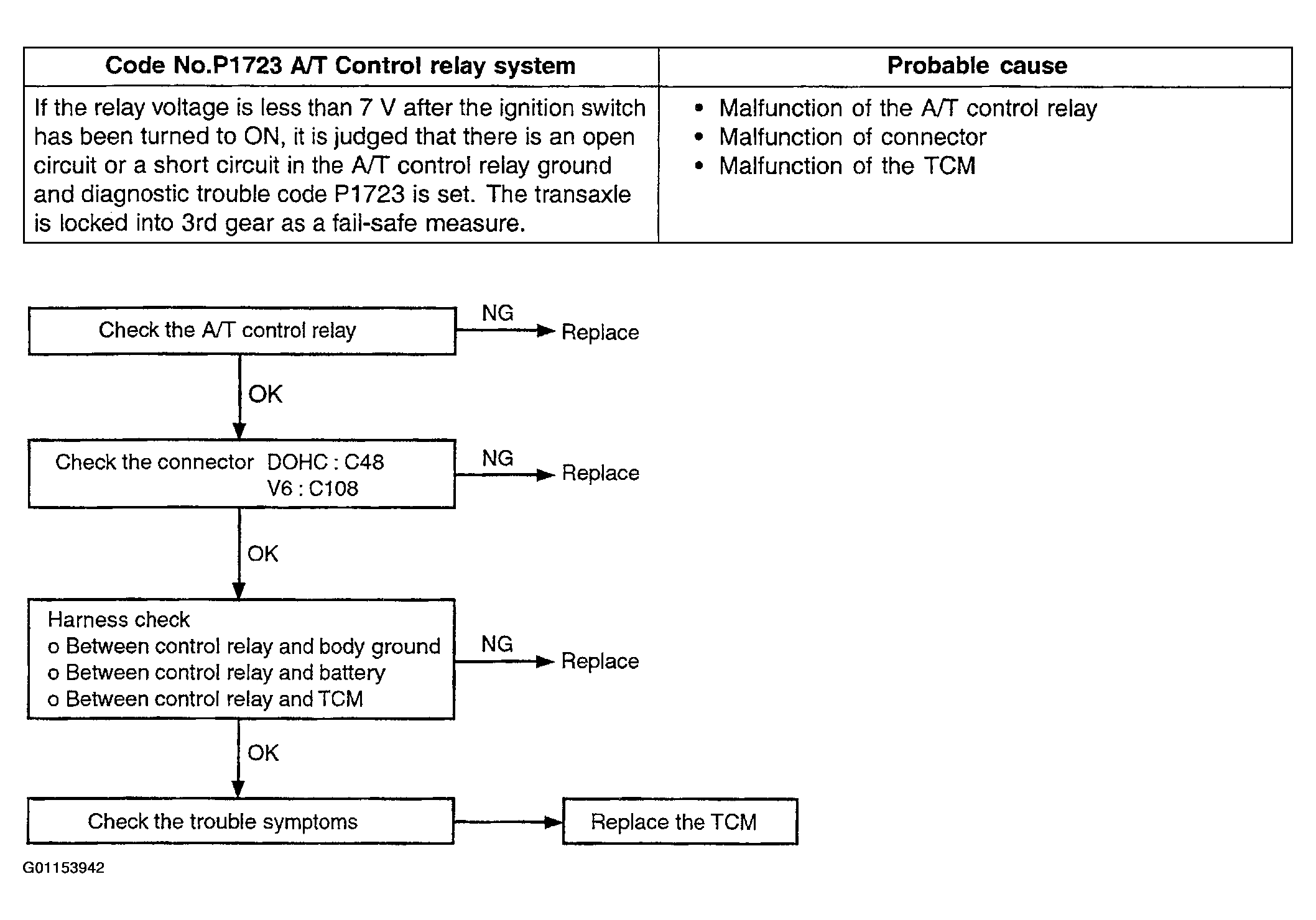

Fig 1: DTC P1723 Probable Causes & Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
