Specifications (A/T)

WARNING: This page is about a different variant/trim than selected.

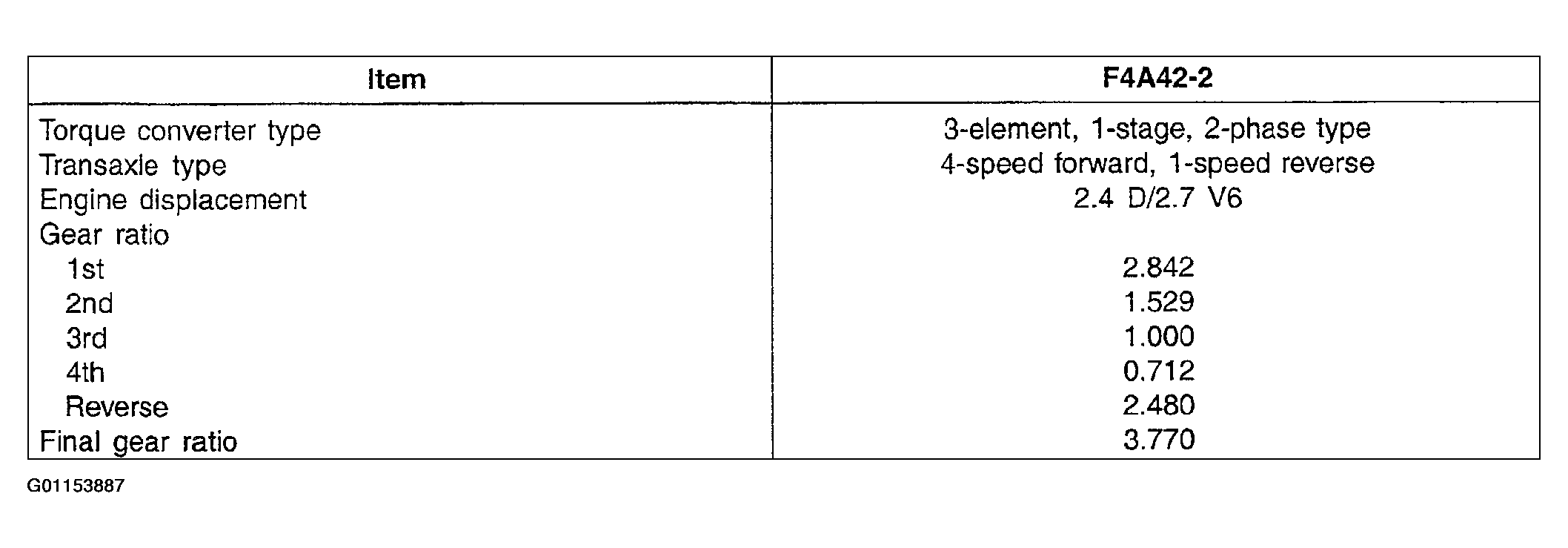

Fig 1: General Automatic Transaxle Specifications
G01153887Courtesy of HYUNDAI MOTOR CO.
