Inspection Procedure 12

WARNING: This page is about a different variant/trim than selected.

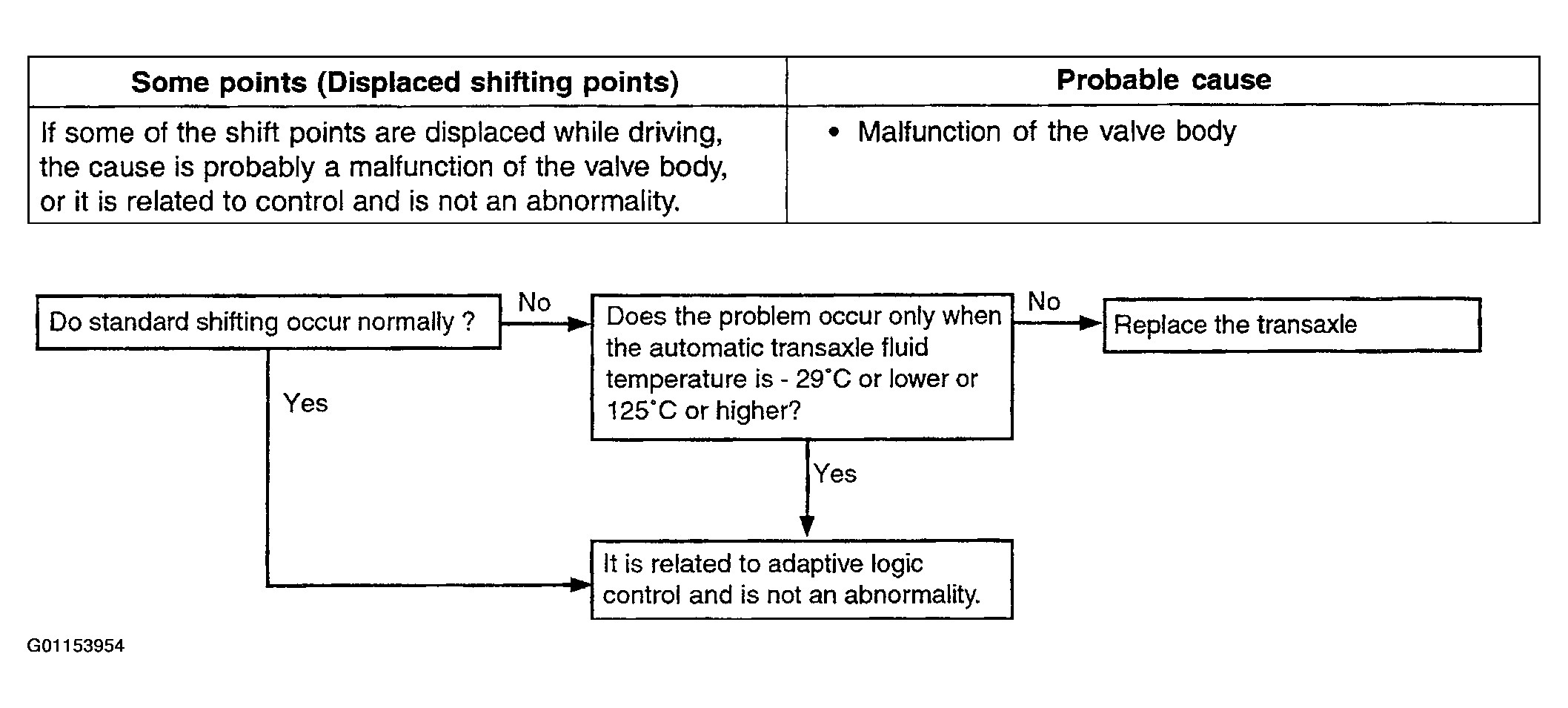

Fig 1: Some Points (Displaced Shifting Points), Possible Causes Table & Flow Chart
G01153954Courtesy of HYUNDAI MOTOR CO.
