Signal I/O For Each Control Feature

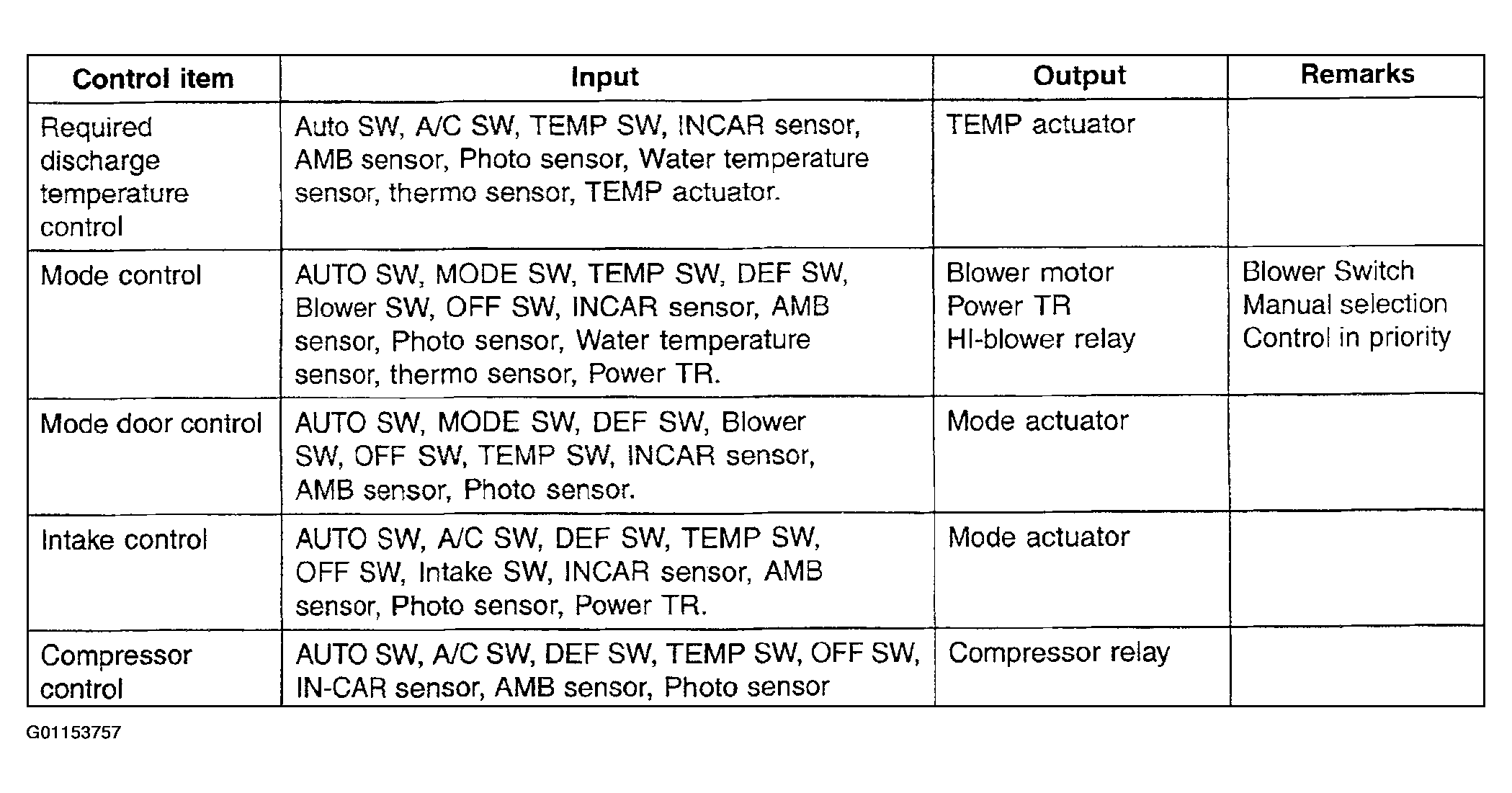

Fig 1: Control Feature Input & Output Table
G01153757Courtesy of HYUNDAI MOTOR CO.
