DTC P0710: Oil Temperature Sensor System

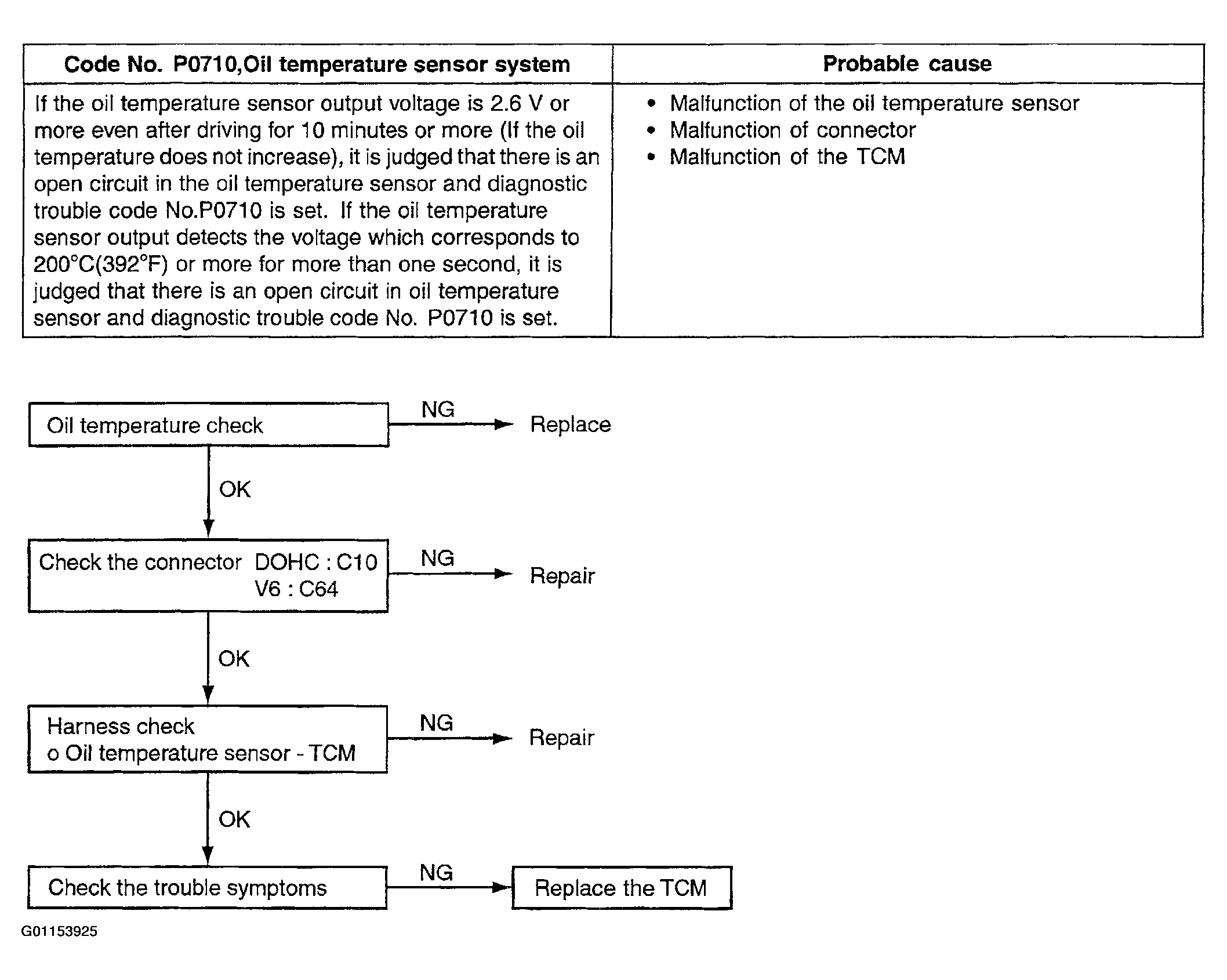

Fig 1: DTC P0710 Probable Causes & Diagnostic Flow Chart

G01153925

Courtesy of HYUNDAI MOTOR CO.

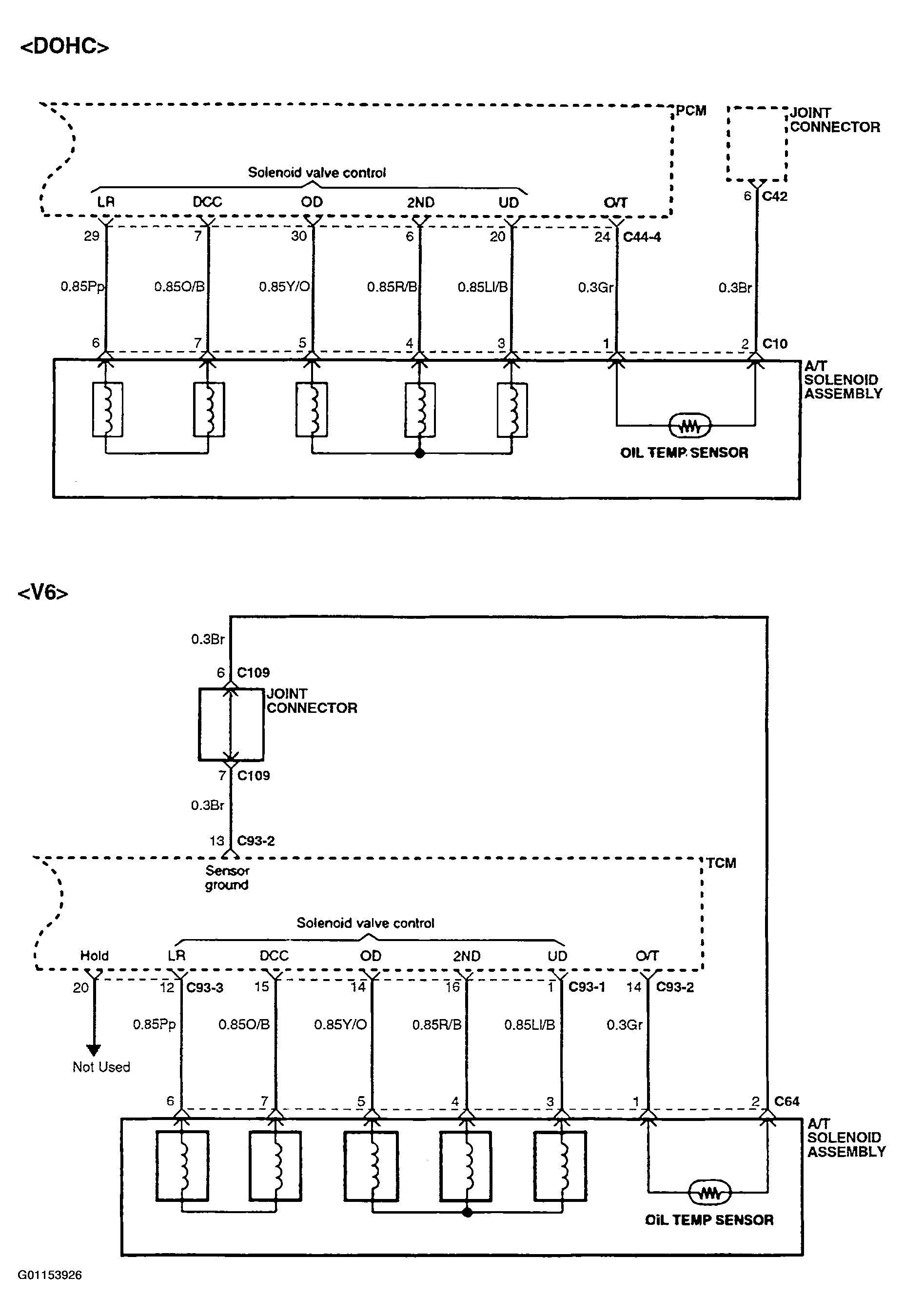

Fig 2: Oil Temperature Sensor Circuit

G01153926

Courtesy of HYUNDAI MOTOR CO.
