Seat Belt Warning

Time Specification:

T1: 5-7 sec.

T2: 0.44-0.46 sec.

T3: 0.2-0.4 sec.

Use illustration for timing wave form pattern. See Fig 1 .

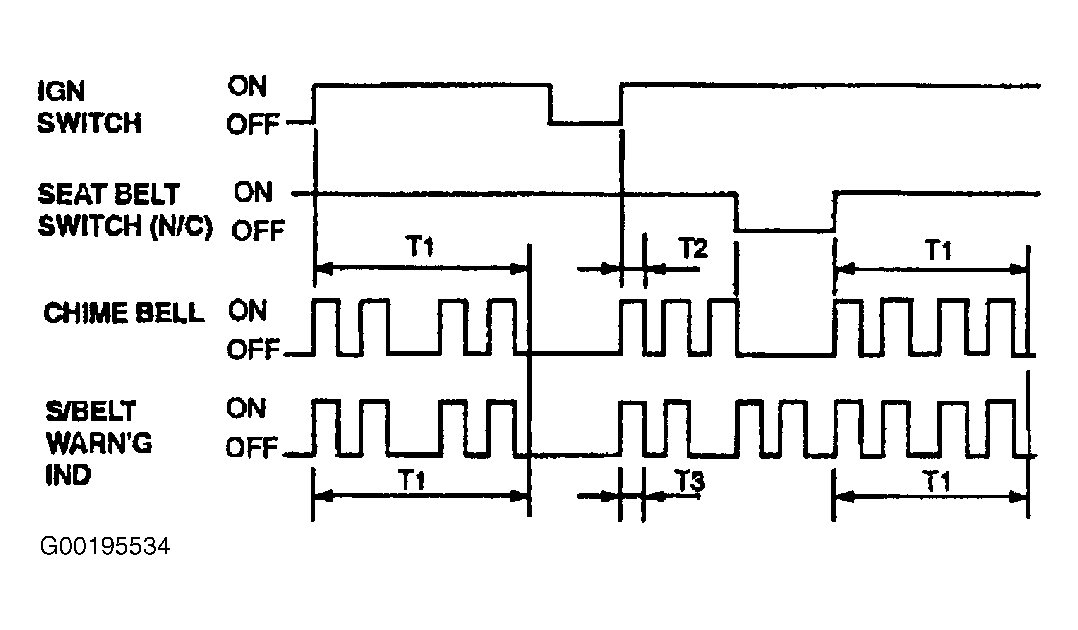

Fig 1: Checking Seat Belt Warning

Courtesy of HYUNDAI MOTOR CO.
