Inspection Procedure 7

WARNING: This page is about a different variant/trim than selected.

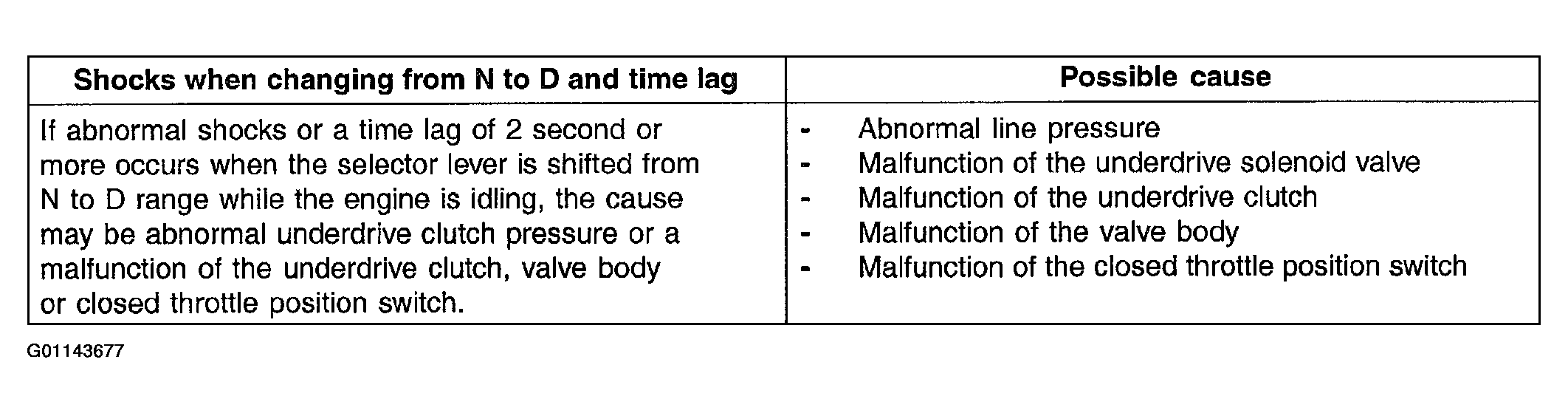

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag Possible Causes Table
G01143677Courtesy of HYUNDAI MOTOR CO.

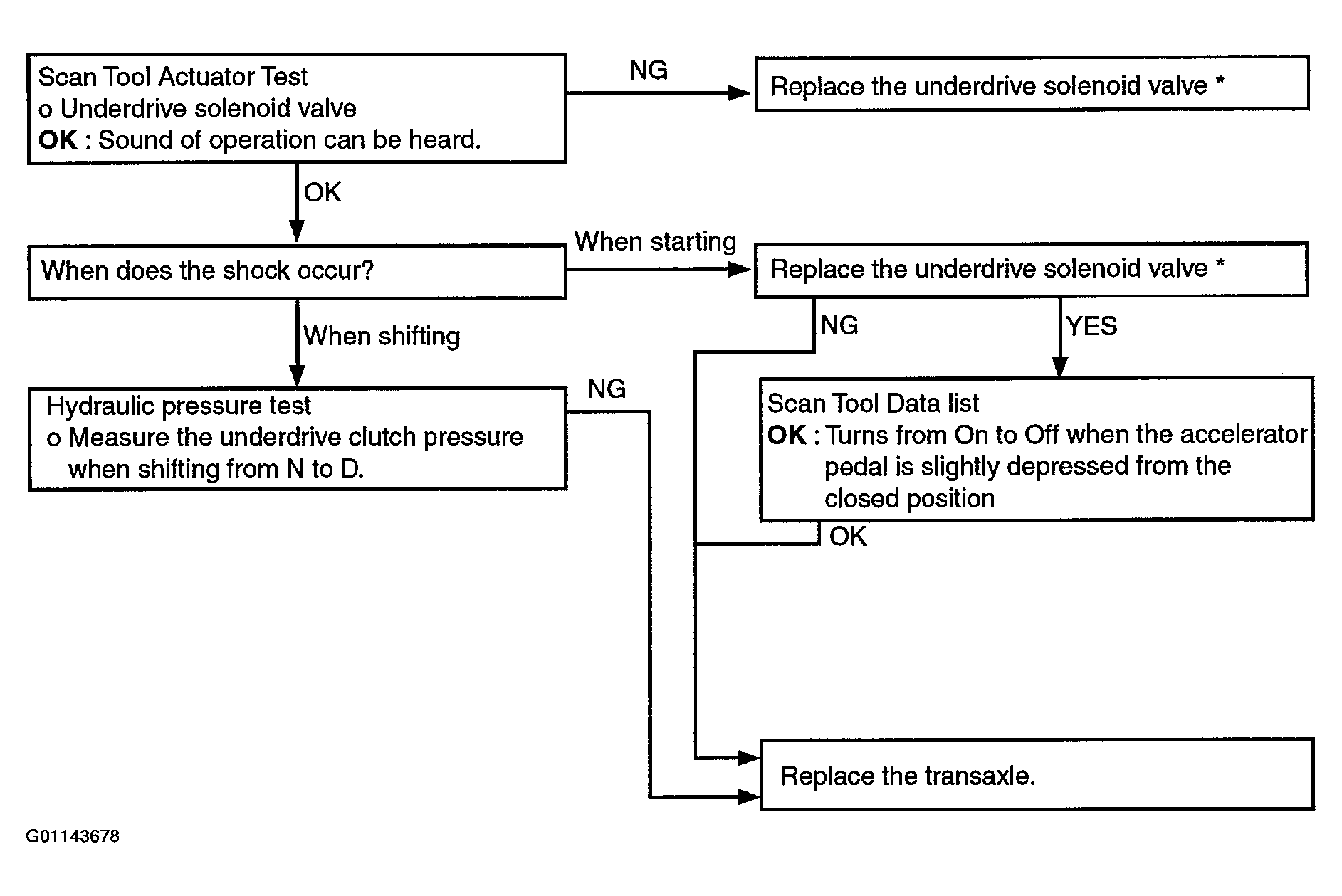

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag Diagnostic Flow Chart
G01143678Courtesy of HYUNDAI MOTOR CO.
