Inspection Procedure 6

WARNING: This page is about a different variant/trim than selected.

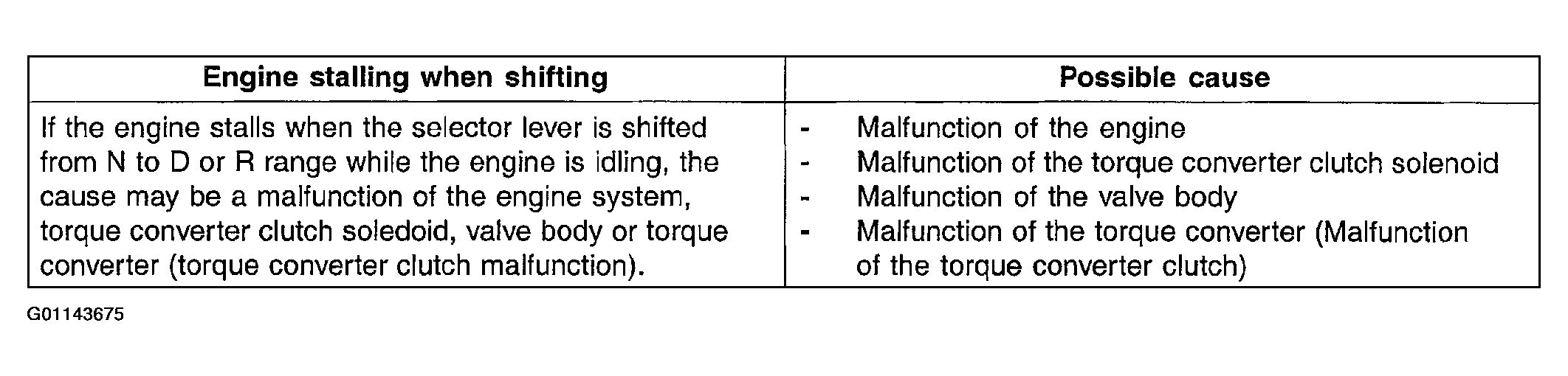

Fig 1: Engine Stalling When Shifting Possible Causes Table
G01143675Courtesy of HYUNDAI MOTOR CO.

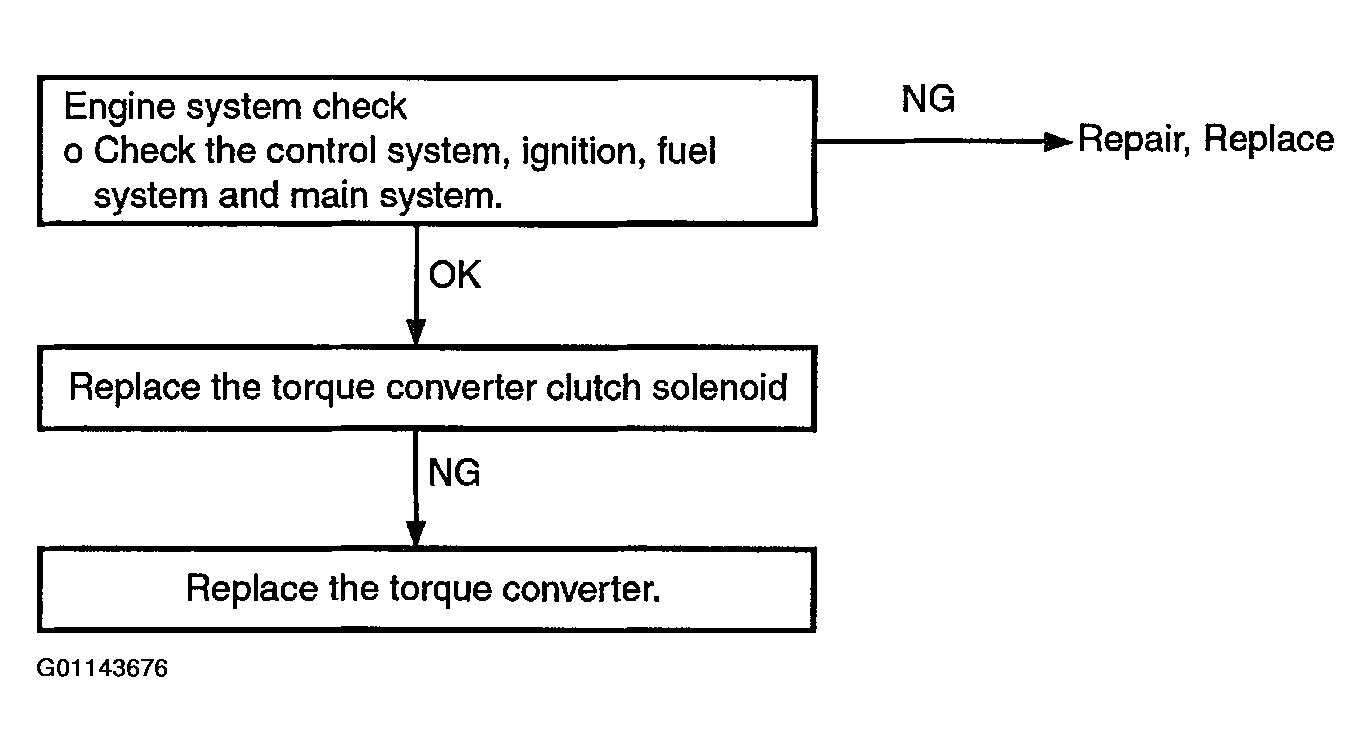

Fig 2: Engine Stalling When Shifting Diagnostic Flow Chart
G01143676Courtesy of HYUNDAI MOTOR CO.
