Inspection Procedure 5

WARNING: This page is about a different variant/trim than selected.

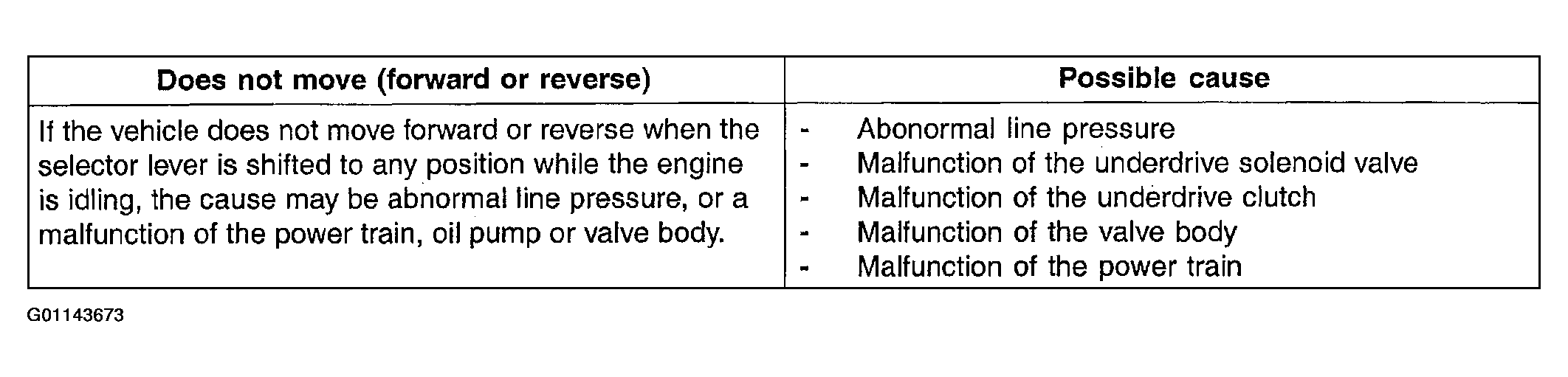

Fig 1: Vehicle Does Not Move Forward Or Reverse Possible Causes Table
G01143673Courtesy of HYUNDAI MOTOR CO.

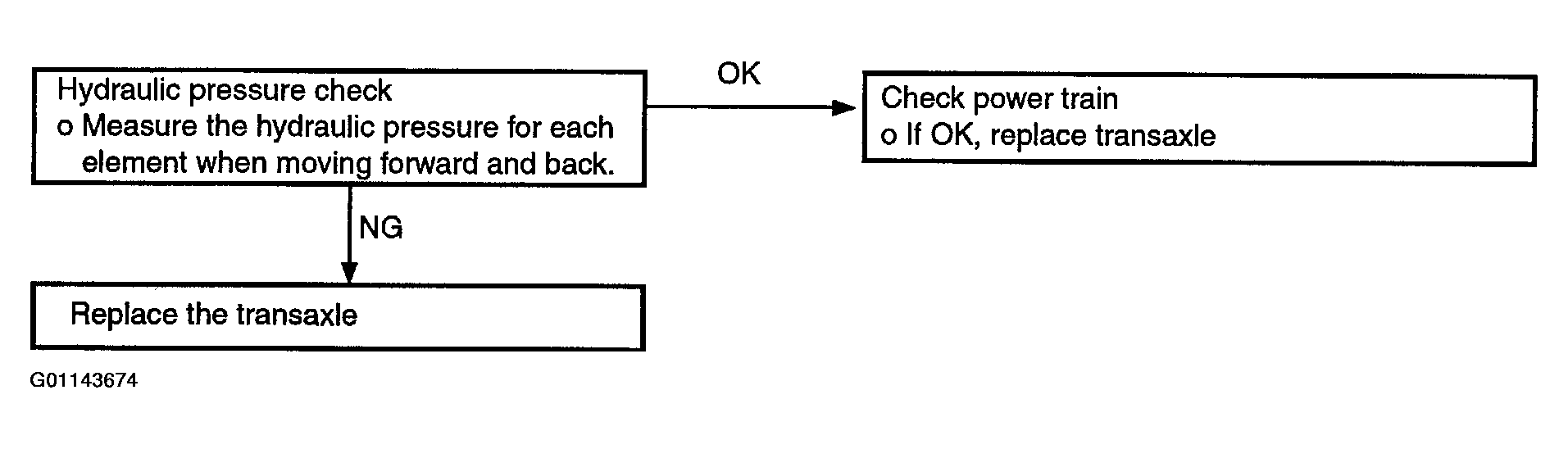

Fig 2: Vehicle Does Not Move Forward Or Reverse Diagnostic Flow Chart
G01143674Courtesy of HYUNDAI MOTOR CO.
