Inspection Procedure 15

WARNING: This page is about a different variant/trim than selected.

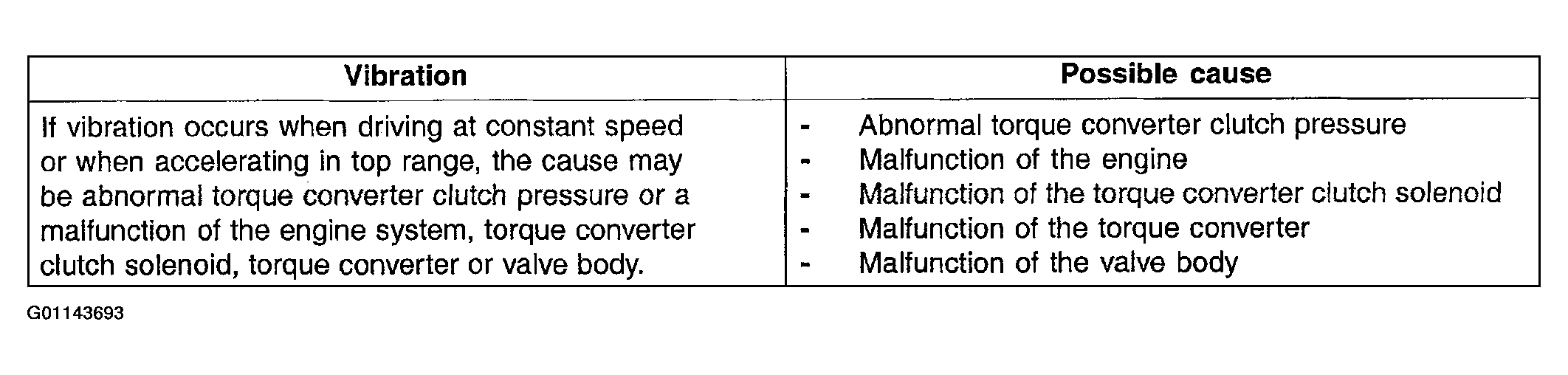

Fig 1: Vibration Possible Causes Table
G01143693Courtesy of HYUNDAI MOTOR CO.

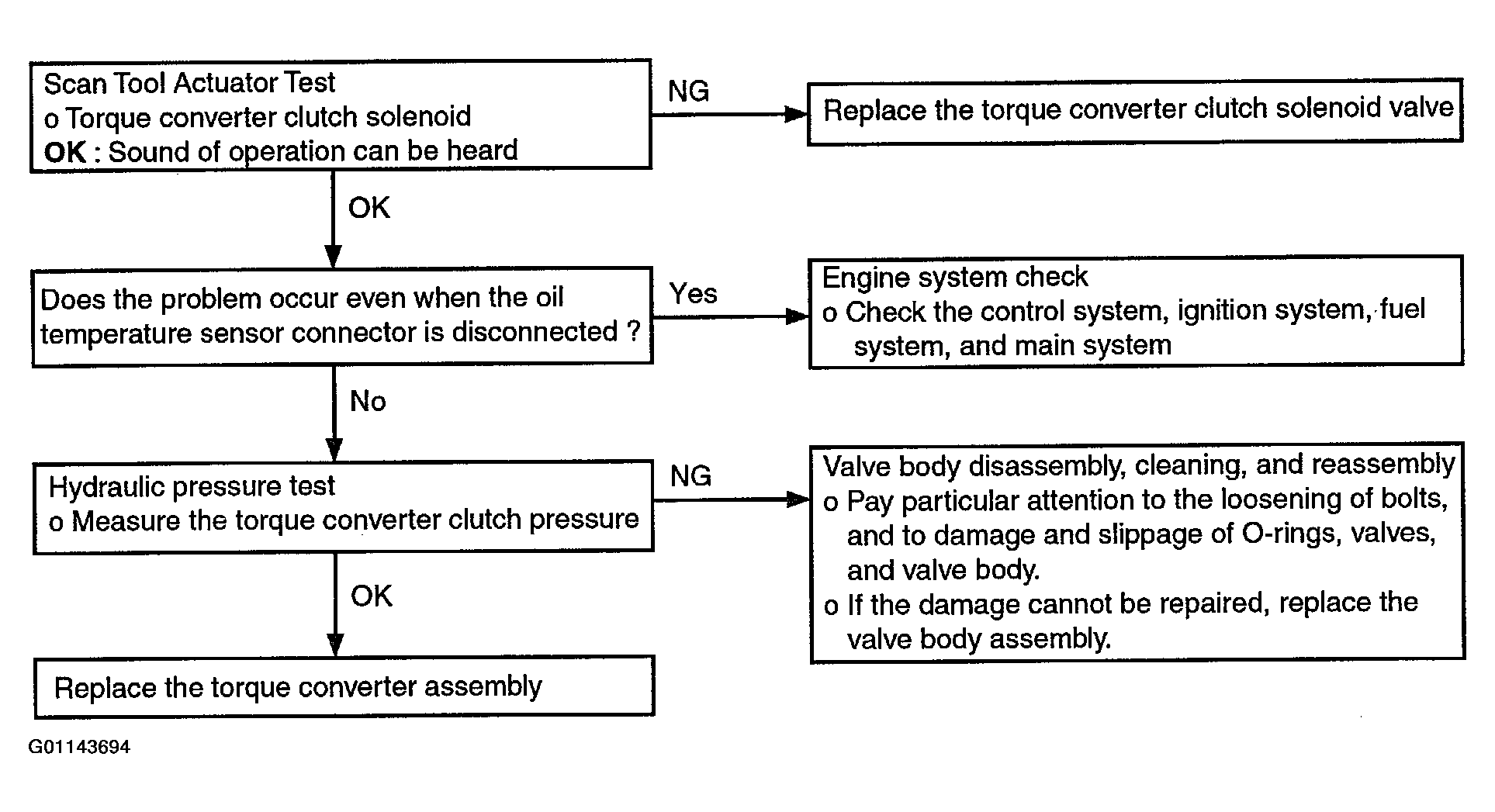

Fig 2: Vibration Diagnostic Flow Chart
G01143694Courtesy of HYUNDAI MOTOR CO.
