Inspection Procedure 10

WARNING: This page is about a different variant/trim than selected.

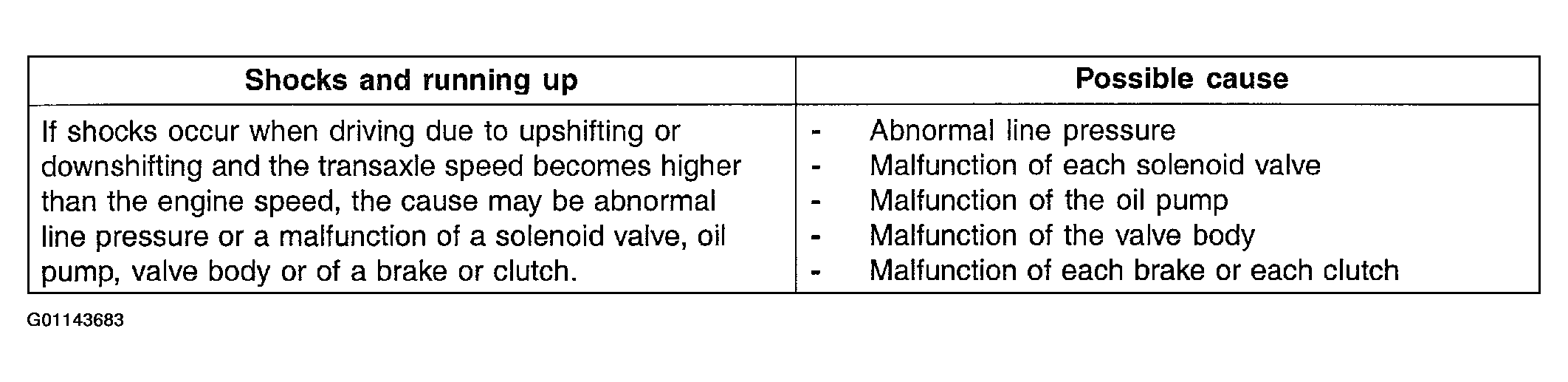

Fig 1: Shocks & Running Up Possible Causes Table
G01143683Courtesy of HYUNDAI MOTOR CO.

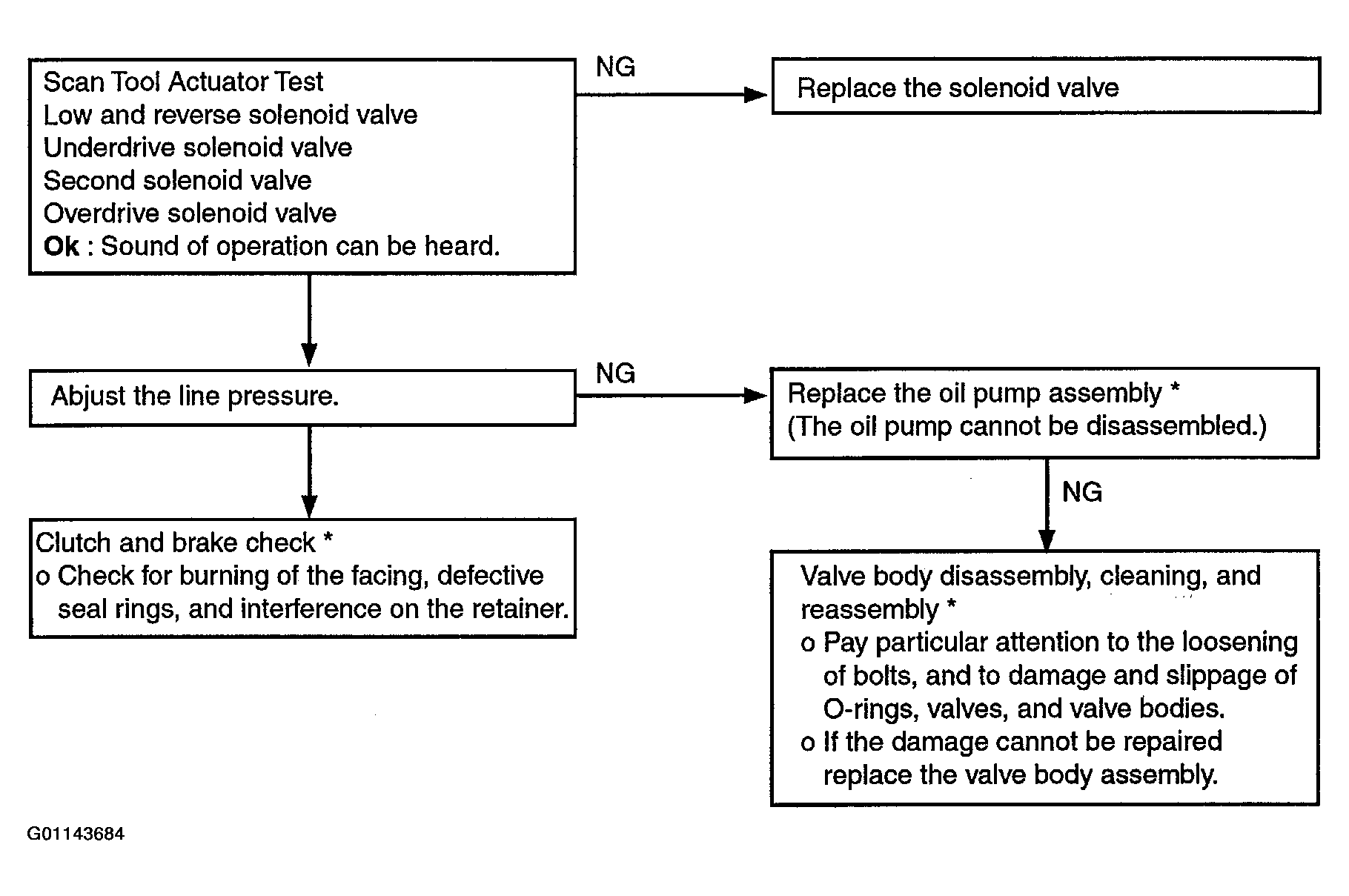

Fig 2: Shocks & Running Up Diagnostic Flow Chart
G01143684Courtesy of HYUNDAI MOTOR CO.
