Inspection Chart For Diagnosis Codes

WARNING: This page is about a different variant/trim than selected.

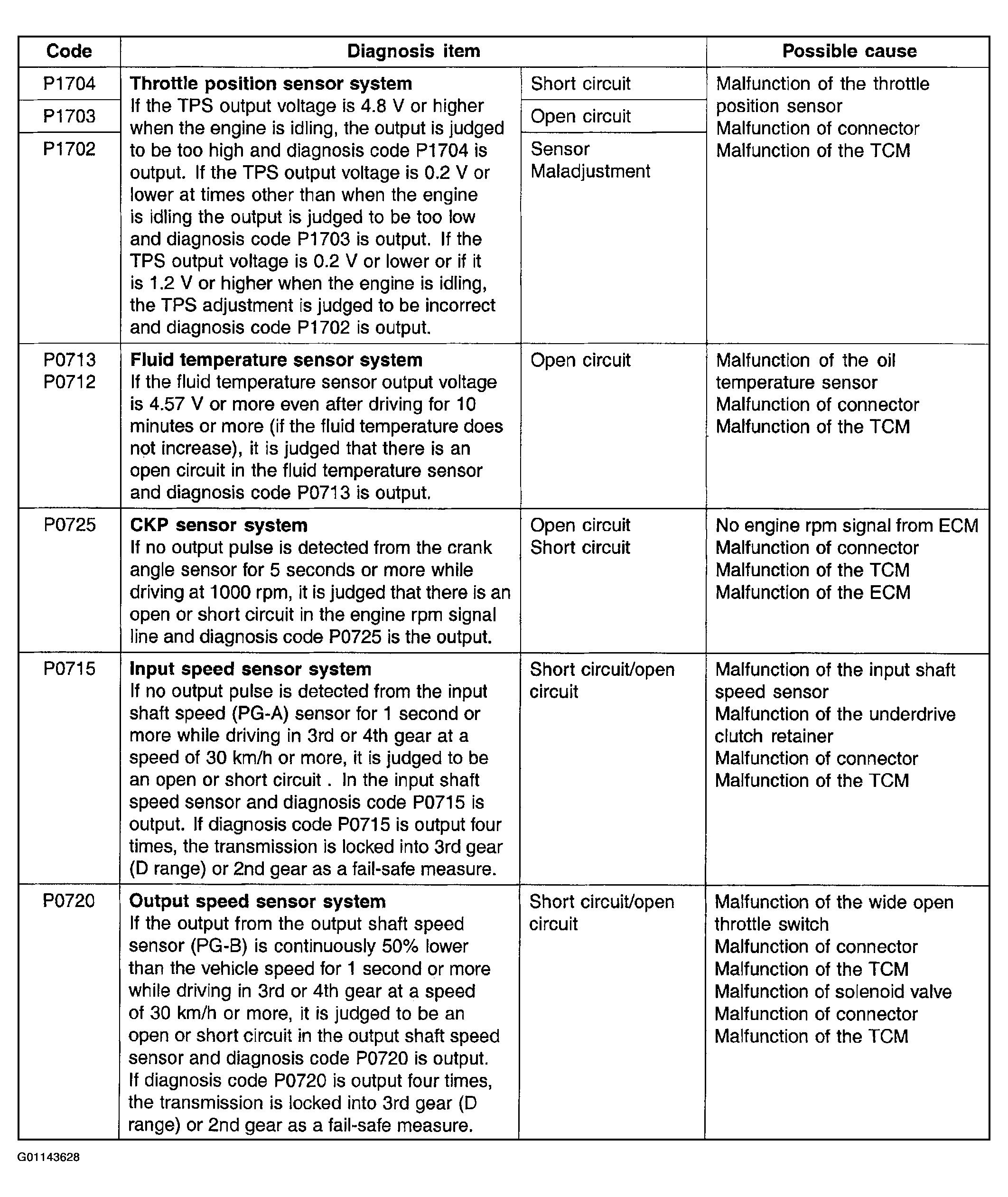

Fig 1: Inspection Chart For DTC (1 Of 4)
G01143628Courtesy of HYUNDAI MOTOR CO.

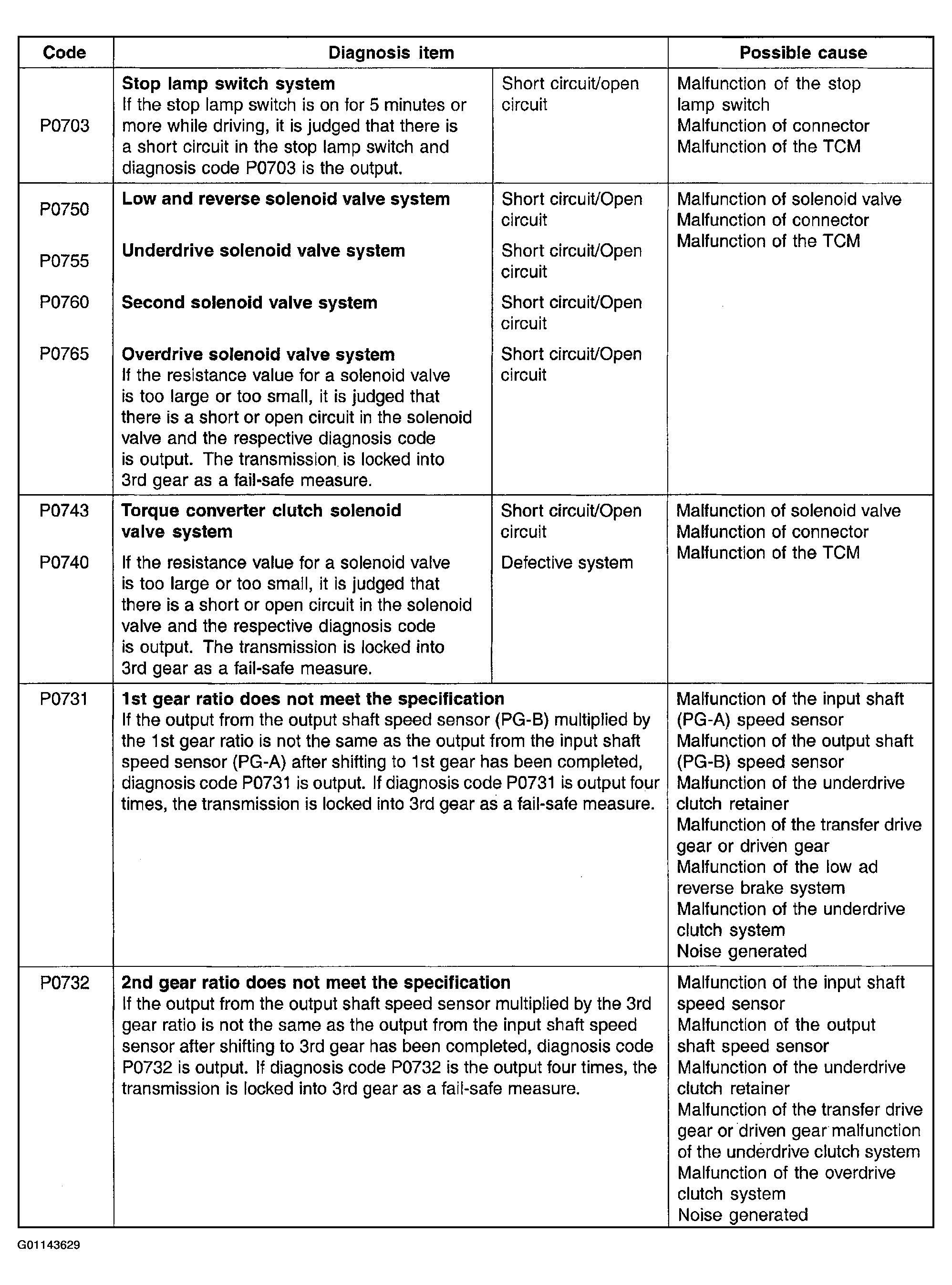

Fig 2: Inspection Chart For DTC (2 Of 4)
G01143629Courtesy of HYUNDAI MOTOR CO.

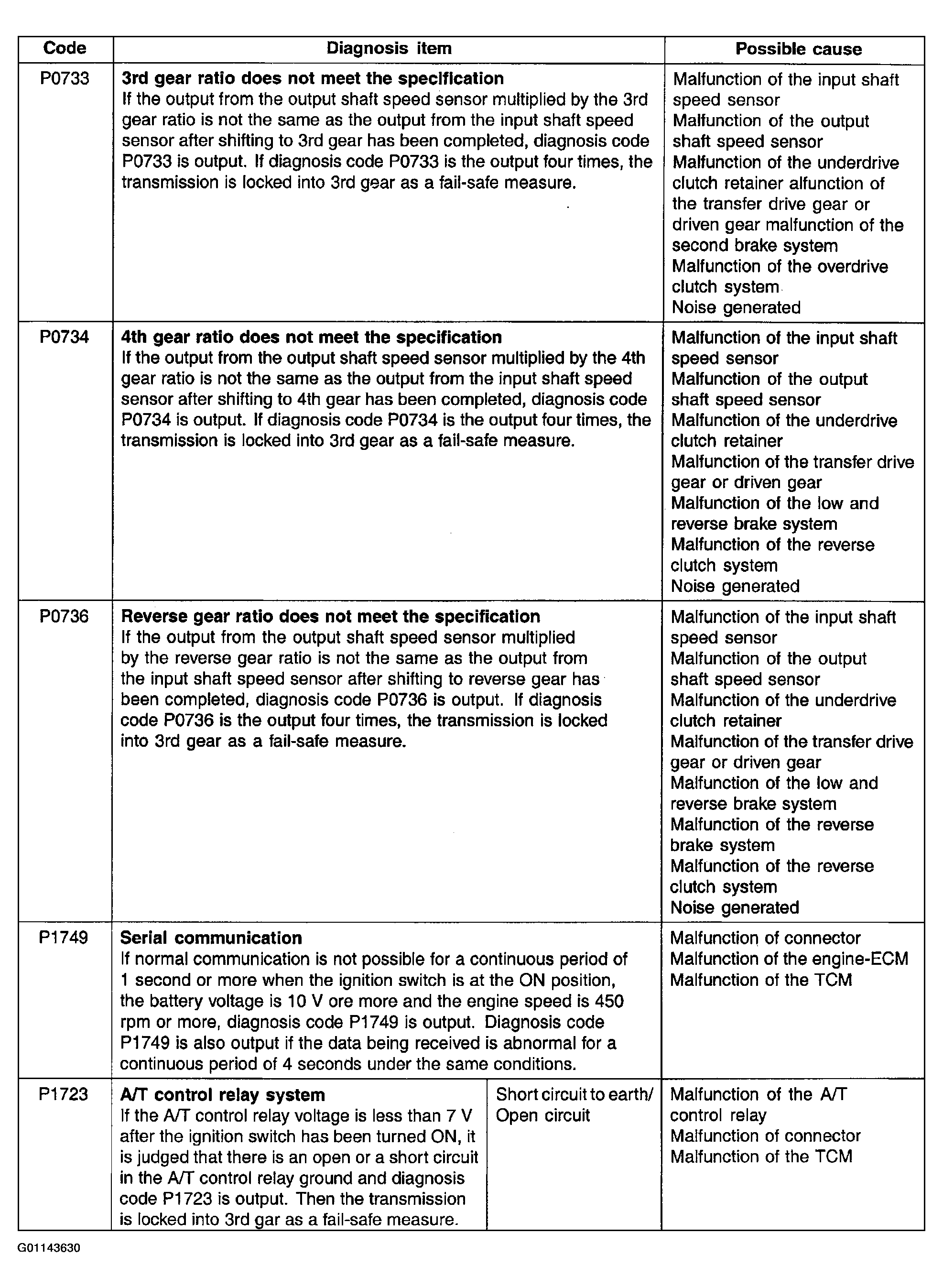

Fig 3: Inspection Chart For DTC (3 Of 4)
G01143630Courtesy of HYUNDAI MOTOR CO.

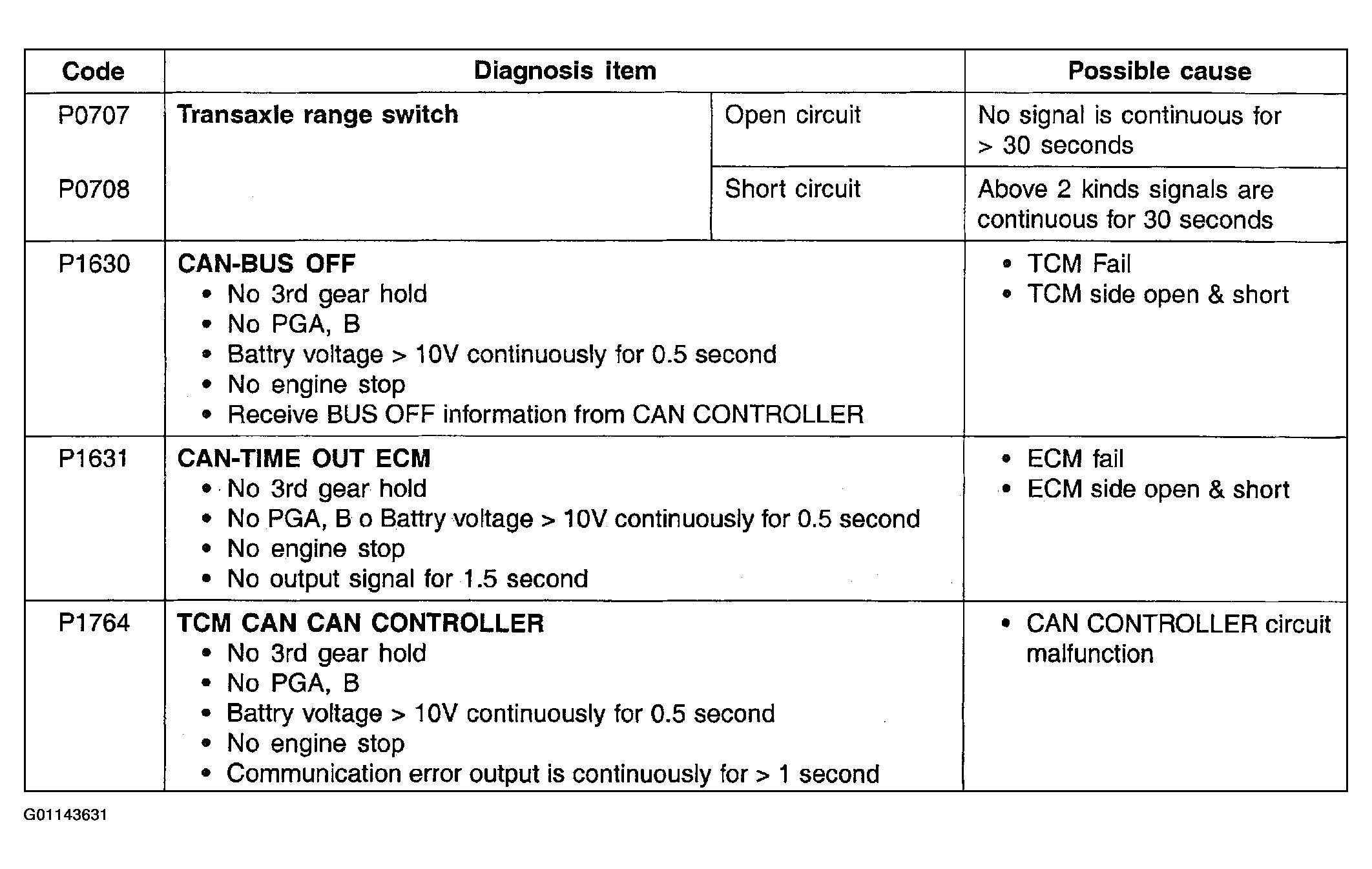

Fig 4: Inspection Chart For DTC (4 Of 4)
G01143631Courtesy of HYUNDAI MOTOR CO.
