Section 2 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Procedures For Diagnostic Trouble Codes
>>
Troubleshooting Flow
Troubleshooting Flow
WARNING:
This page is about a different variant/trim than selected.

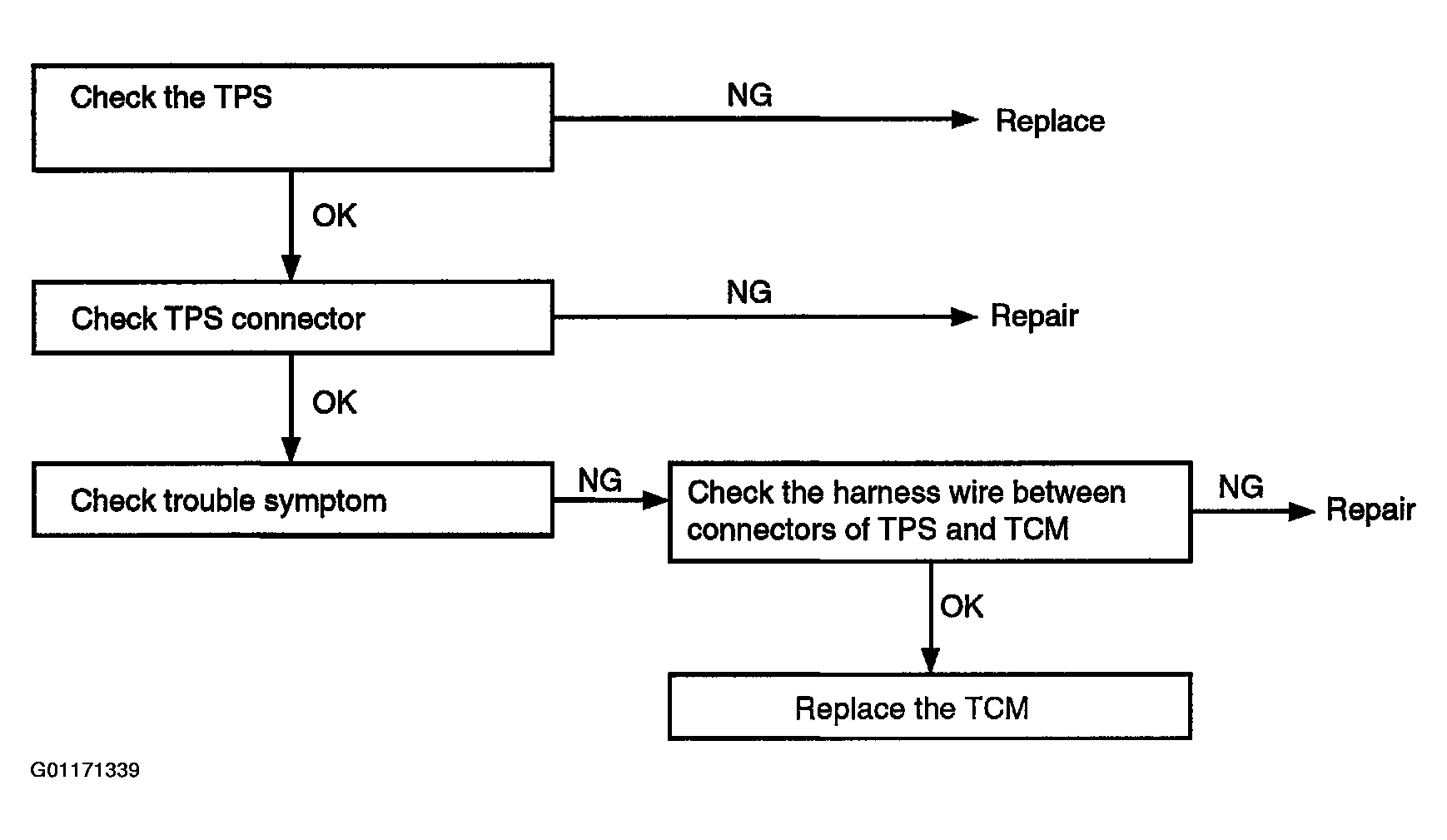

Fig 1: DTC P1703: Troubleshooting Flow
Courtesy of HYUNDAI MOTOR CO.
